Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb.
  2. Install the console retainers (2) to the headliner bracket.
  3. Push up on the console to secure it to the headliner.

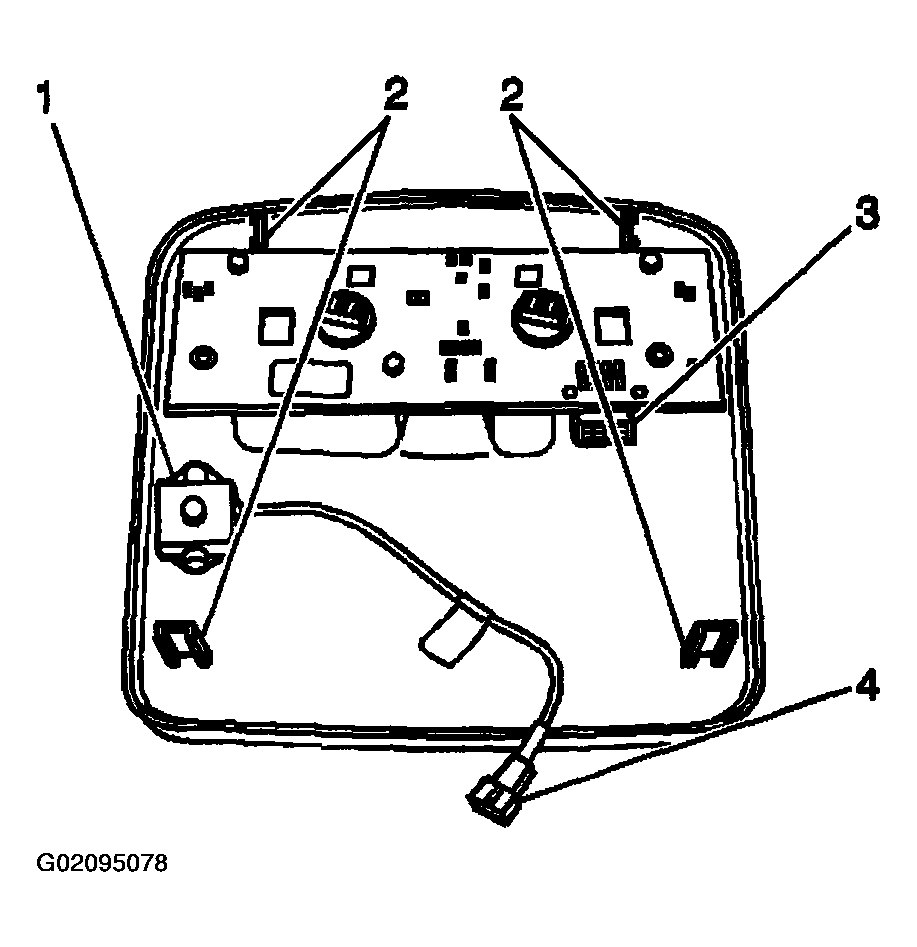

    Fig 1: Identifying Overhead Console Courtesy Lamp Retainers
    G02095078Courtesy of GENERAL MOTORS CORP.
