Section 582 (Lighting Systems)
›
Repair Instructions
›
Courtesy Lamp Replacement - Overhead Console
›
Removal Procedure
Removal Procedure
WARNING:
This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Pull down the overhead console to release the retainers (2) securing it to the headliner.
Twist the bulb to remove.

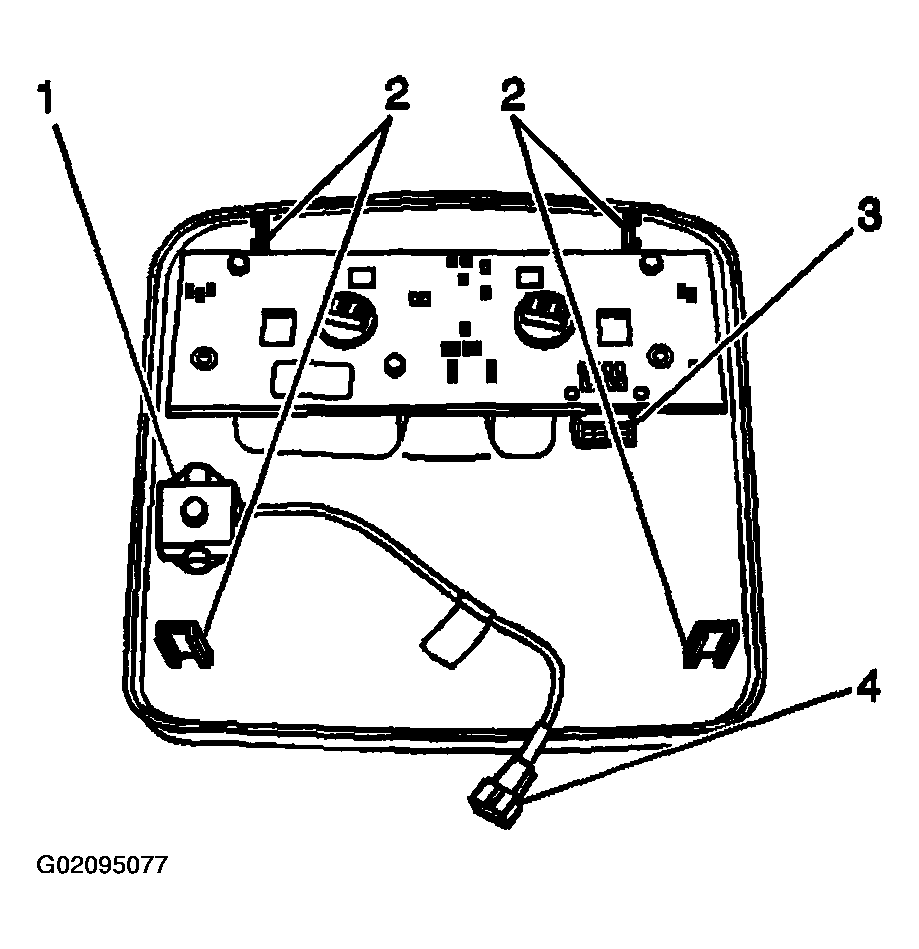

Fig 1: Identifying Overhead Console Courtesy Lamp Retainers
Courtesy of GENERAL MOTORS CORP.
