Section 582 (Lighting Systems)
›
Repair Instructions
›
Dome Lamp Bulb Replacement
›
Removal Procedure
Removal Procedure
WARNING:
This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Pry on the front of the lens in order to remove the lens (1).
Remove the bulb (2).

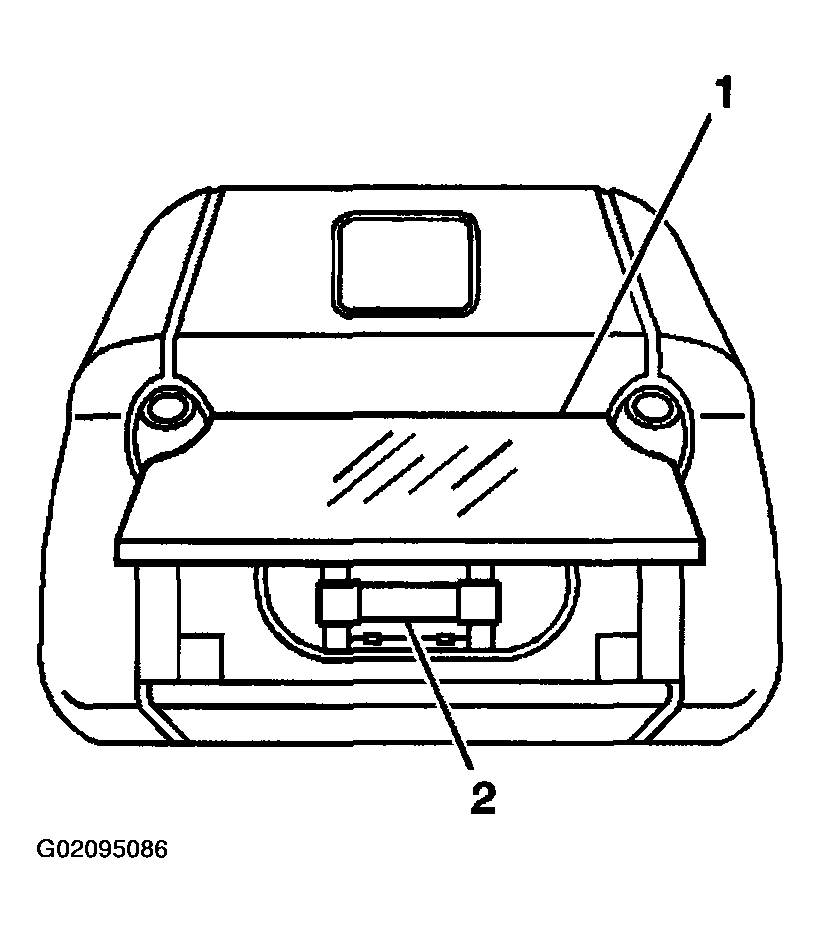

Fig 1: Removing Dome Lamp Lens & Bulb
Courtesy of GENERAL MOTORS CORP.
