Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Install the hazard switch to the vent ensuring the locking tabs (1) on the switch are secure.

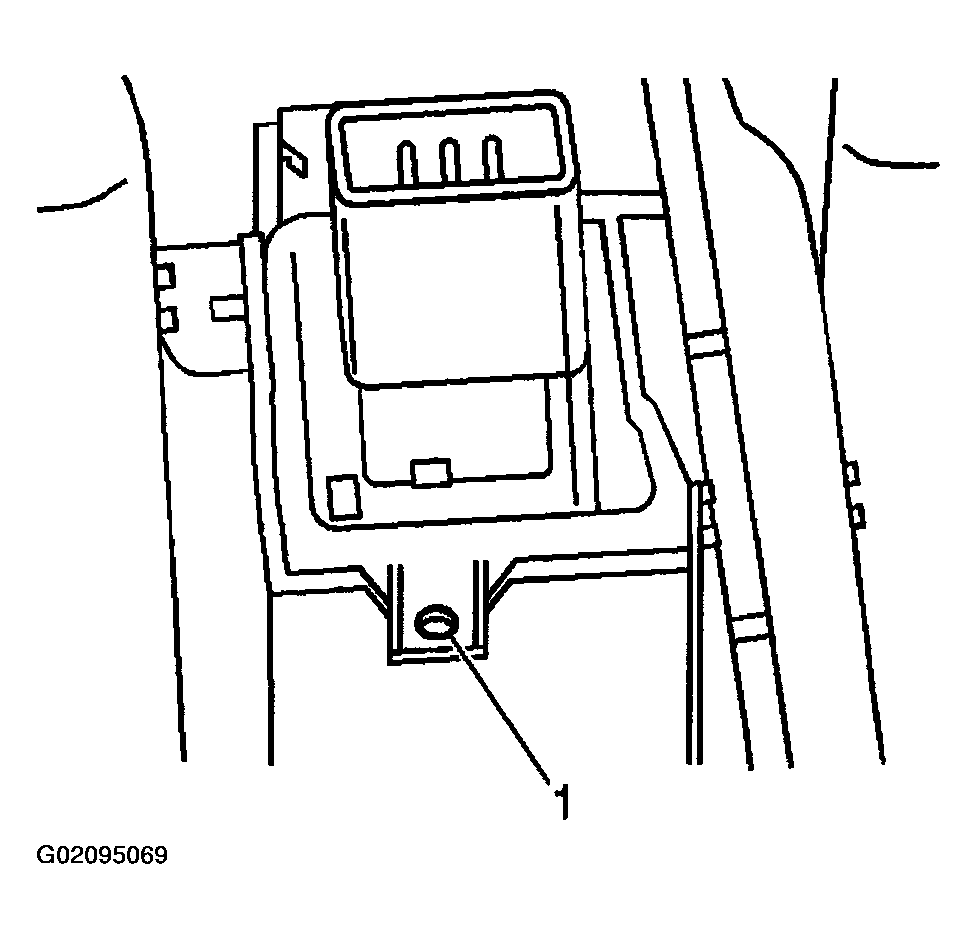

Fig 1: Locating Hazard Switch Retaining Tabs
Courtesy of GENERAL MOTORS CORP.
Connect the hazard switch connector.
Install the center I/P vent to the I/P. Refer to DEFLECTOR REPLACEMENT - INSTRUMENT PANEL AIR - CENTER .

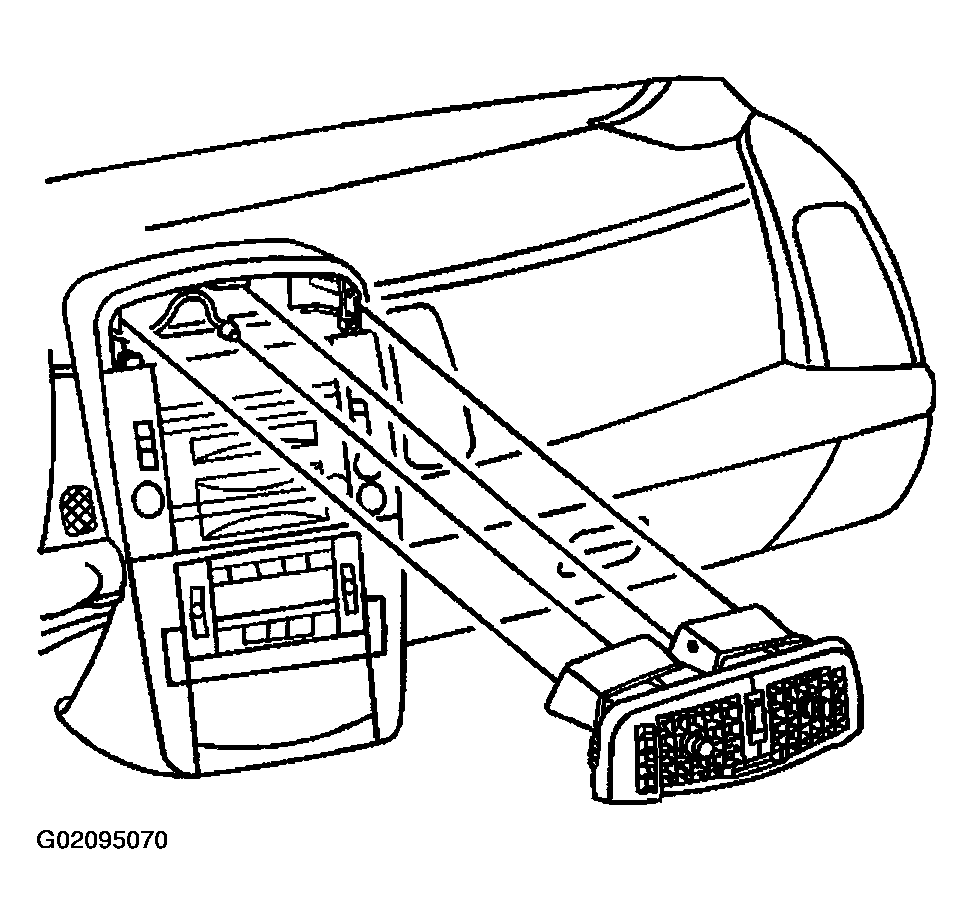

Fig 2: Installing Center Instrument Panel Vent
Courtesy of GENERAL MOTORS CORP.
