Installation Procedure
WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

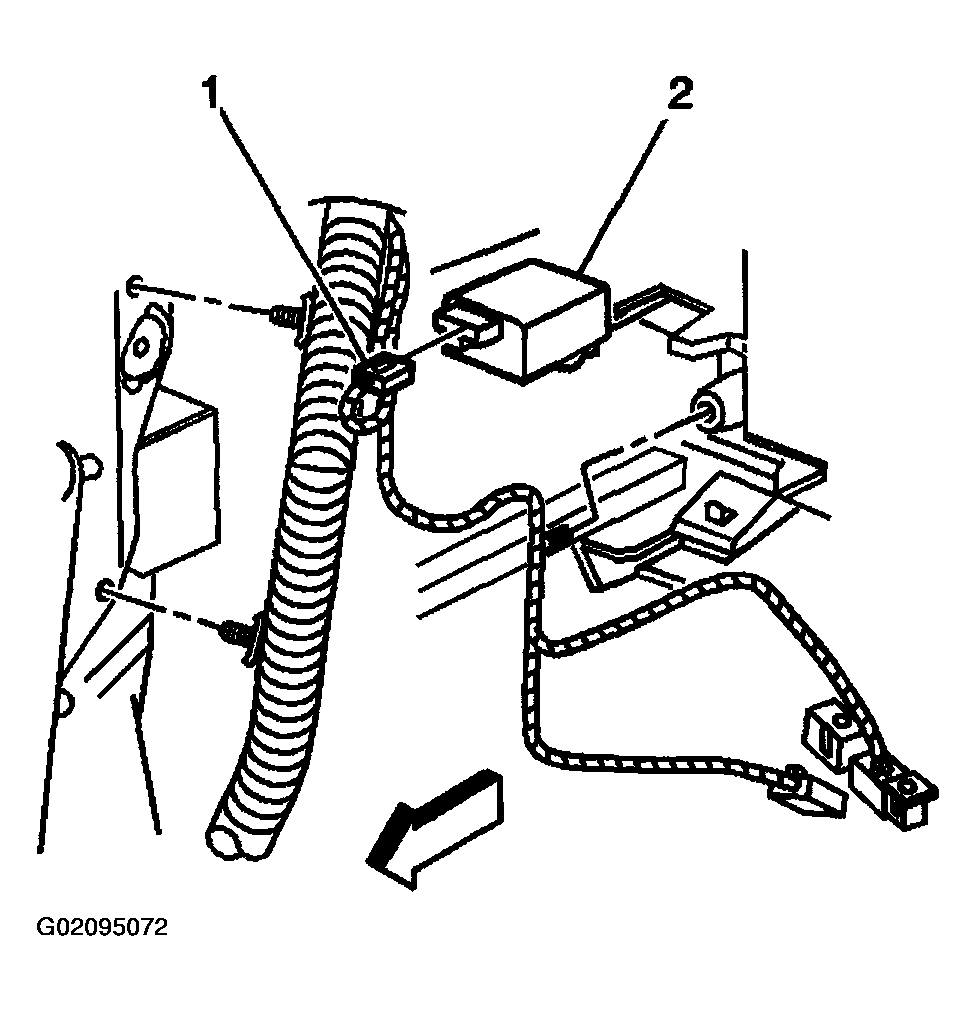

- Connect the electrical connector (1) to the flasher module (2).
- Slide the flasher module retaining clip onto the I/P carrier.
- Install the driver side I/P closeout/Insulator panel. Refer to INSTRUMENT PANEL, GAGES, AND CONSOLE or INSTRUMENT PANEL, GAGES, AND CONSOLE .
