Removal Procedure
WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
- Remove the right rear tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.

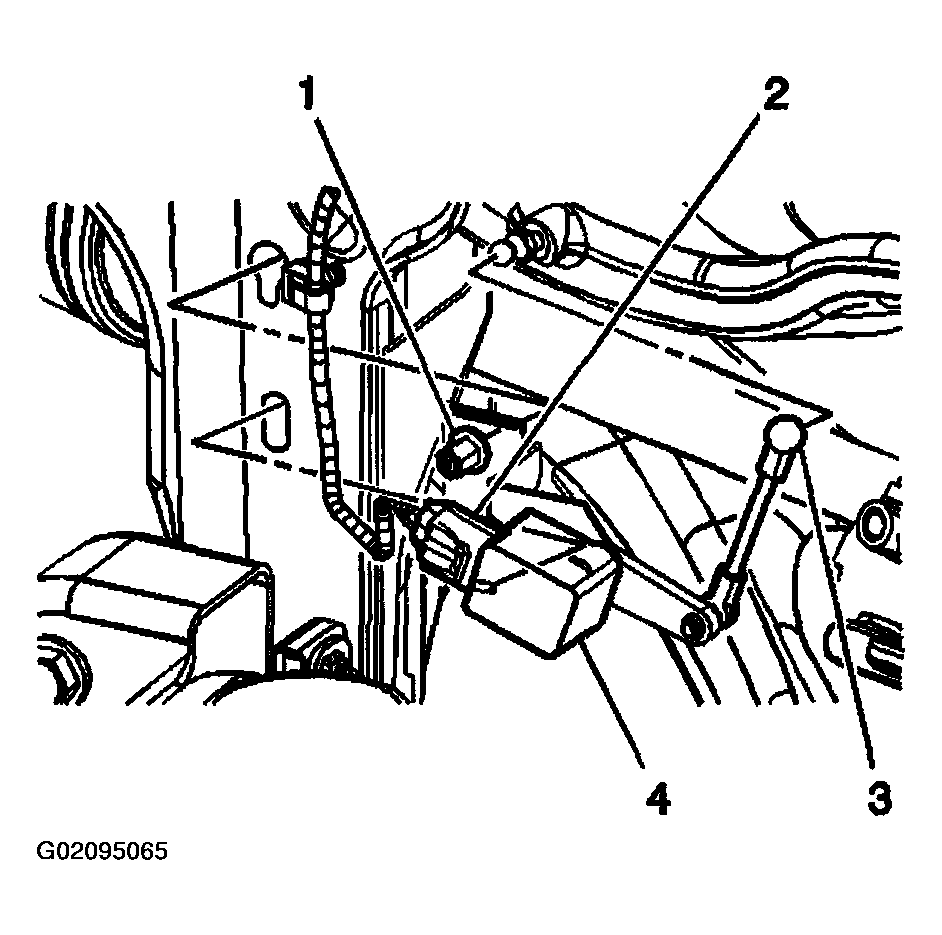

- Remove electrical connector (2).
- Disconnect the ball and socket (3) from vehicle.
- Remove the bolt (1) from the sensor.
- Remove the sensor from the vehicle.
