Installation Procedure
WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
- Install the license lamp to the rear compartment lid applique by sliding the lamp into the applique until an audible click is heard.

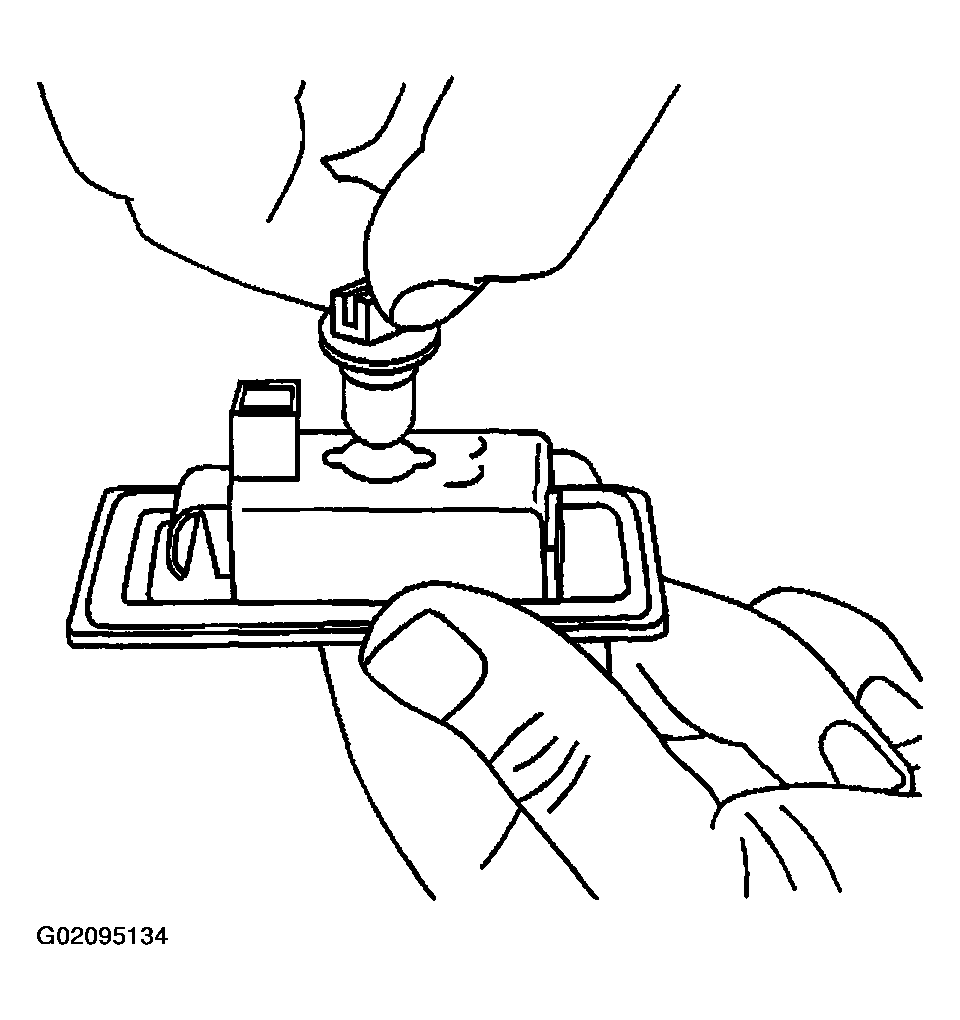

- Install the license lamp bulb into the socket if replacing.
- Install the license lamp socket into the rear compartment lid applique by inserting it and turning it clockwise.
- Install the rear compartment lid applique to the rear compartment lid. Refer to BODY REAR END in Body Rear End.
- Close the rear compartment.
