Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Install the cornering lamp assembly to the front fascia.
Secure the cornering lamp to the fascia by pushing the top inward until fully seated.

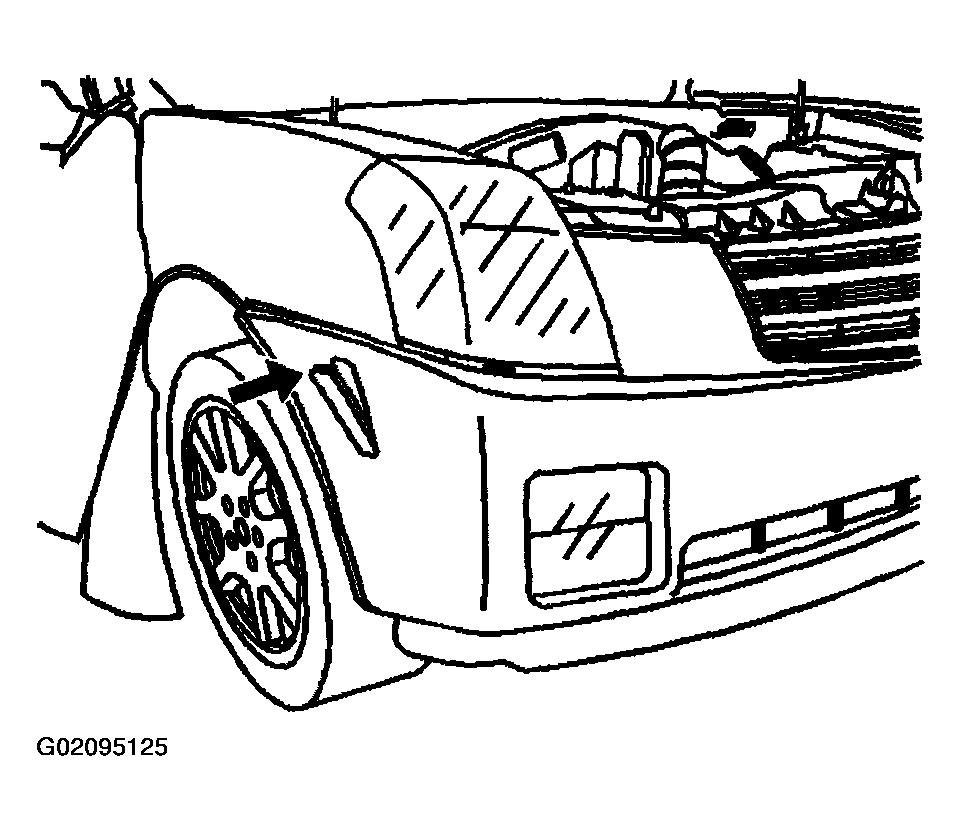

Fig 1: Installing Cornering Lamp Assembly To Front Fascia
Courtesy of GENERAL MOTORS CORP.
Install the cornering lamp socket into the cornering lamp by inserting it and turning it 1/4 turn clockwise.

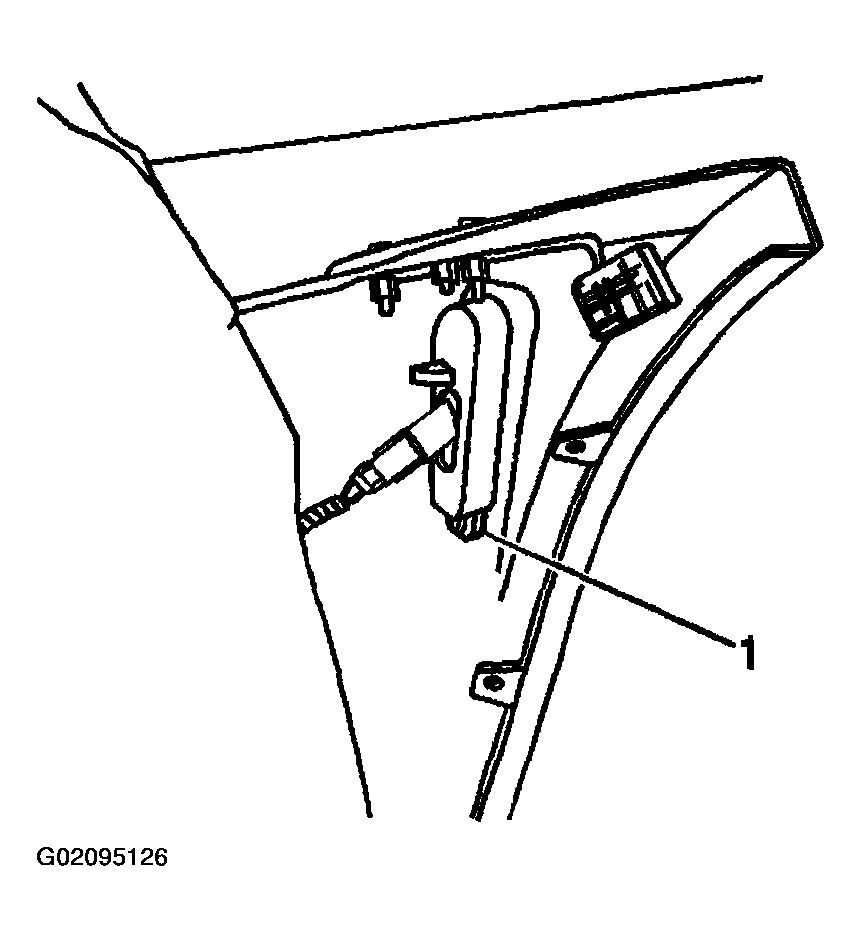

Fig 2: Identifying Cornering Lamp Tab
Courtesy of GENERAL MOTORS CORP.
Install the front fascia extension. Refer to BUMPER SYSTEM in Body Front End.
