Stop Lamp Switch Adjustment
WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Important: Fully depress the pedal before installing the stop lamp switch.

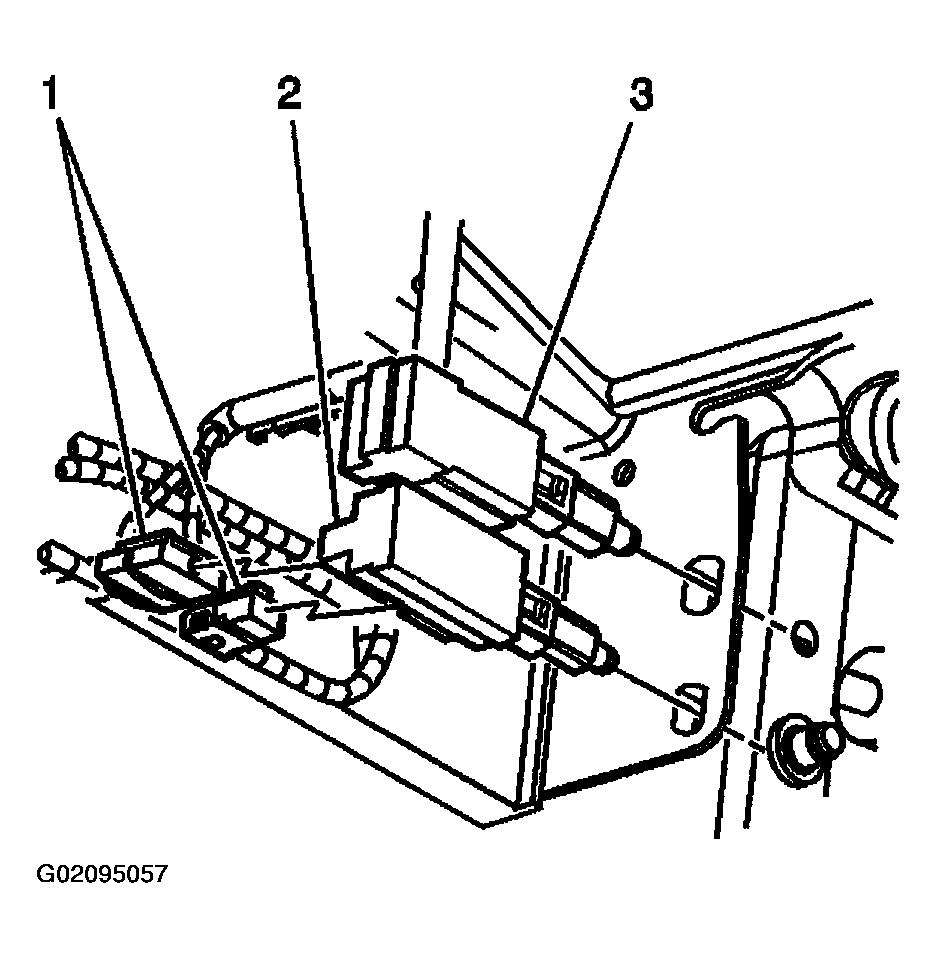

- Insert the stop lamp switch into the brake pedal assembly. Refer to STOP LAMP SWITCH REPLACEMENT .
- Push the stop lamp switch in until the switch retainer is fully seated.
- Carefully pull up on the pedal until you reach the most upward position and you hear a click. Push the barrow of the switch all the way into the stop lamp switch.
- Connect the electrical connector to the stop lamp switch.
