Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Pry the vanity mirror lamp lens (1) in order to remove the lens.

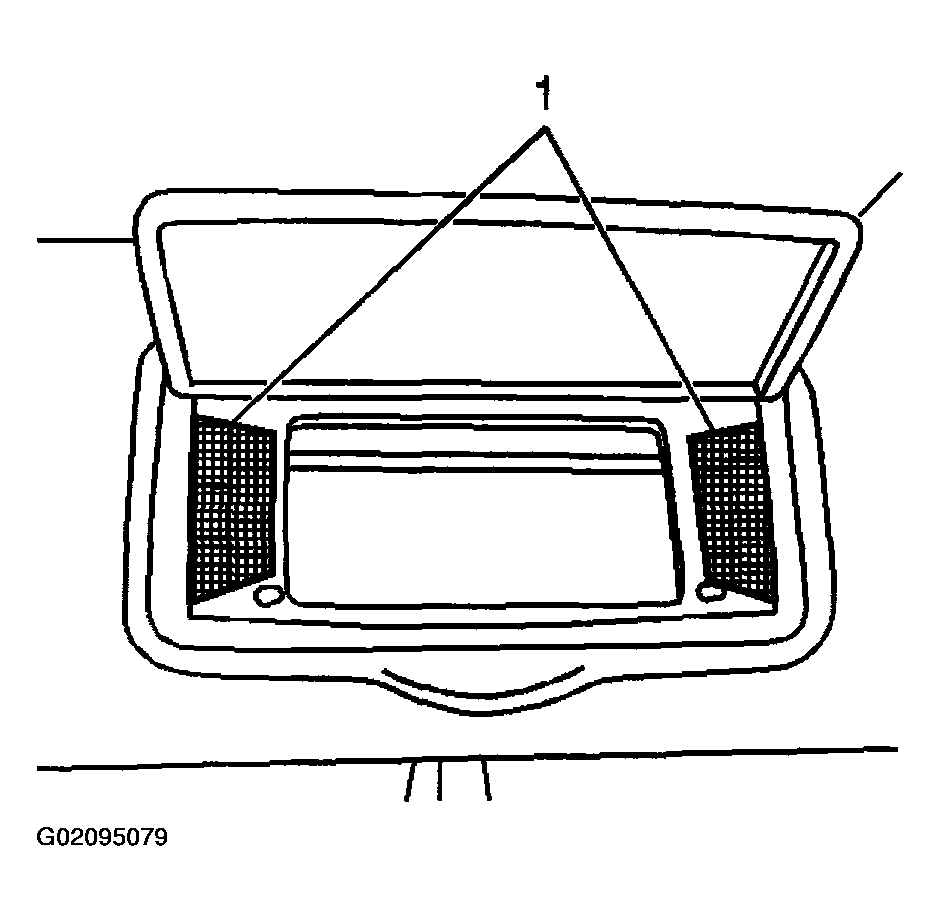

Fig 1: View Of Vanity Mirror Lamp Lens
Courtesy of GENERAL MOTORS CORP.
Remove the bulb.

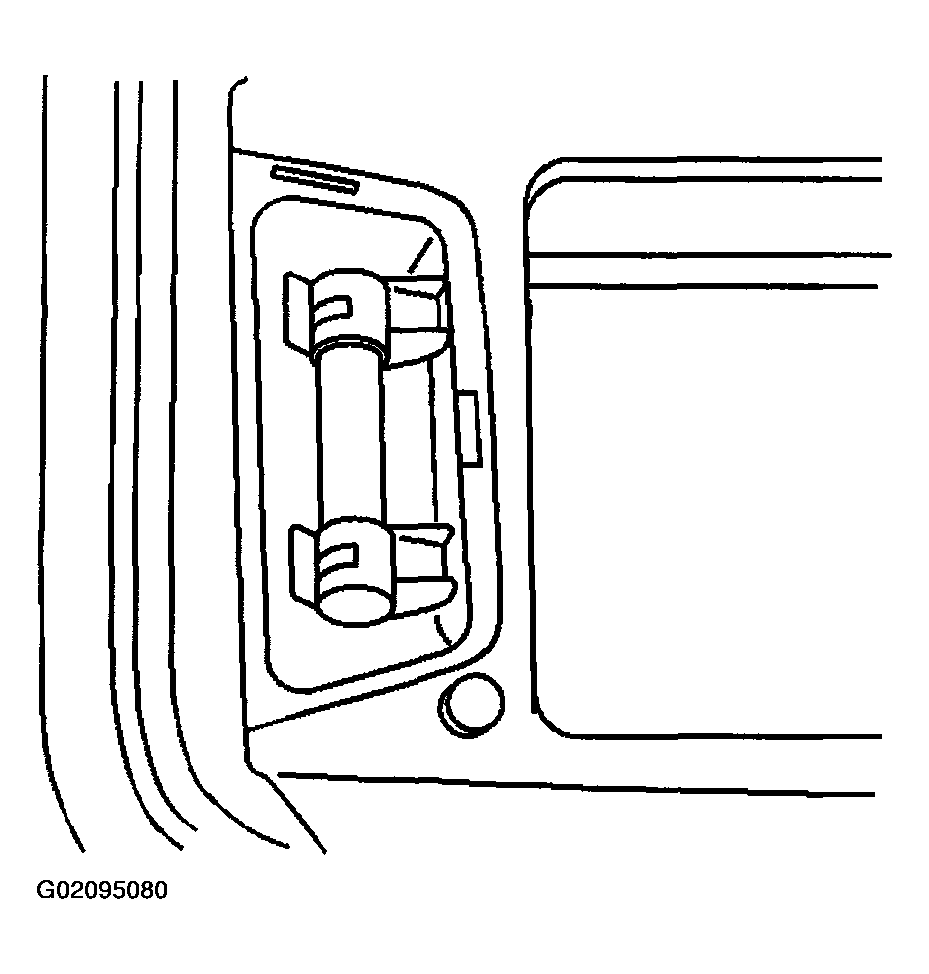

Fig 2: Identifying Vanity Mirror Lamp Bulb
Courtesy of GENERAL MOTORS CORP.
