Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Connect the electrical connector (2).
Install the speaker (1) to the I/P retainer.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the 4 fasteners securing the speaker.
Tighten

Tighten the fasteners to 2 N.m (18 lb in).
Reinstall the defroster grille. Refer to DEFROSTER GRILLE REPLACEMENT in Instrument Panel, Gages and Console.

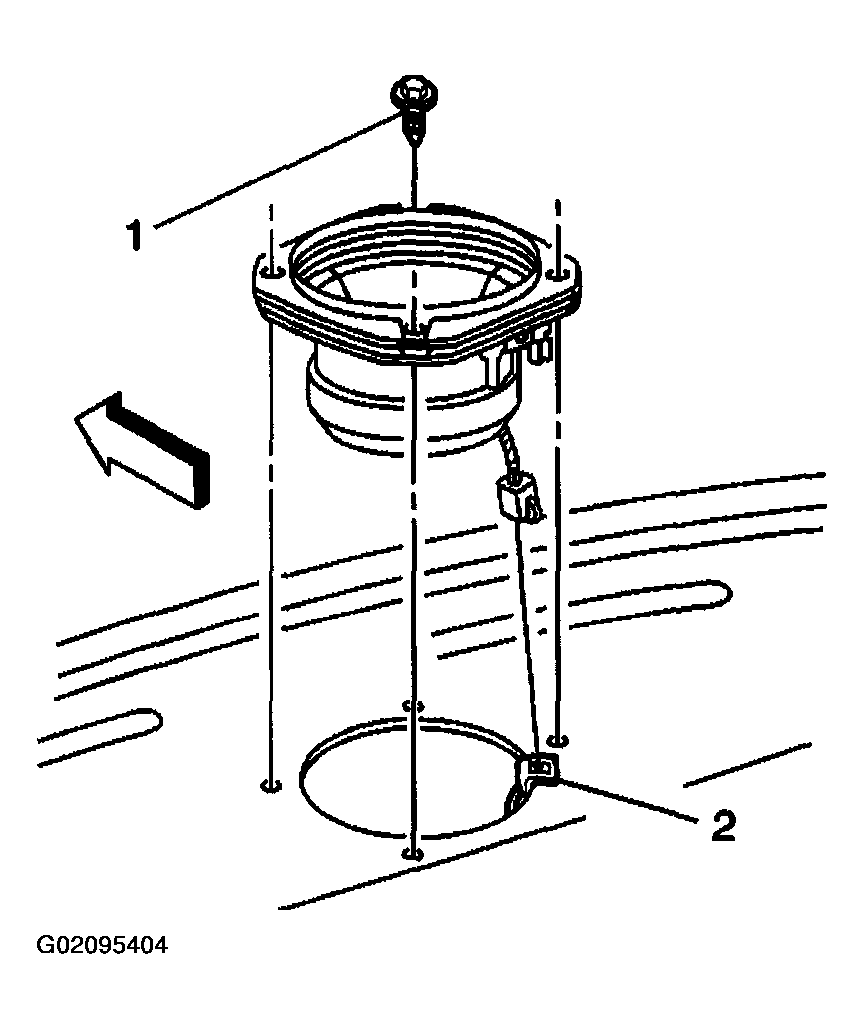

Fig 1: Installing Front Speaker
Courtesy of GENERAL MOTORS CORP.
