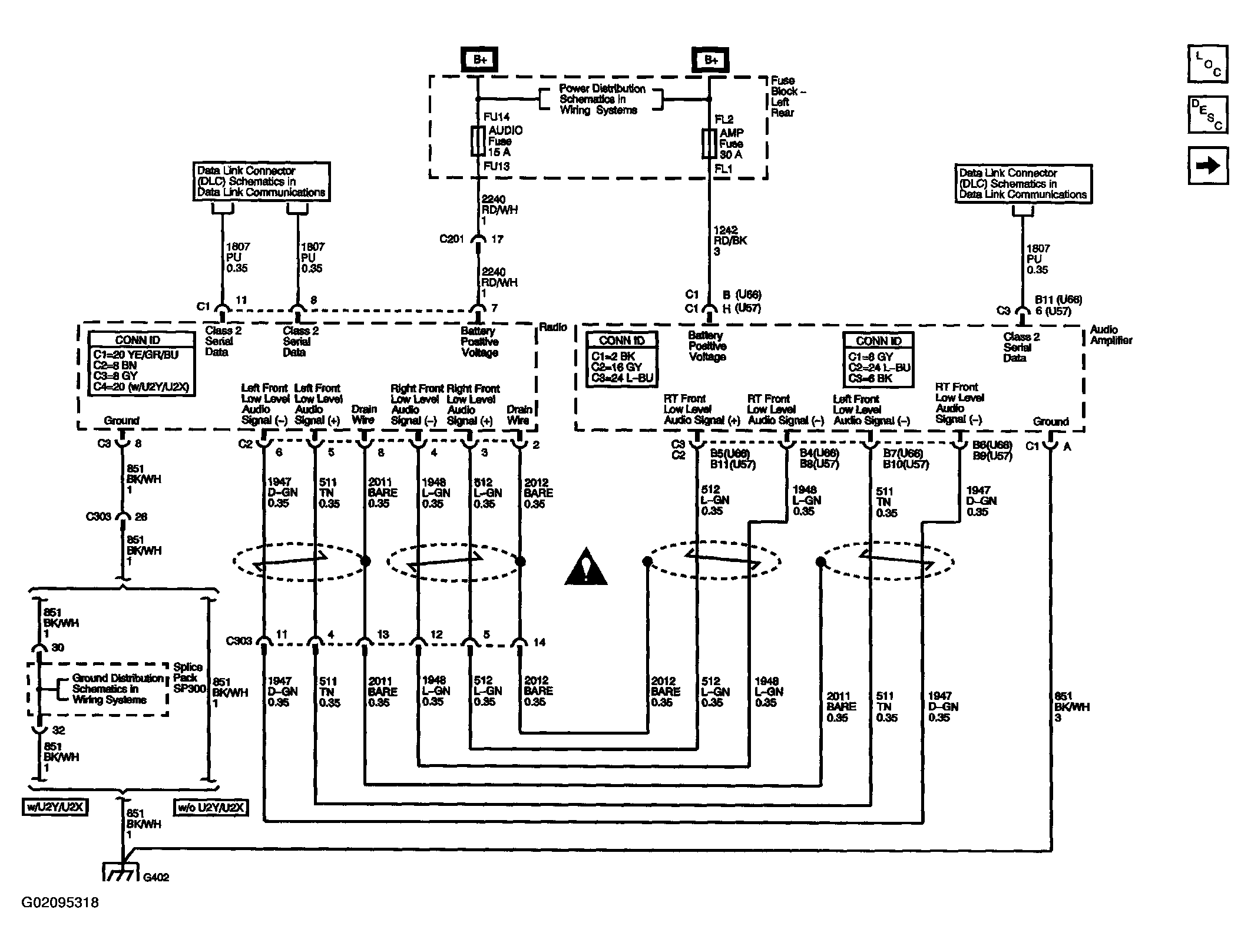

Fig 1: Radio/Audio System Schematics (Radio/Amplifier Power And Grounds)
Courtesy of GENERAL MOTORS CORP.

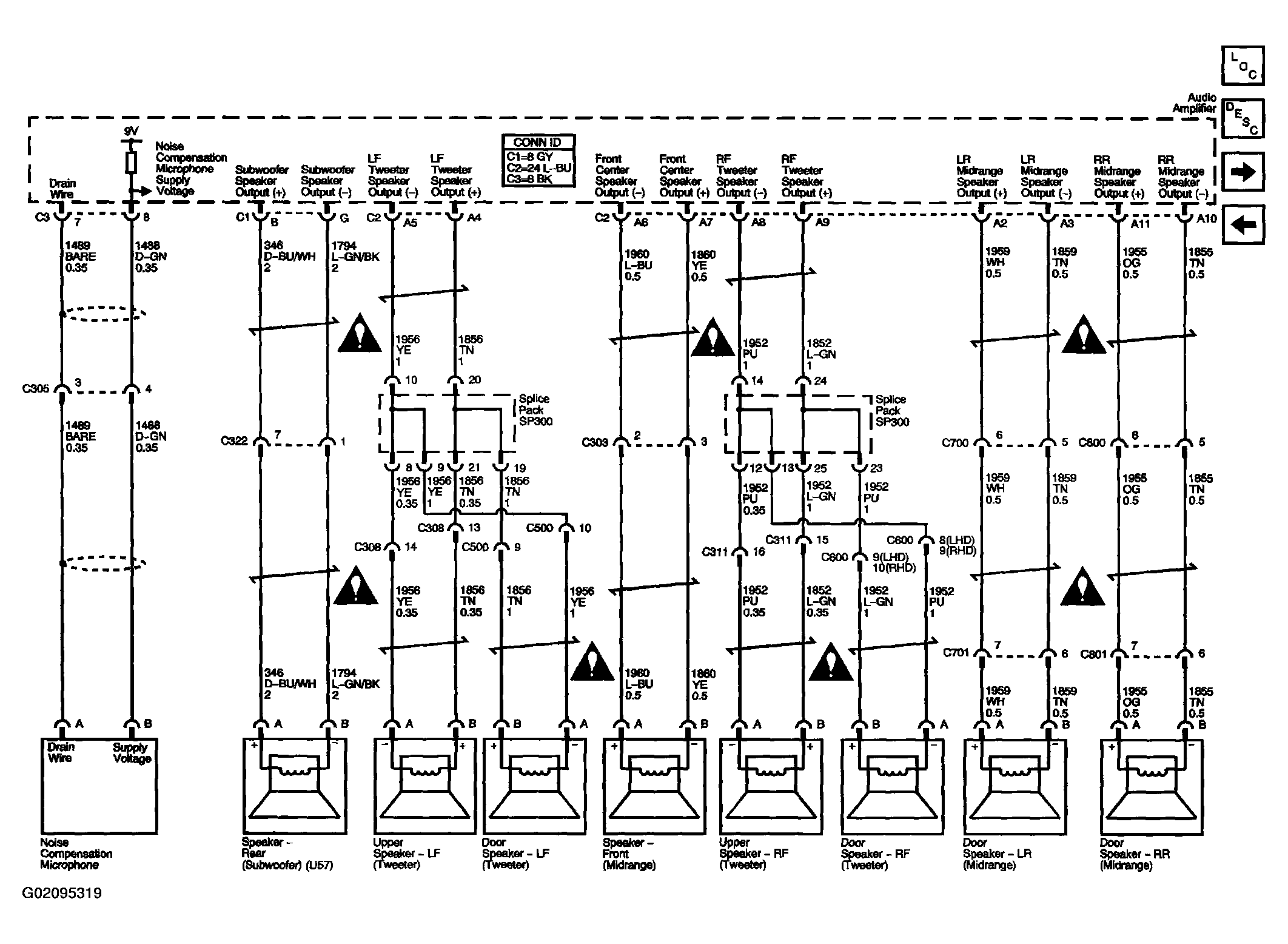

Fig 2: Radio/Audio System Schematics (Amplifier And Speakers W/U57)
Courtesy of GENERAL MOTORS CORP.

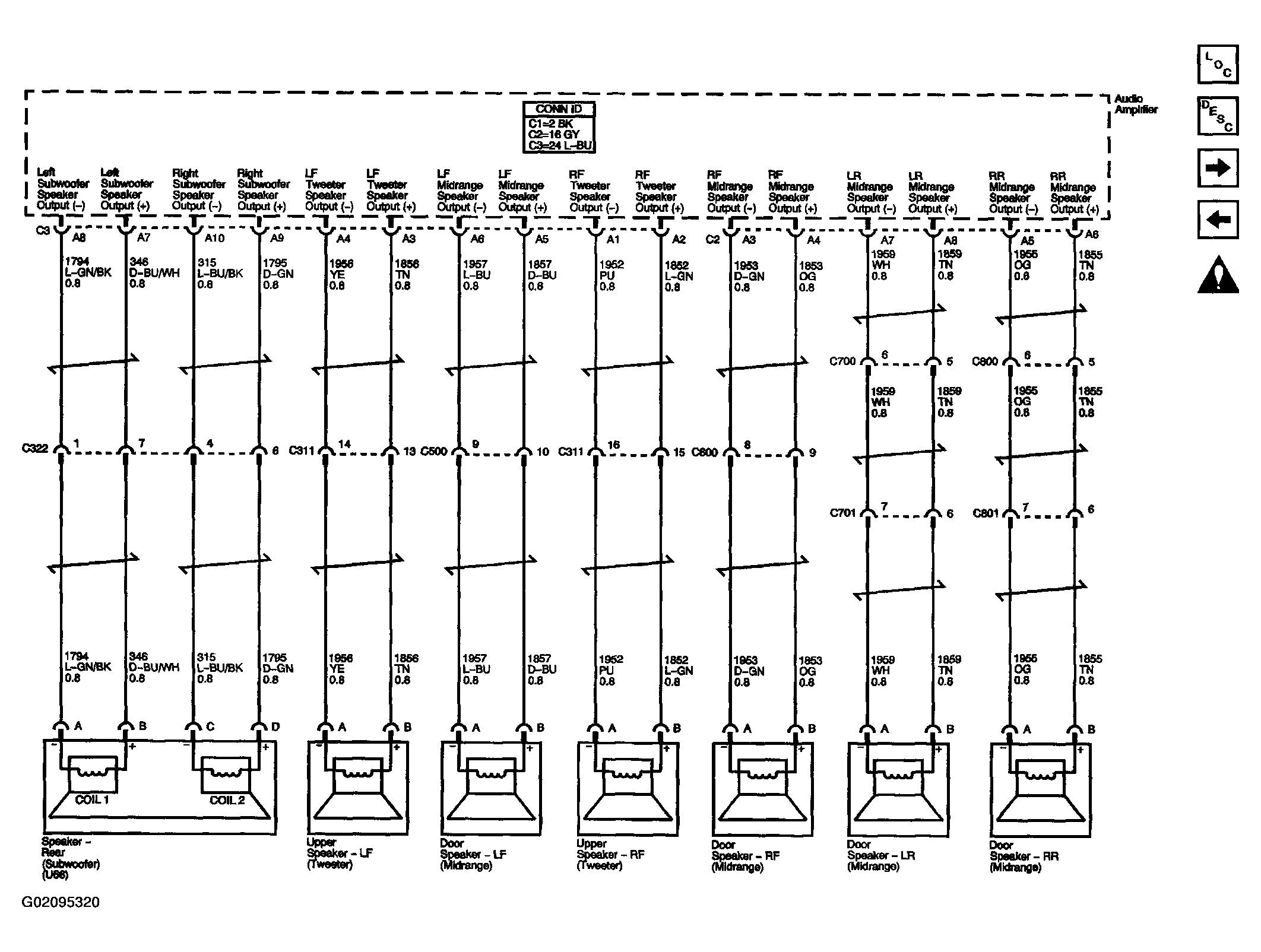

Fig 3: Radio/Audio System Schematics (Amplifier And Speakers W/U66)
Courtesy of GENERAL MOTORS CORP.

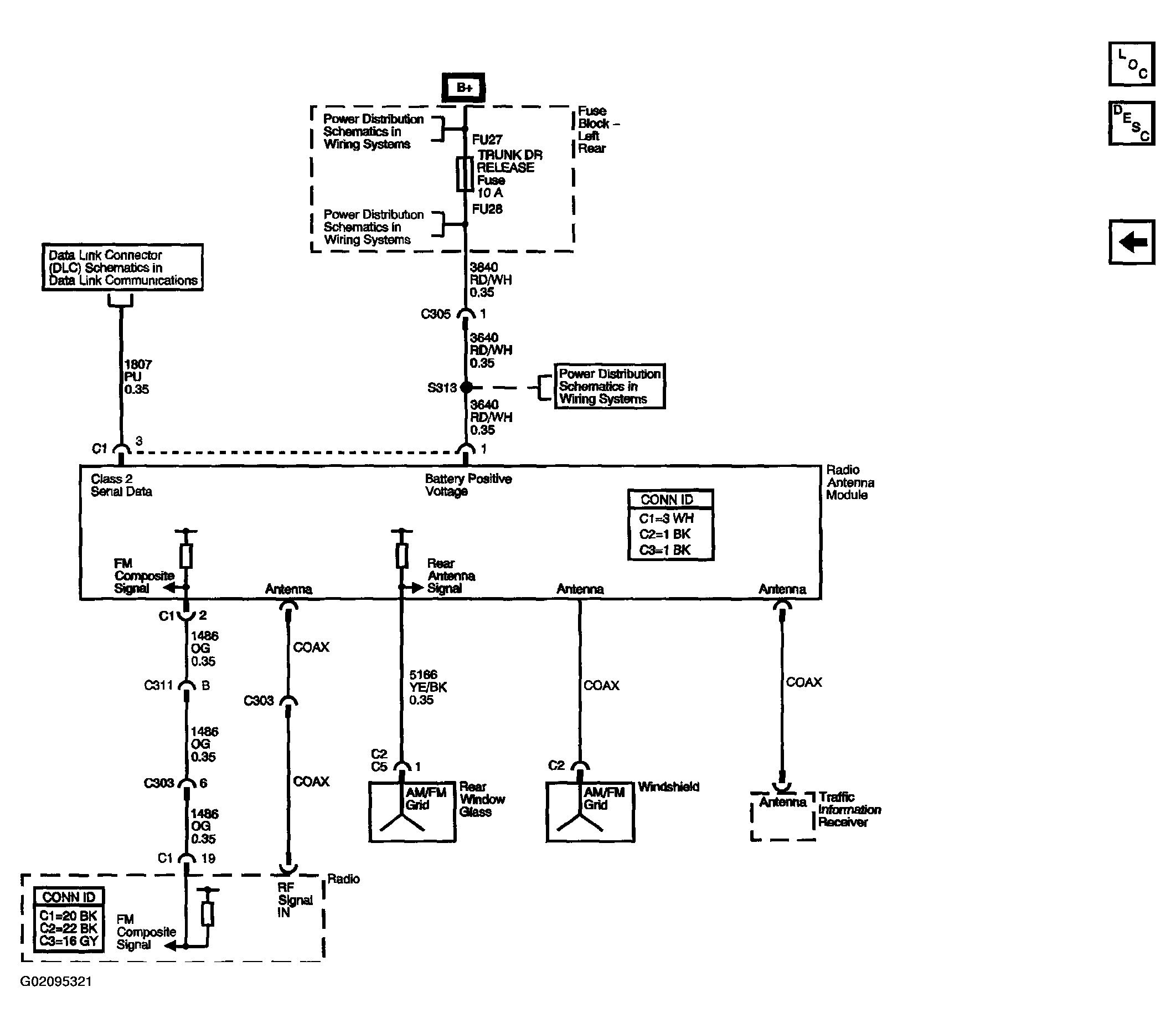

Fig 4: Radio/Audio System Schematics (Radio Antenna Module)
