Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the console rear panel. Refer to CENTER CONSOLE END PANEL REPLACEMENT in Instrument Panel, Gages and Console.
Disconnect the electrical connector.
Release the tabs (1) securing the video jack to the console.

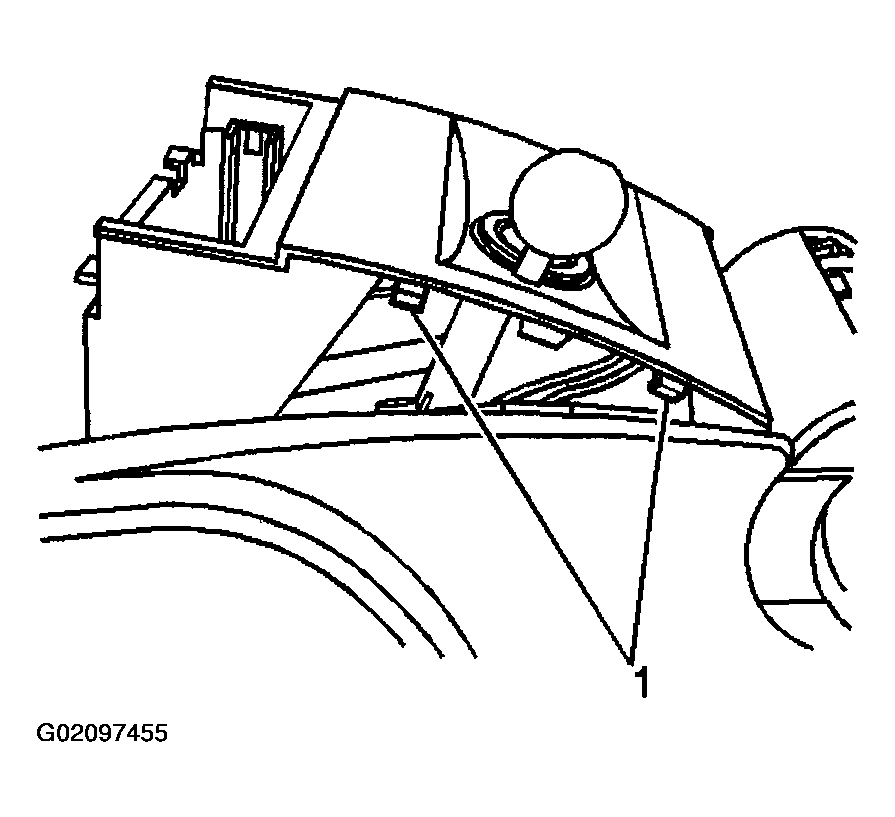

Fig 1: Releasing Tabs Securing Video Jack To Console
Courtesy of GENERAL MOTORS CORP.
Remove the video jack out of the front of the console.

Fig 2: Removing Video Jack Out Of Front Of Console
Courtesy of GENERAL MOTORS CORP.
