Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear shelf. Refer to SHELF CARRIER REPLACEMENT -- REAR .
  2. Remove the push pins securing the Rear Integration Module (RIM) (1) to the electrical carrier assembly.
  3. Disconnect the electrical connectors.
  4. Remove the RIM.

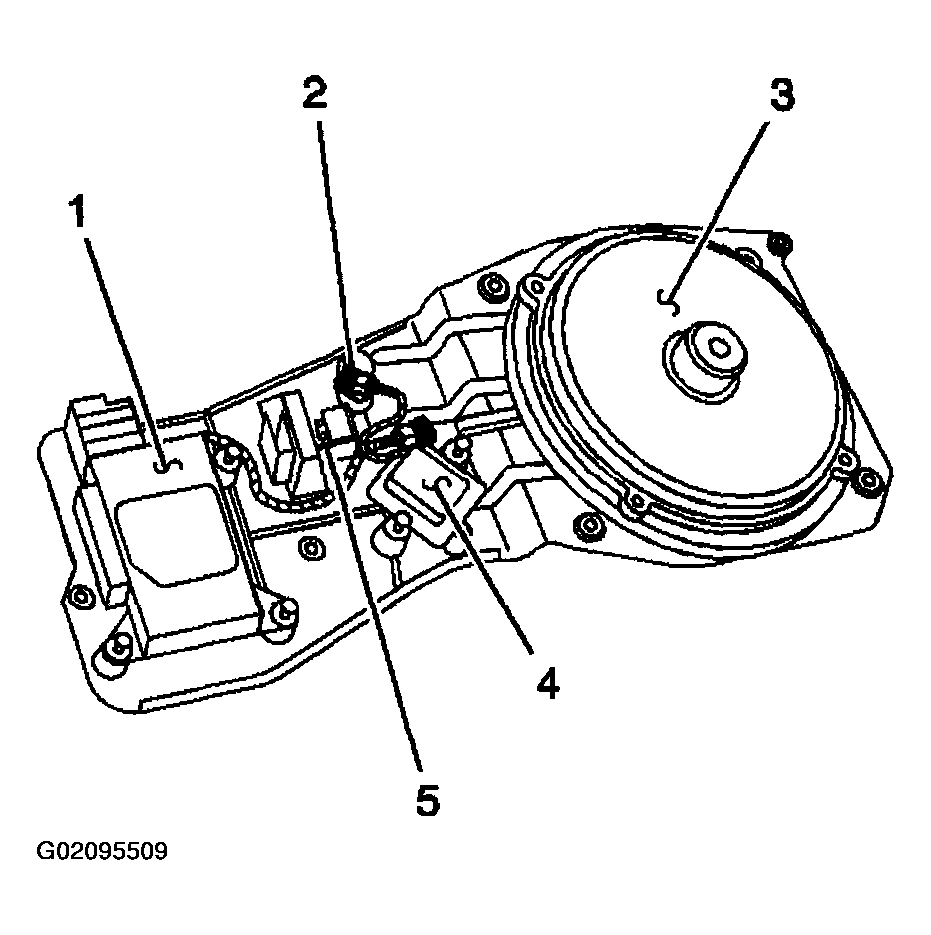

    Fig 1: Removing Rear Integration Module
    G02095509Courtesy of GENERAL MOTORS CORP.
