Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

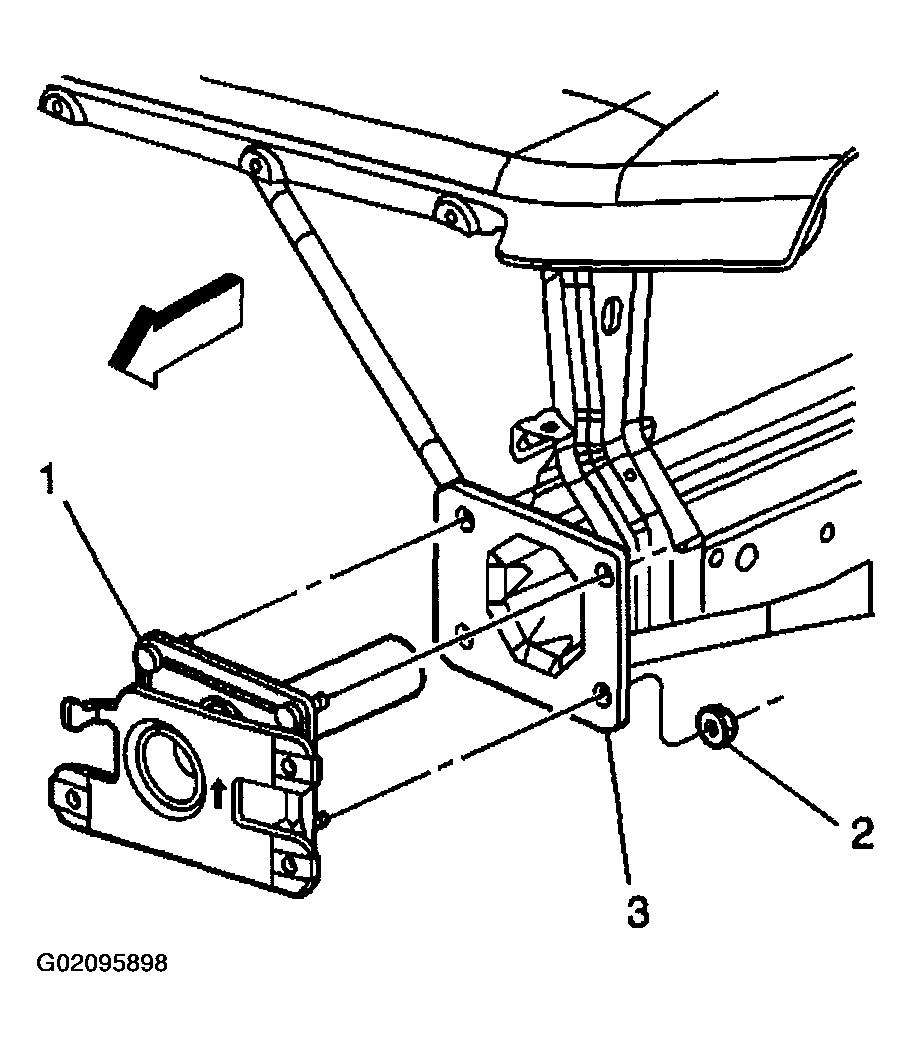

IMPORTANT: The arrow on the energy absorber (1) needs to be positioned upward prior to installation.

Install the energy absorber (1) to the frame rail (3).

Fig 1: Installing Energy Absorber
Courtesy of GENERAL MOTORS CORP.

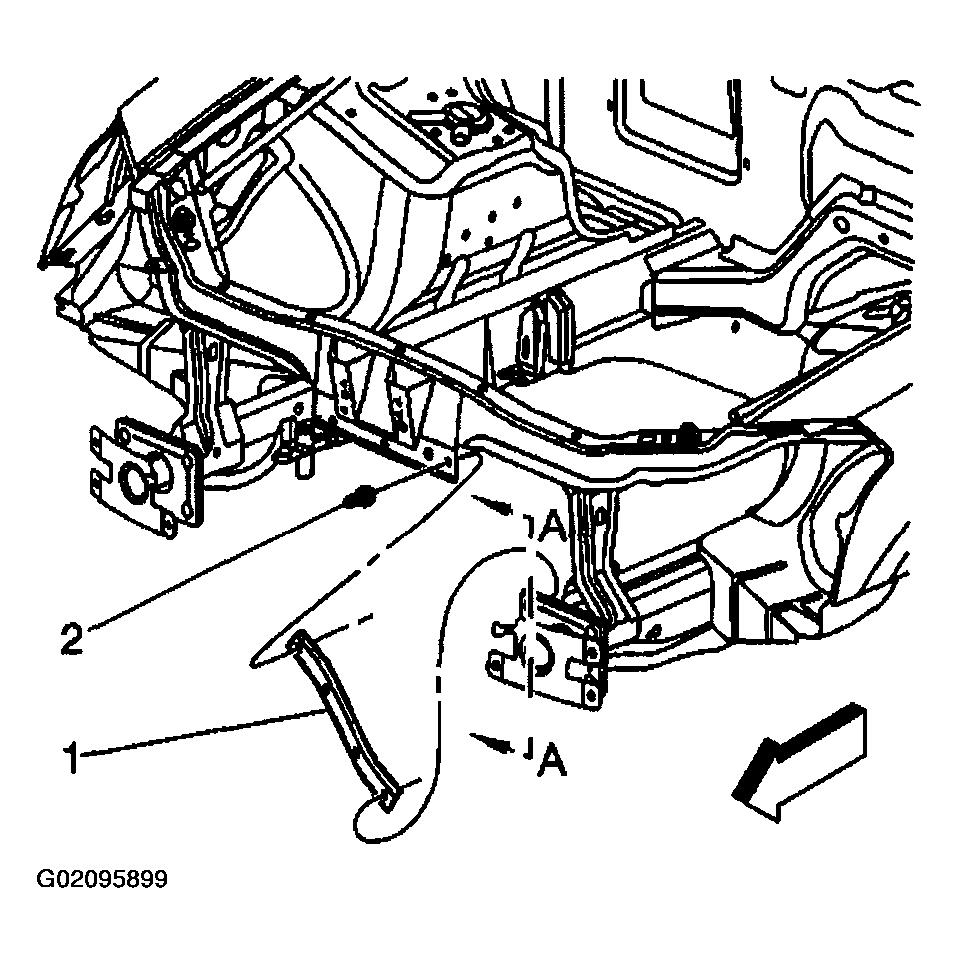

Position the diagonal brace (1) to the hood latch bracket assembly, and to the stud on the backside of the energy absorber.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the energy absorber nuts (2).
Tighten

Tighten the nuts to 25 N-m (18 lb ft).
Install the front impact bar. Refer to IMPACT BAR REPLACEMENT - FRONT BUMPER .

Fig 2: Installing Diagonal Brace
Courtesy of GENERAL MOTORS CORP.
