Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Position the front air deflector to the vehicle.
Install the push-in retainers to secure the air deflector to the engine cradle.

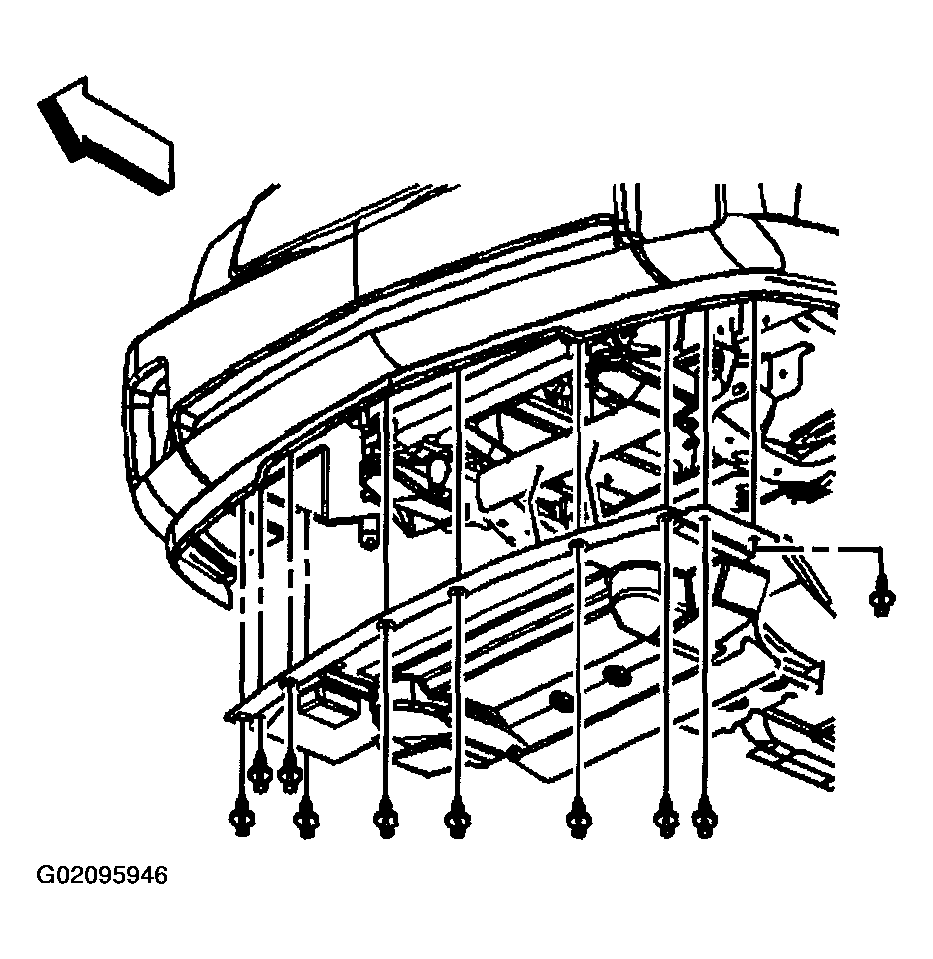

Fig 1: Securing Front Air Deflector To Engine Cradle
Courtesy of GENERAL MOTORS CORP.
Install the push-in retainers to secure the front of the air deflector to the fascia.
Lower the vehicle.

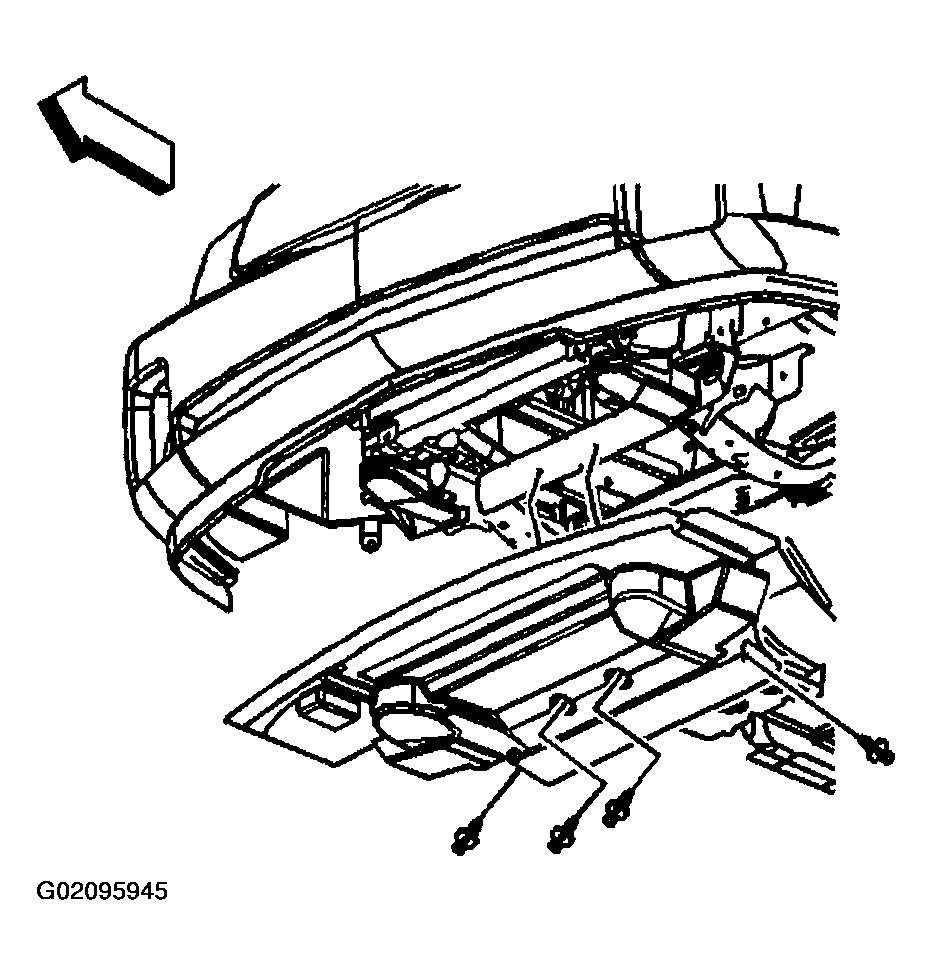

Fig 2: Securing Front Air Deflector To Fascia With Push-In Retainers
Courtesy of GENERAL MOTORS CORP.
