Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Connect the hood release cable (1) to the hood latch (2).

Fig 1: Connecting Hood Release Cable
Courtesy of GENERAL MOTORS CORP.
Position the hood latch (2) to the vehicle.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install the bolts (1) to secure the hood latch to the vehicle.
Tighten

Tighten the bolts to 9 N.m (80 lb in).
Adjust the hood primary latch (2). Refer to HOOD LATCH ADJUSTMENT .

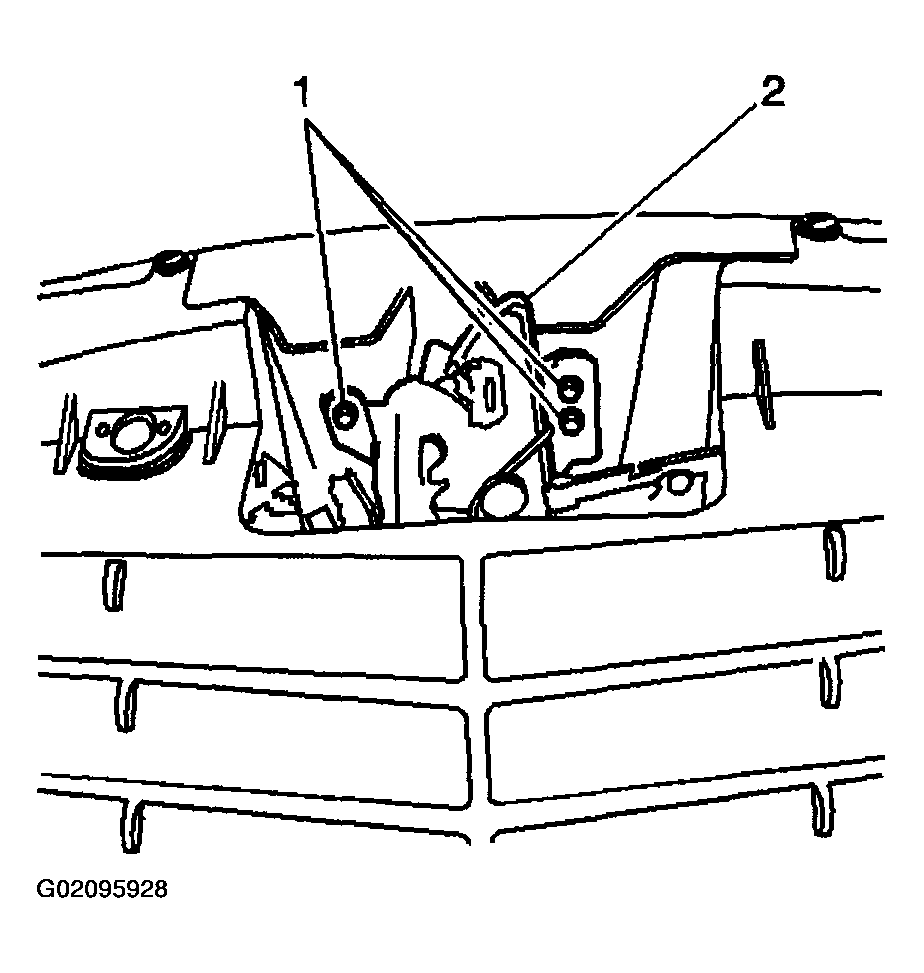

Fig 2: Installing Hood Latch
Courtesy of GENERAL MOTORS CORP.
