Power Seat Systems Component Views

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

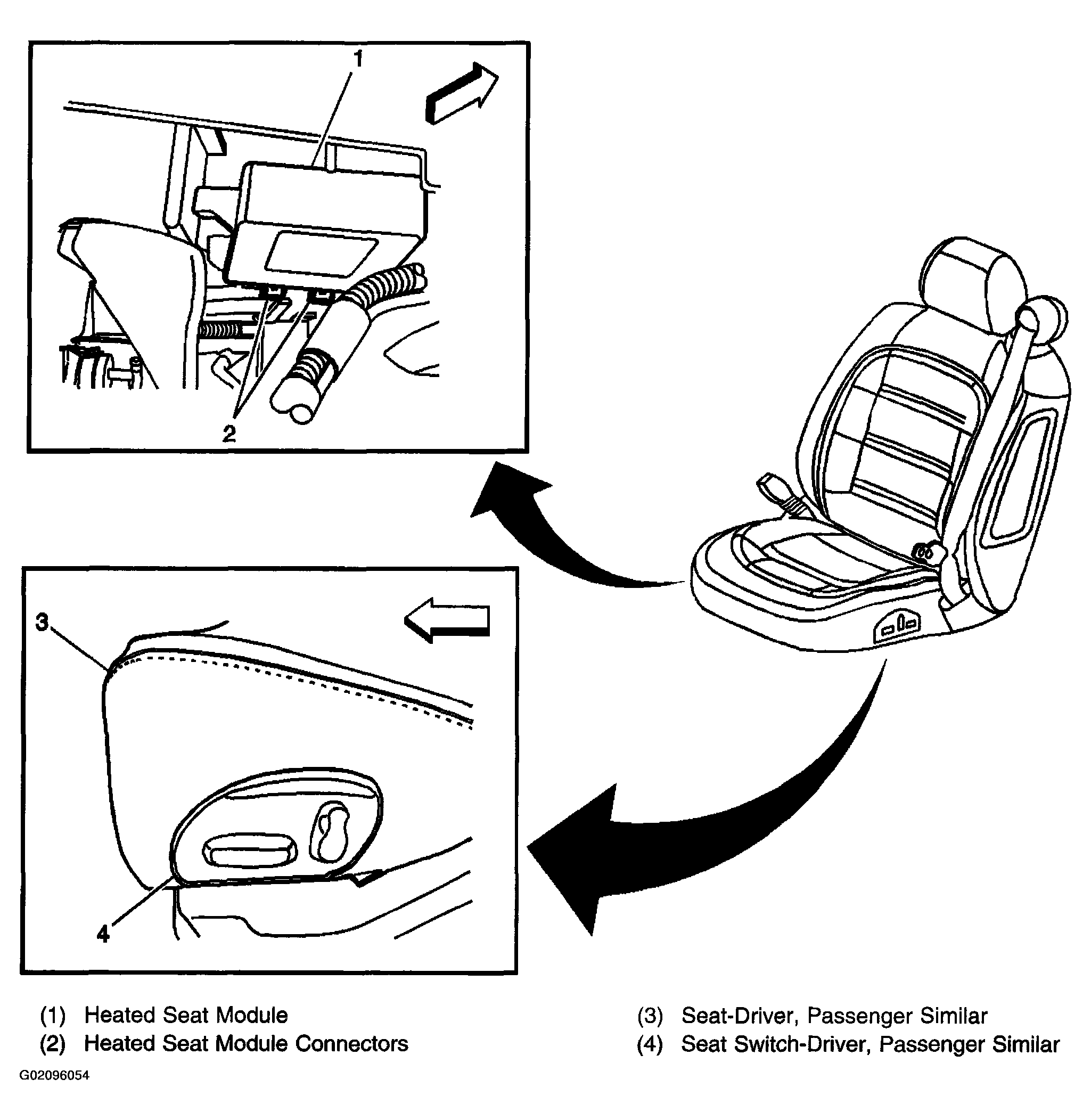

Fig 1: Identifying Heated Seat Module And Seat Switch

Courtesy of GENERAL MOTORS CORP.

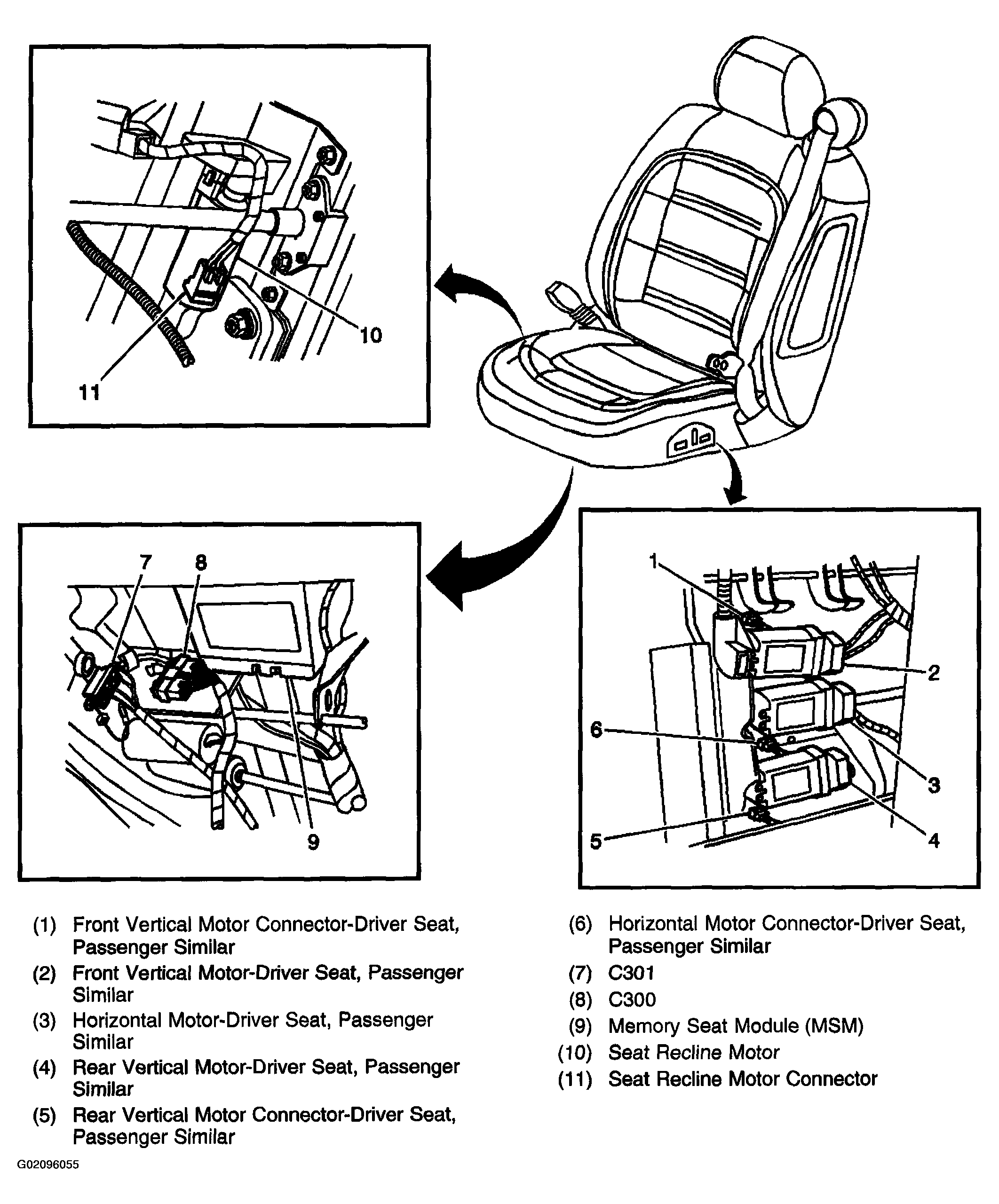

Fig 2: Identifying Seat Motors And MSM

Courtesy of GENERAL MOTORS CORP.
