Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Snap the door lock switch into the door switch bezel.
Connect the electrical connector.

Fig 1: Connecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.
Insert the rear of the door lock switch into the door trim panel.
Press down on the front of the door lock switch to engage the switch to the door trim panel

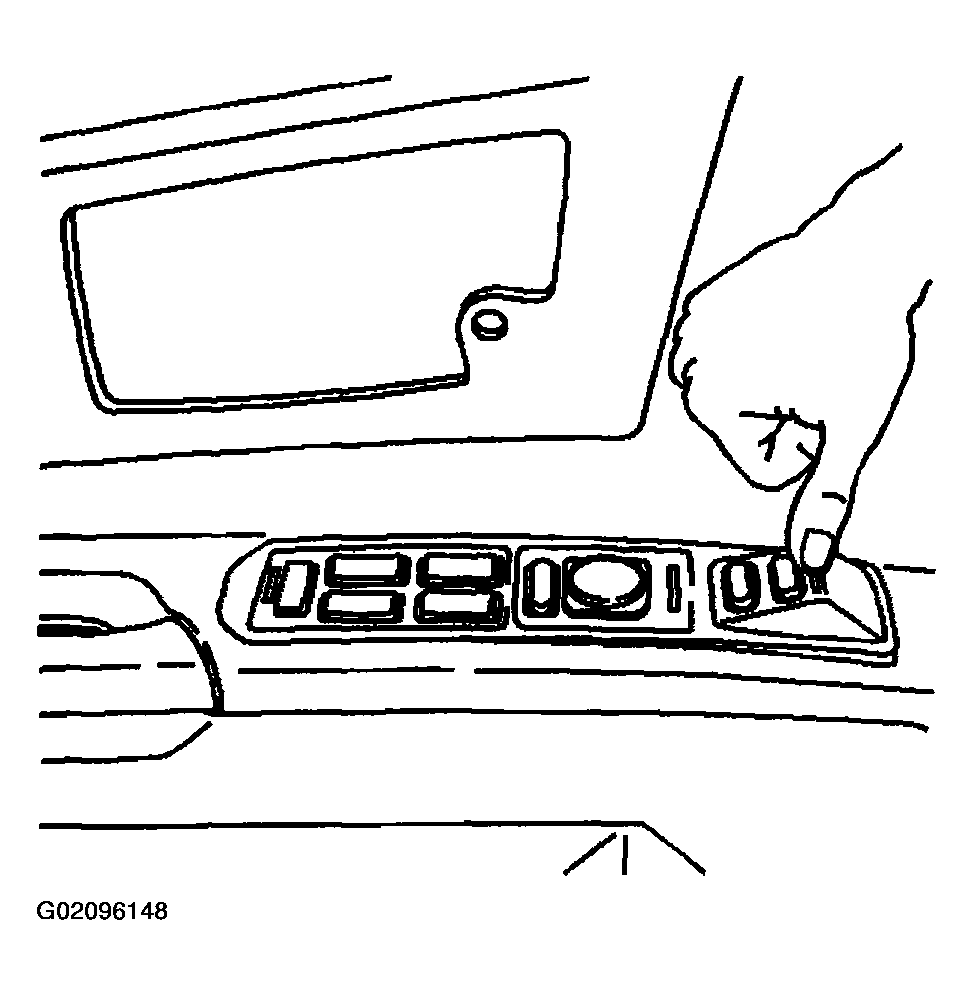

Fig 2: Inserting Rear Of Door Lock Switch Into Door Trim Panel
Courtesy of GENERAL MOTORS CORP.
