Installation Procedure
WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

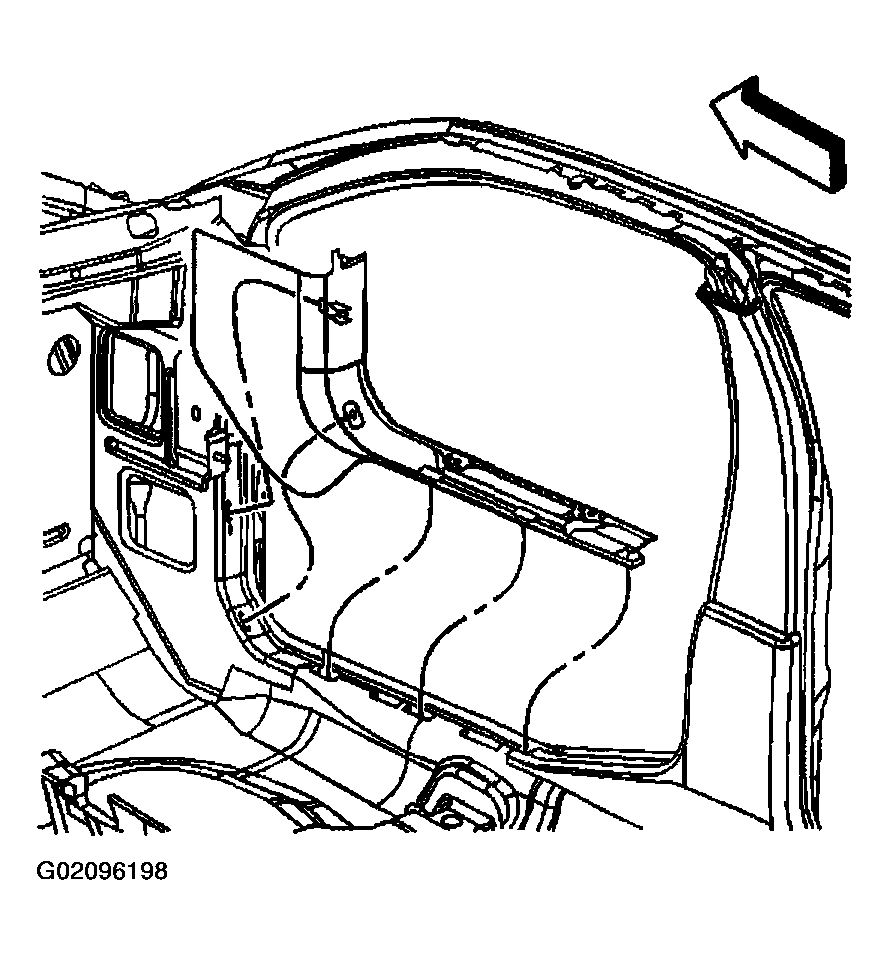

- Position the front upper retainer to the holes in the hinge pillar.
- Align the front carpet retainer with the slots in the rocker panel.
- Apply pressure along the entire length of the molding in order to secure the retainers.
- Ensure the fit at the lower center pillar garnish molding is secure to the front carpet retainer.
