Removal Procedure
WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

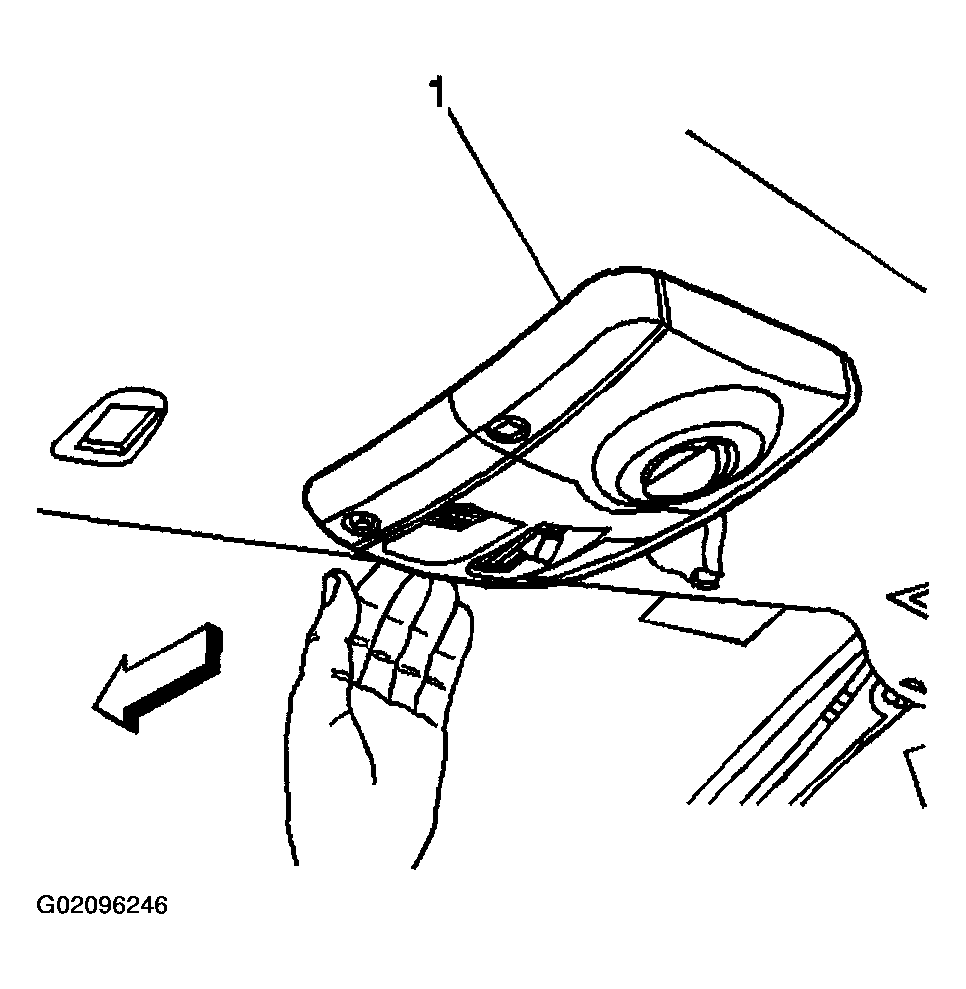

- Using your fingers, gently pull downward at the front edge of the overhead console (1).
- Disconnect the electrical connectors.
- Remove the overhead console.
Courtesy of GENERAL MOTORS CORP.
