Removal Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required

J 38778  Door Trim Pad Clip Remover

  1. Remove the rear shelf panel (2). Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF  .
  2. Remove the screw cover from the sail panel.

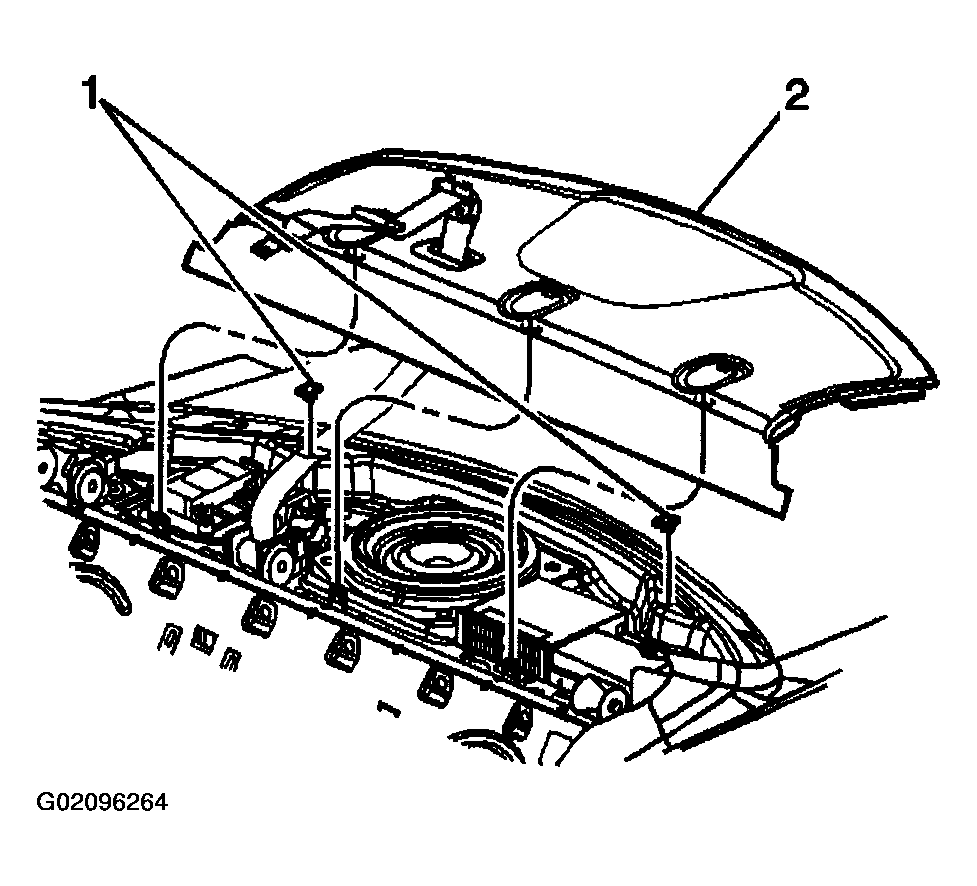

    Fig 1: Removing Rear Shelf Panel
    G02096264Courtesy of GENERAL MOTORS CORP.

    Important:  The upper sail panel is secured with a fastener. Use a magnetic-tipped screwdriver in order to remove the fastener.

  3. Remove the fastener.
  4. Pull downward on the lower front portion of the sail panel in order to release the integral clip.
  5. Release the sail panel plastic push-in retainer using the J 38778  , or equivalent.
  6. Pull outward at the top in order to release the other integral clip.
  7. Pull the sail panel from the C-pillar.
  8. Remove the lower shoulder belt fastener.
  9. Disengage the shoulder belt and escutcheons from the sail panel.
  10. Route the rear outboard shoulder belt from the sail panel.
  11. Remove the shoulder belt from the sail panel.
  12. Remove the sail panel.

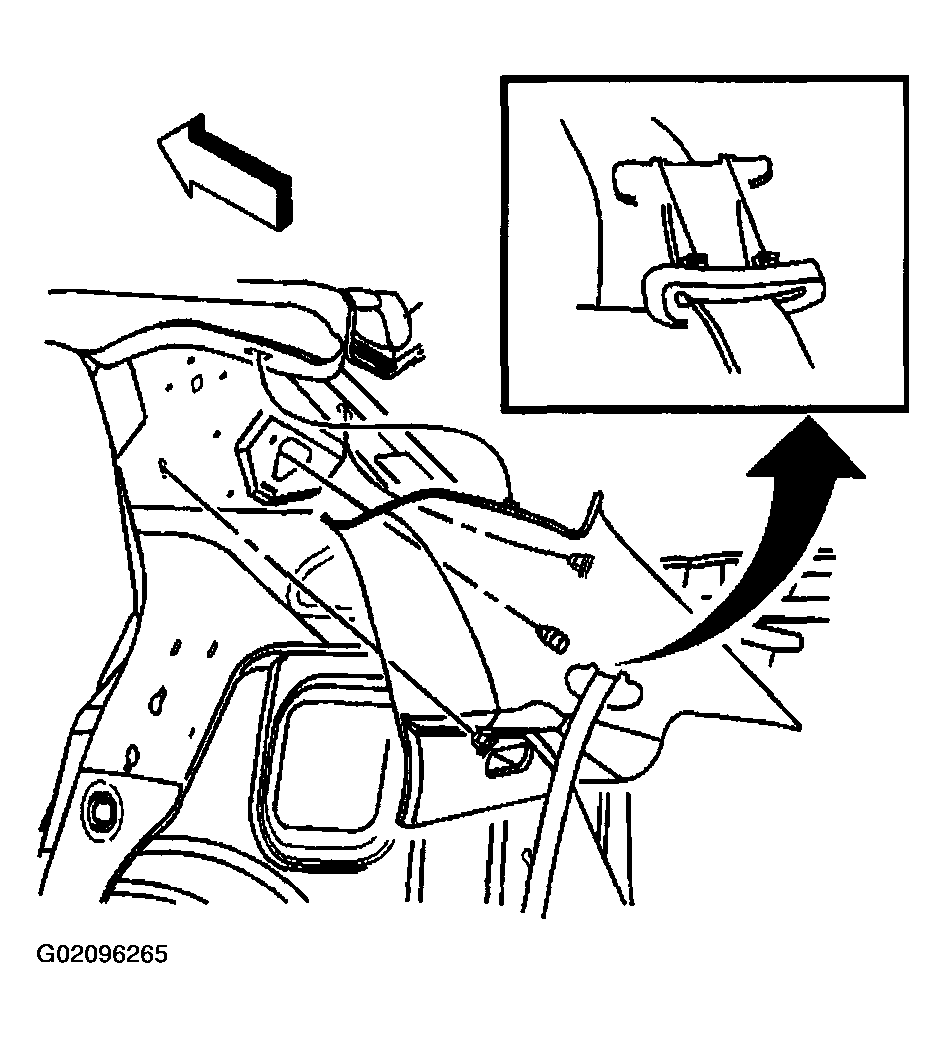

    Fig 2: Removing Sail Panel
    G02096265Courtesy of GENERAL MOTORS CORP.
