Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bezel to the bottom side of the headliner.
  2. Press the bezel upward into place.
  3. Position the overhead console bracket (3) to the sunshade rod retainer.
  4. Insert the bolt (1) through overhead console bracket (3) and the ground strap.
  5. Install the serrated washer in order to hold the bolt in place prior to installation.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  6. Position the bolt to the roof panel.

    Tighten

    Tighten the right side sunshade rod retainer bolt (1) to 10 N.m (88 lb in).

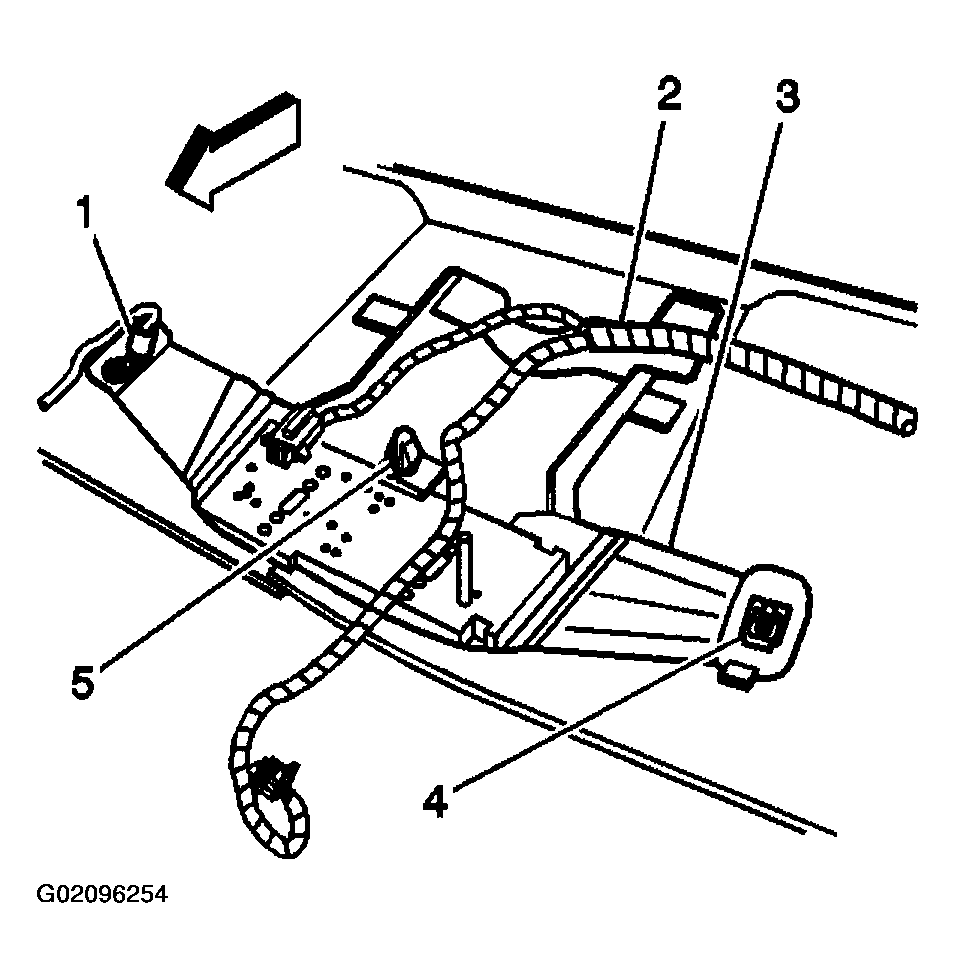

    Fig 1: Installing Left Side Sunshade Rod Retainer Fastener
    G02096254Courtesy of GENERAL MOTORS CORP.
  7. Install the left side sunshade rod retainer fastener (4).

    Tighten

    Tighten the fastener to 2 N.m (18 lb in).

  8. Position both the sunshades to the sunshade rod retainers.
