HVAC Connector End Views

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

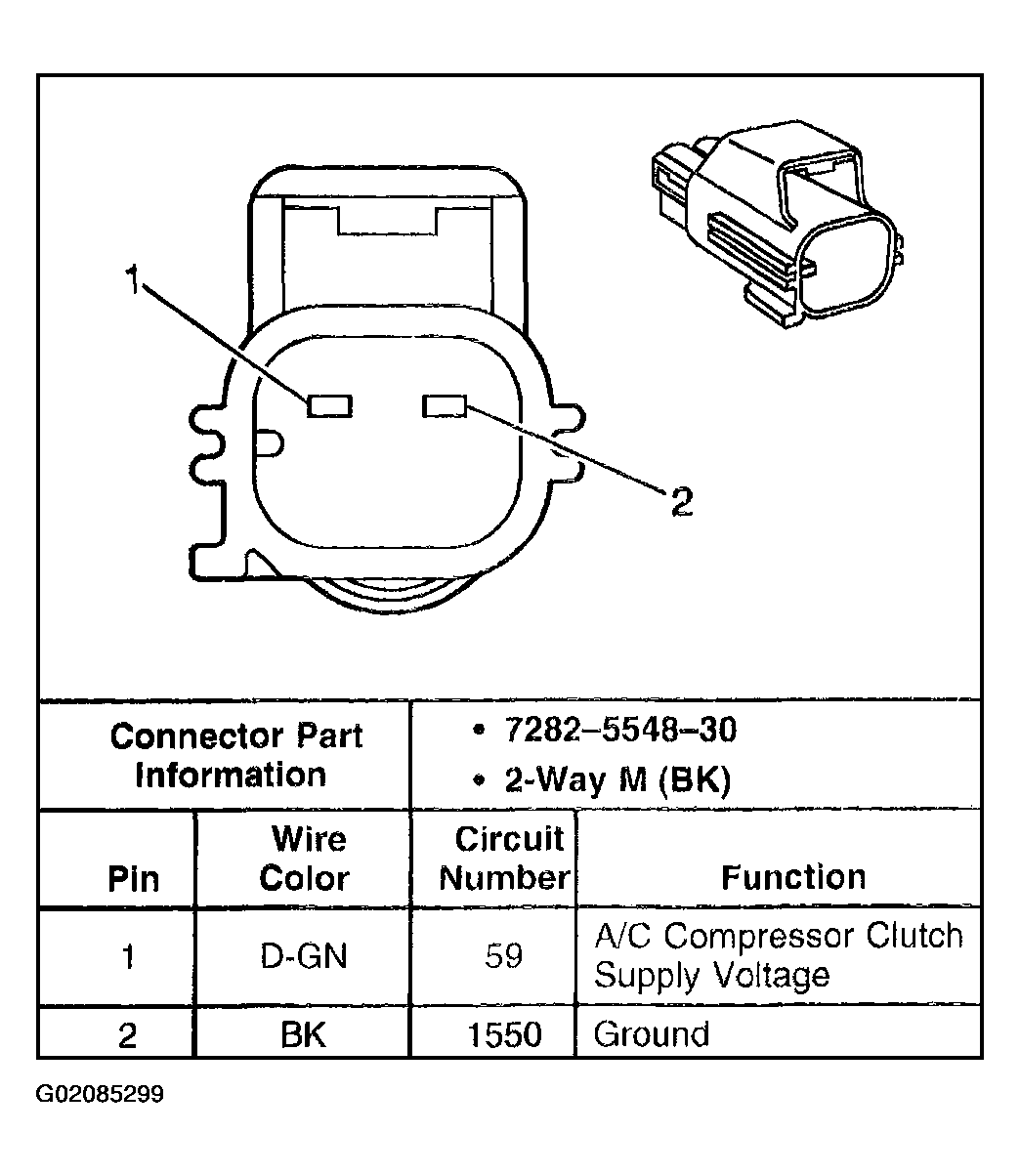

Fig 1: A/C Compressor Clutch

Courtesy of GENERAL MOTORS CORP.

Fig 2: A/C Refrigerant Pressure Sensor

Courtesy of GENERAL MOTORS CORP.

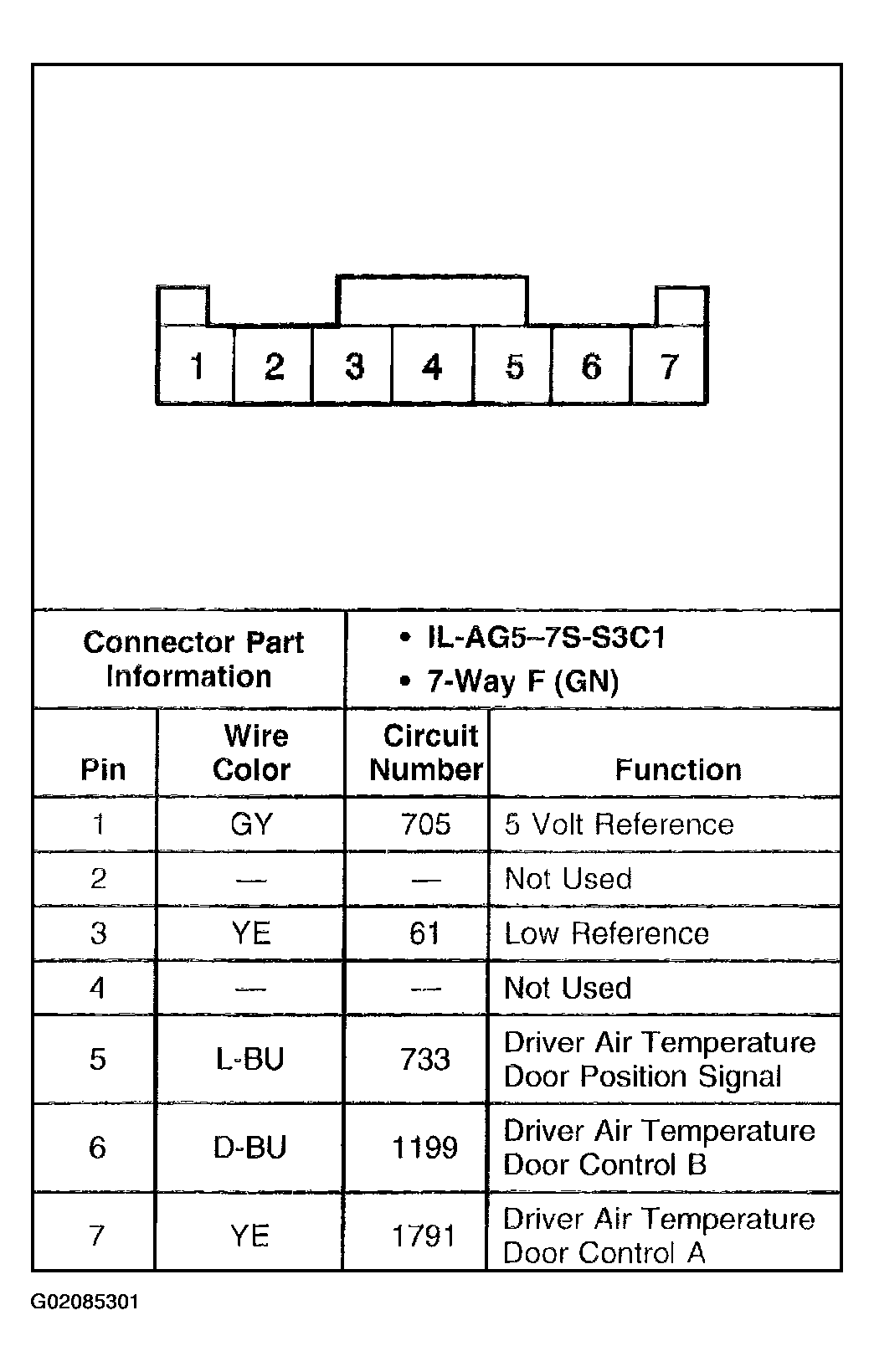

Fig 3: Air Temperature Actuator - Driver

Courtesy of GENERAL MOTORS CORP.

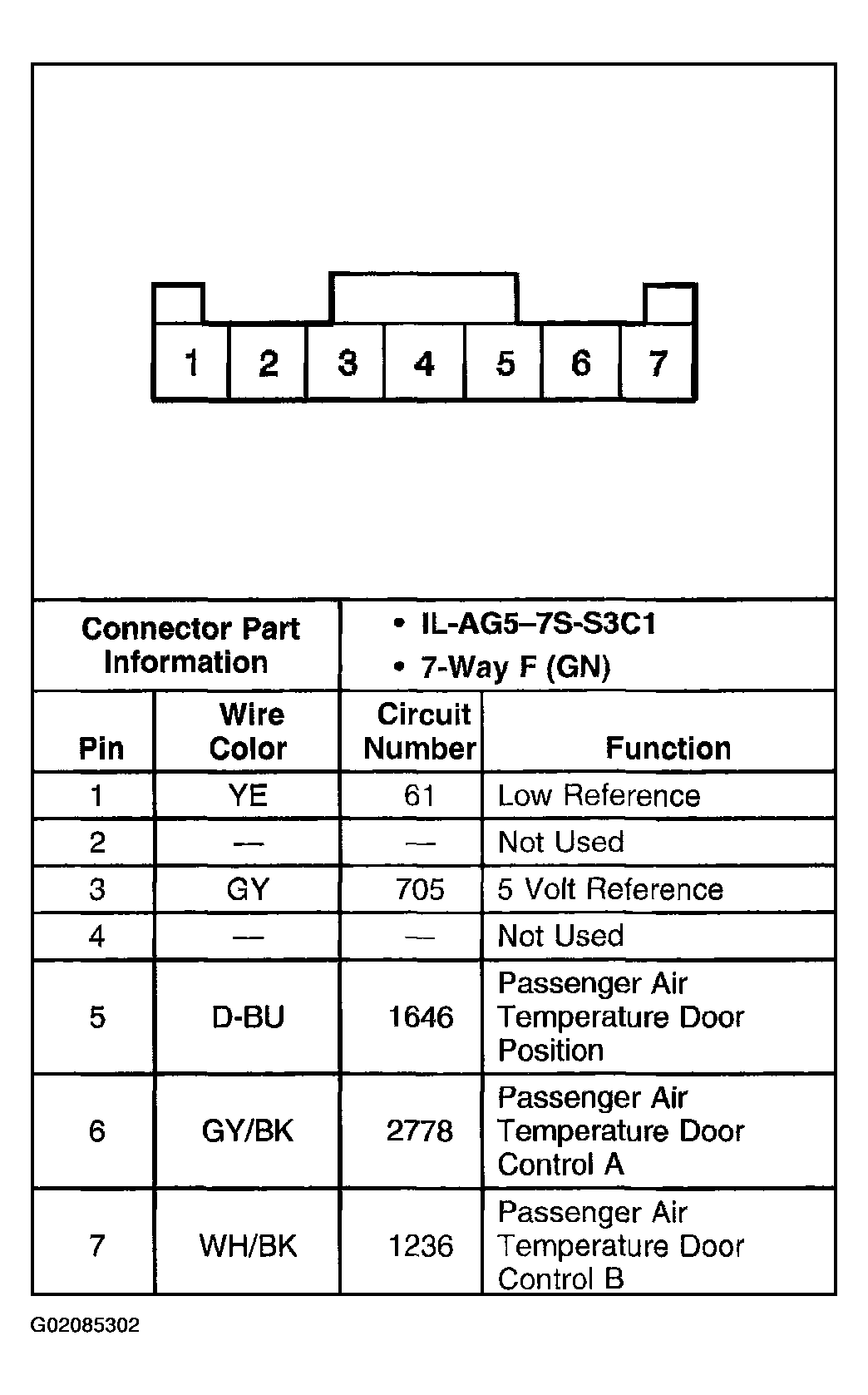

Fig 4: Air Temperature Actuator - Passenger

Courtesy of GENERAL MOTORS CORP.

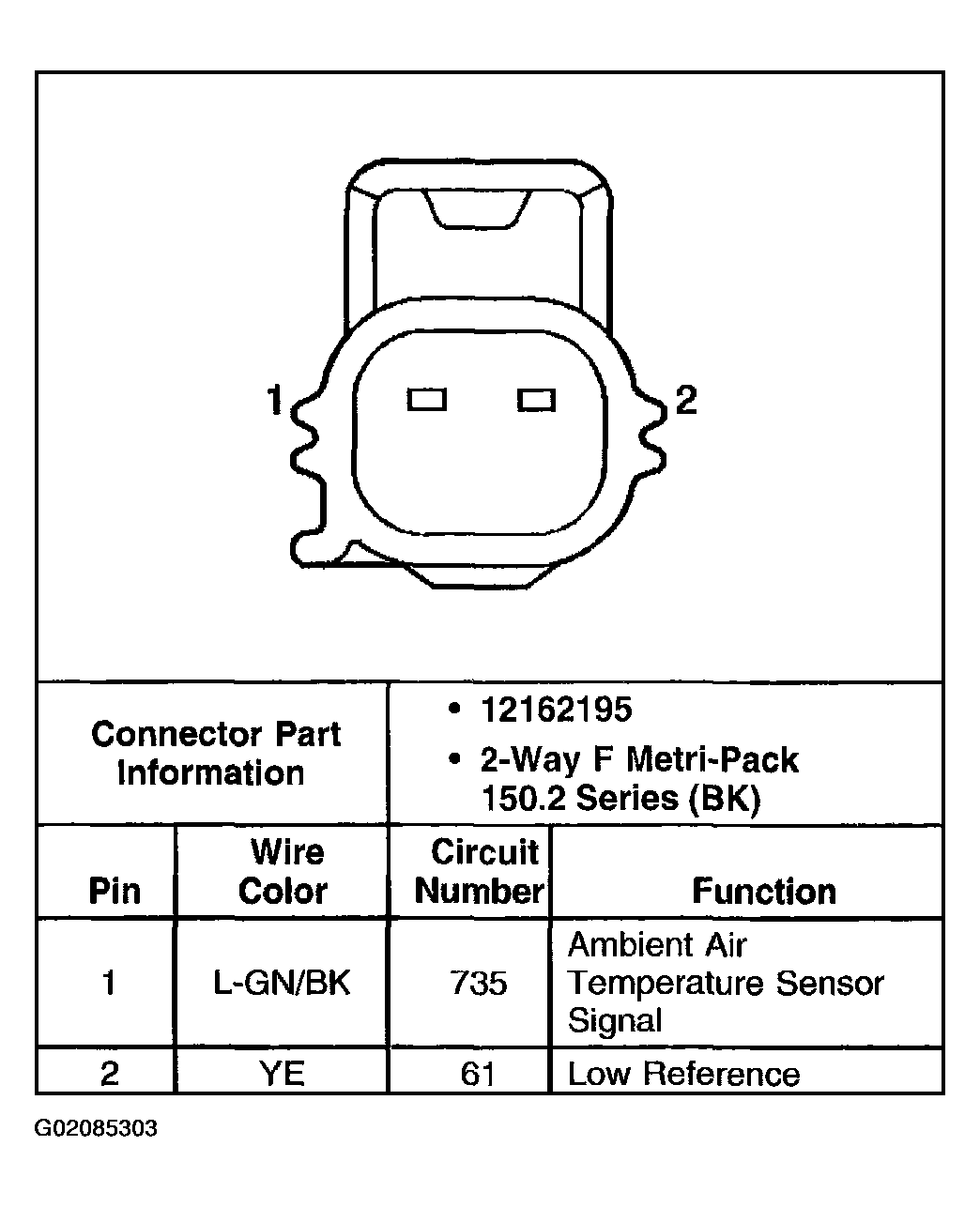

Fig 5: Ambient Air Temperature Sensor - Outside

Courtesy of GENERAL MOTORS CORP.

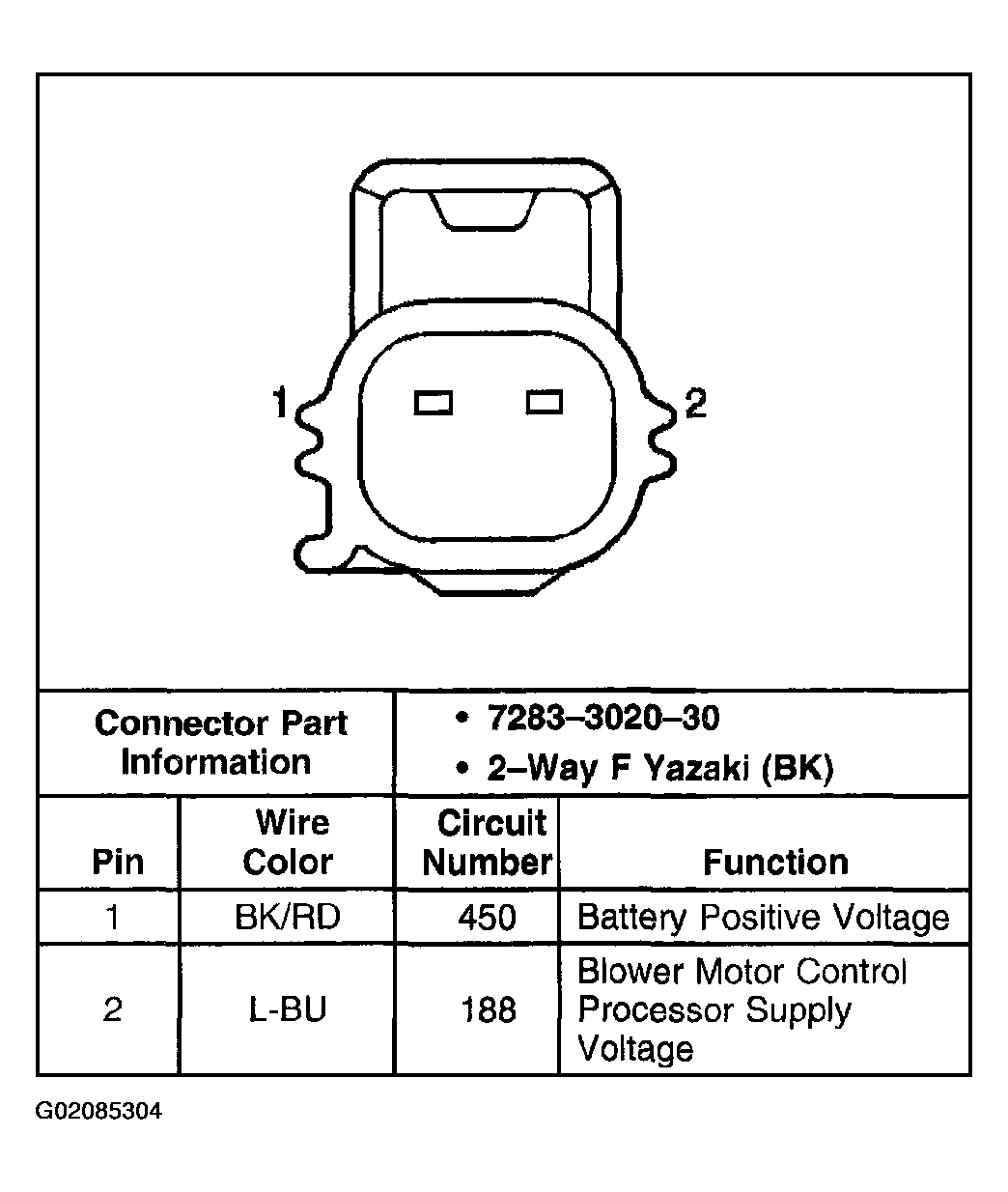

Fig 6: Blower Motor

Courtesy of GENERAL MOTORS CORP.

Fig 7: Blower Motor Control Processor

Courtesy of GENERAL MOTORS CORP.

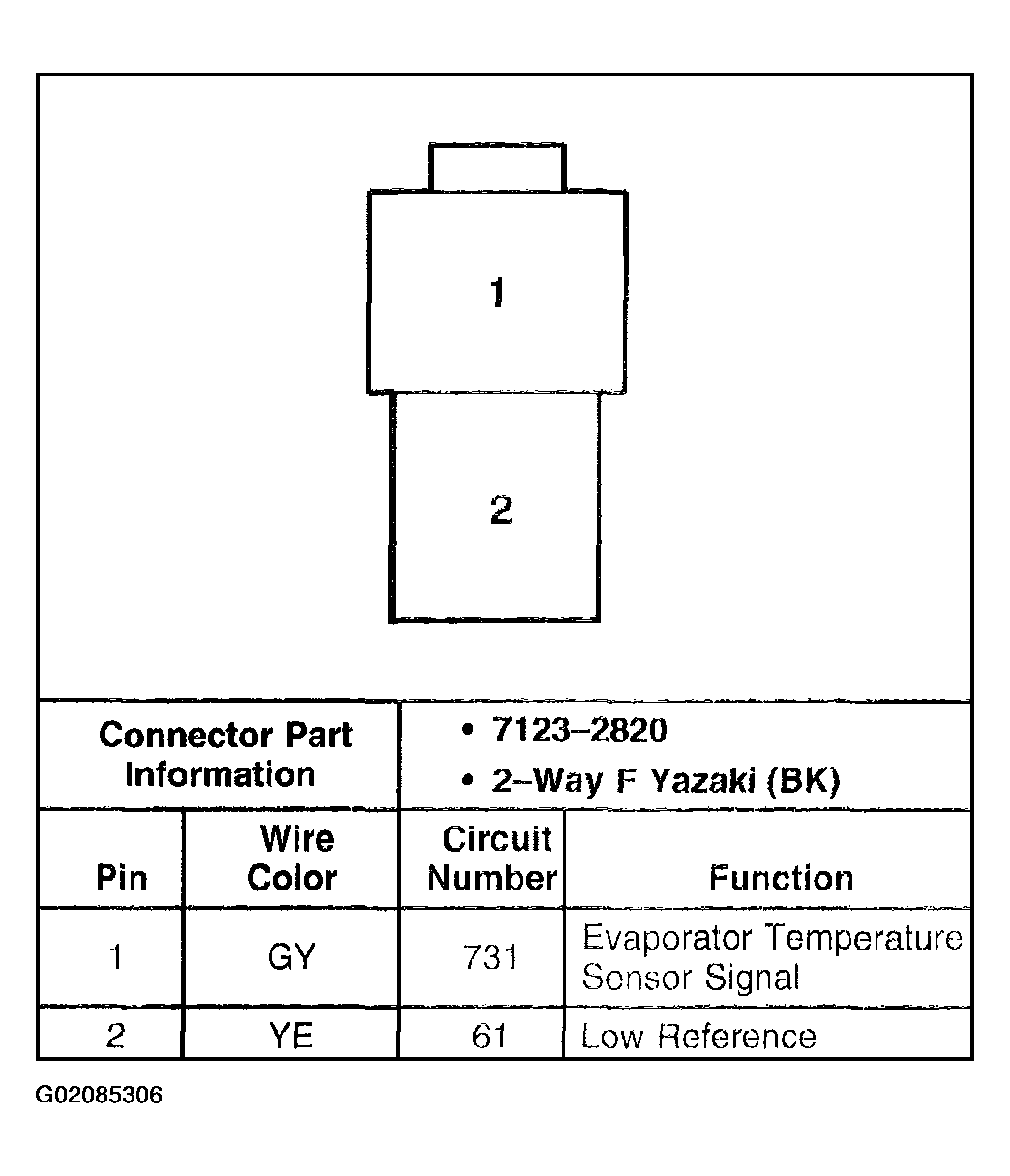

Fig 8: Evaporator Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 9: HVAC Control Module (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 10: HVAC Control Module (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

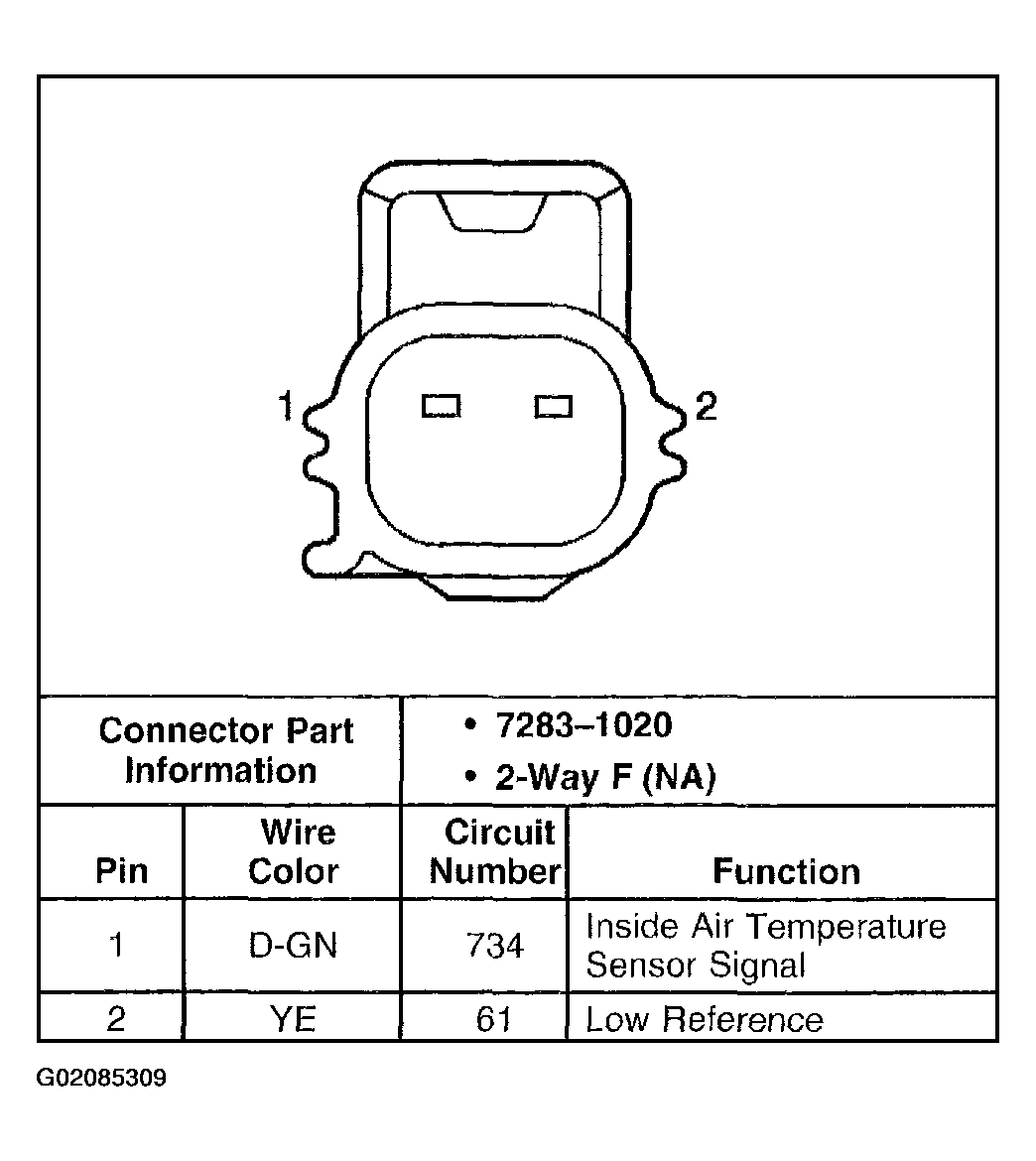

Fig 11: Air Temperature Sensor - Inside

Courtesy of GENERAL MOTORS CORP.

Fig 12: Mode Actuator

Courtesy of GENERAL MOTORS CORP.

Fig 13: Sunload Sensor Assembly

Courtesy of GENERAL MOTORS CORP.
