Scan Tool Output Controls

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

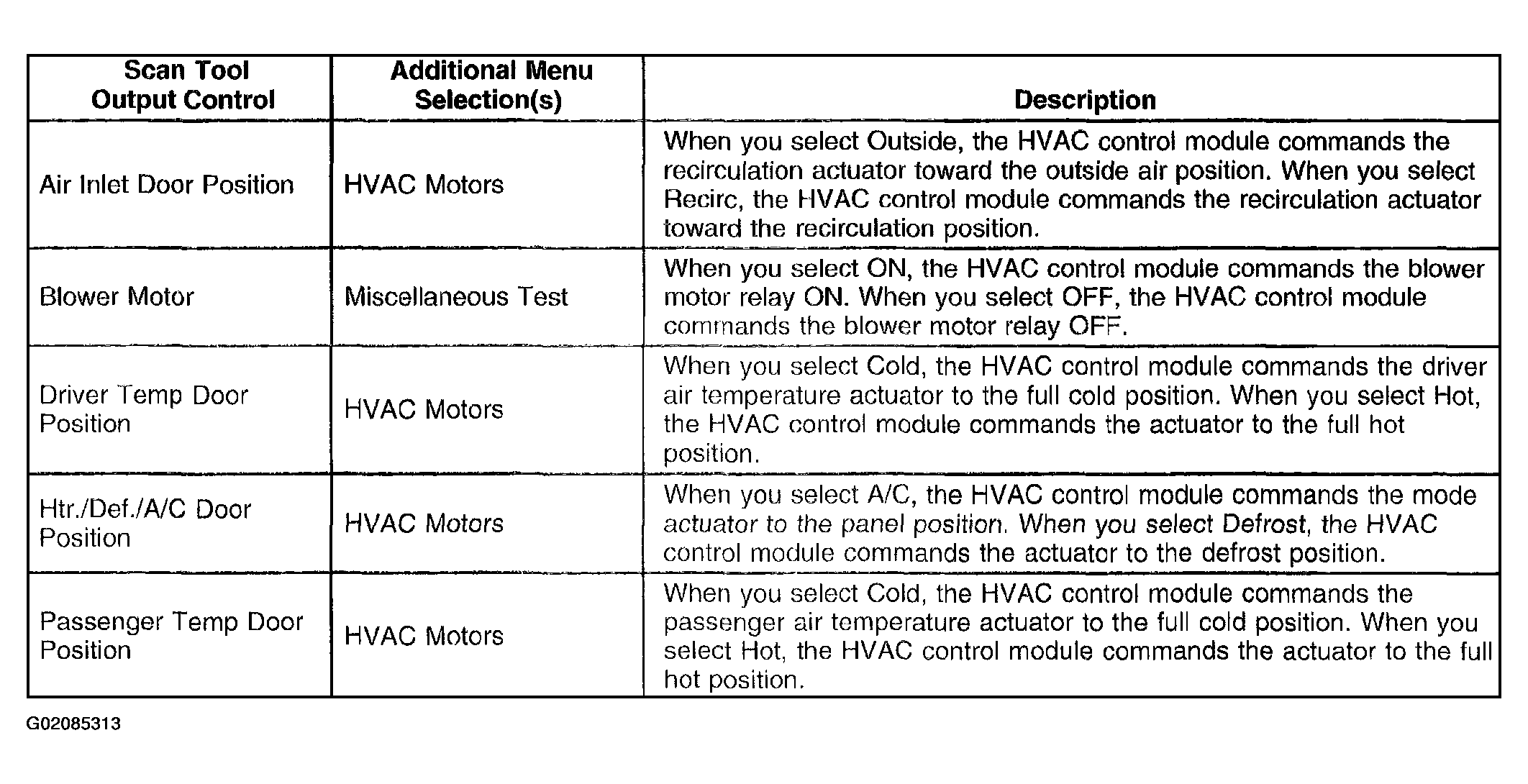

Fig 1: HVAC Control Module Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.

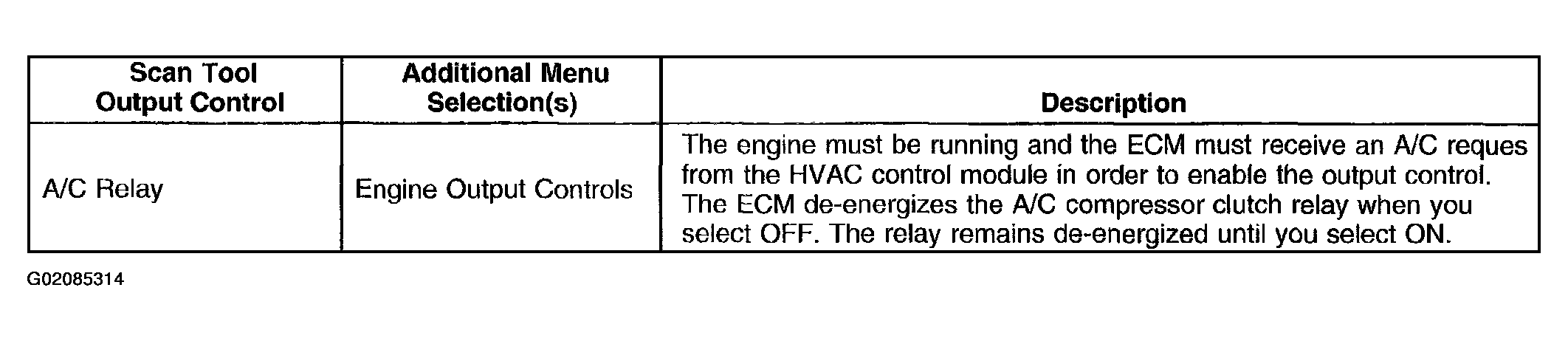

Fig 2: ECM Scan Tool Output Controls

Courtesy of GENERAL MOTORS CORP.
