Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Install the blower motor control processor.
NOTE: Refer to FASTENER NOTICE .
Install the blower motor control processor retaining screw.
Tighten

Tighten the screw to 1 N.m (9 lb in).

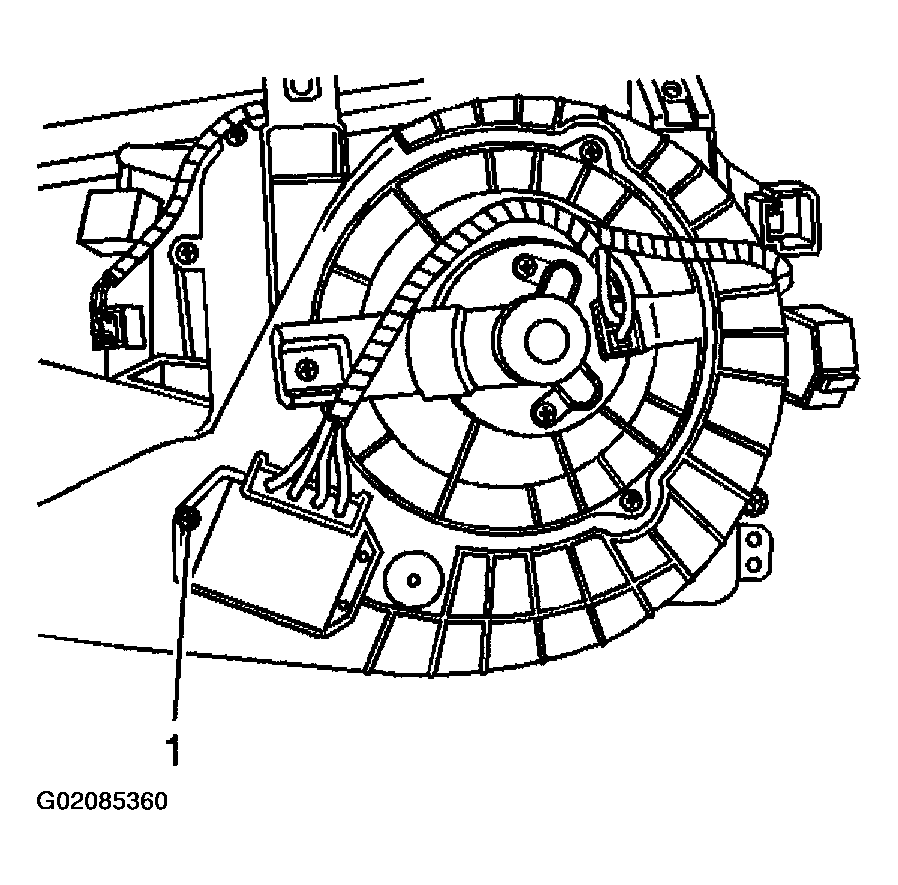

Fig 1: Blower Motor Control Processor Retaining Screw
Courtesy of GENERAL MOTORS CORP.
Connect the electrical connector to the blower motor control processor.
Install the right sound insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT -- RIGHT in IP, Gages, and Console.

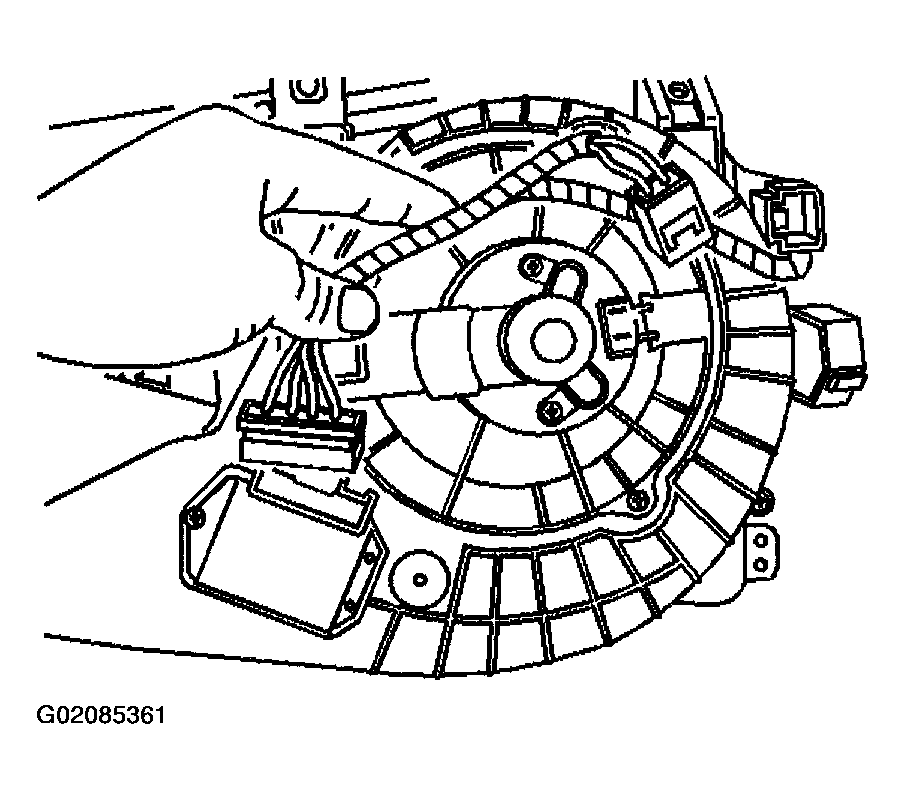

Fig 2: Electrical Connector To Blower Motor Control Processor
Courtesy of GENERAL MOTORS CORP.
