Installation Procedure
WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the sunload sensor electrical connector.

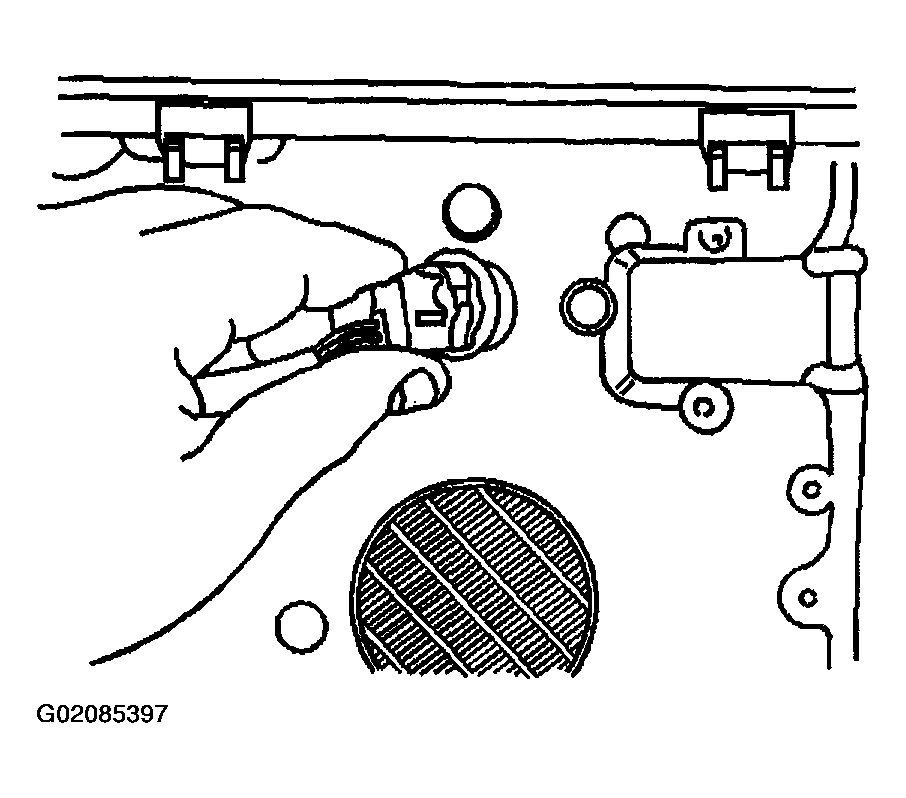

- Install the sunload sensor to the defroster grille by twisting the sensor 1/4 turn clockwise.
- Install the defroster grille. Refer to DEFROSTER GRILLE REPLACEMENT in Instrument Panel, Gages and Console.
