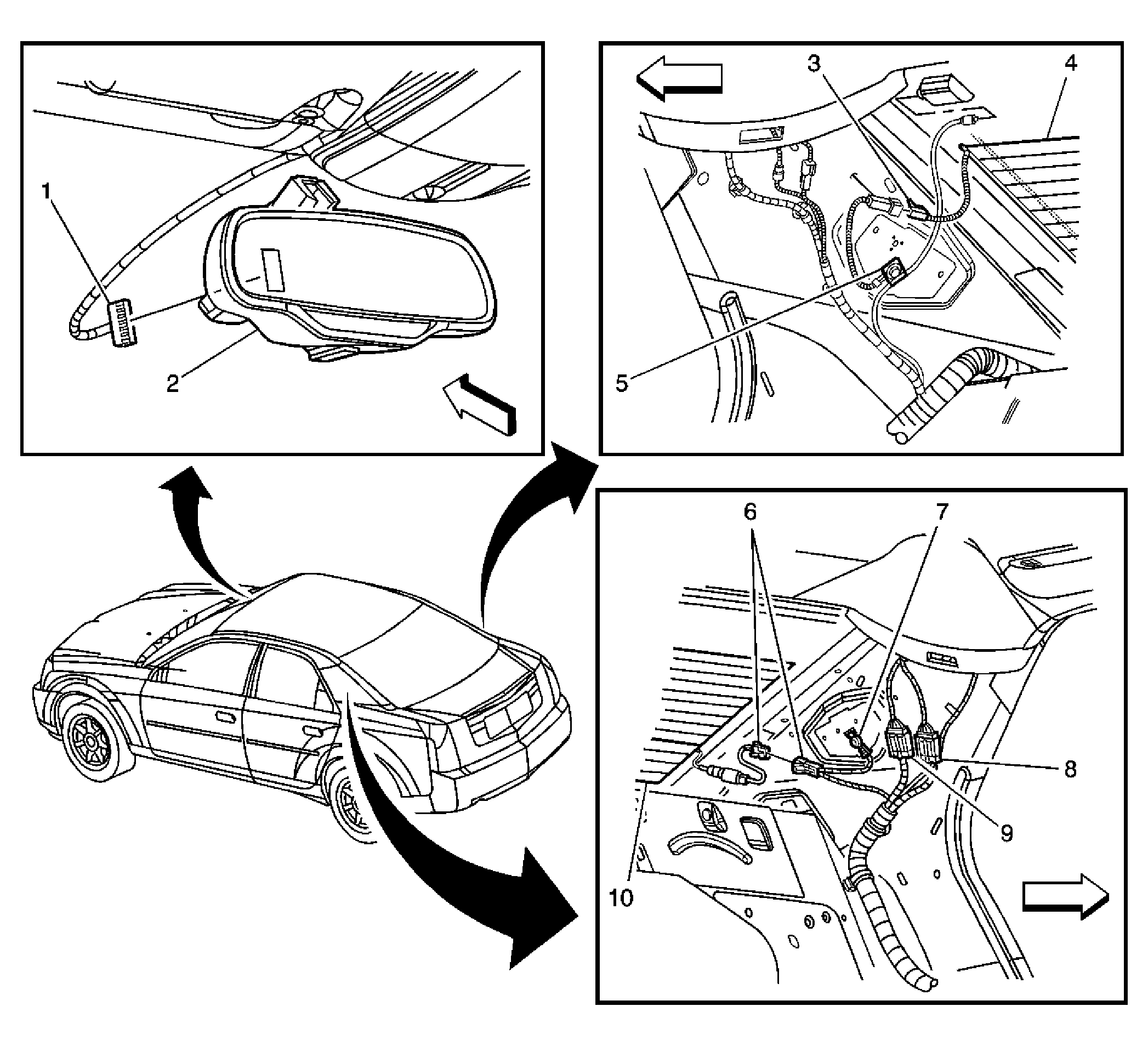

Stationary Windows Component Views
WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inside Rearview Mirror (ISRVM) Connector |
| 2 |
Inside Rearview Mirror (ISRVM) |
| 3 |
Rear Window Defogger Connector C2 |
| 4 |
Rear Window Defogger Grid |
| 5 |
Ground G304 |
| 6 |
Rear Window Defogger Connector C1 |
| 7 |
Ground G303 |
| 8 |
C305 |
| 9 |
C308 |
| 10 |
Rear Window Defogger Grid |
