Steering Wheel Controls Schematics

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

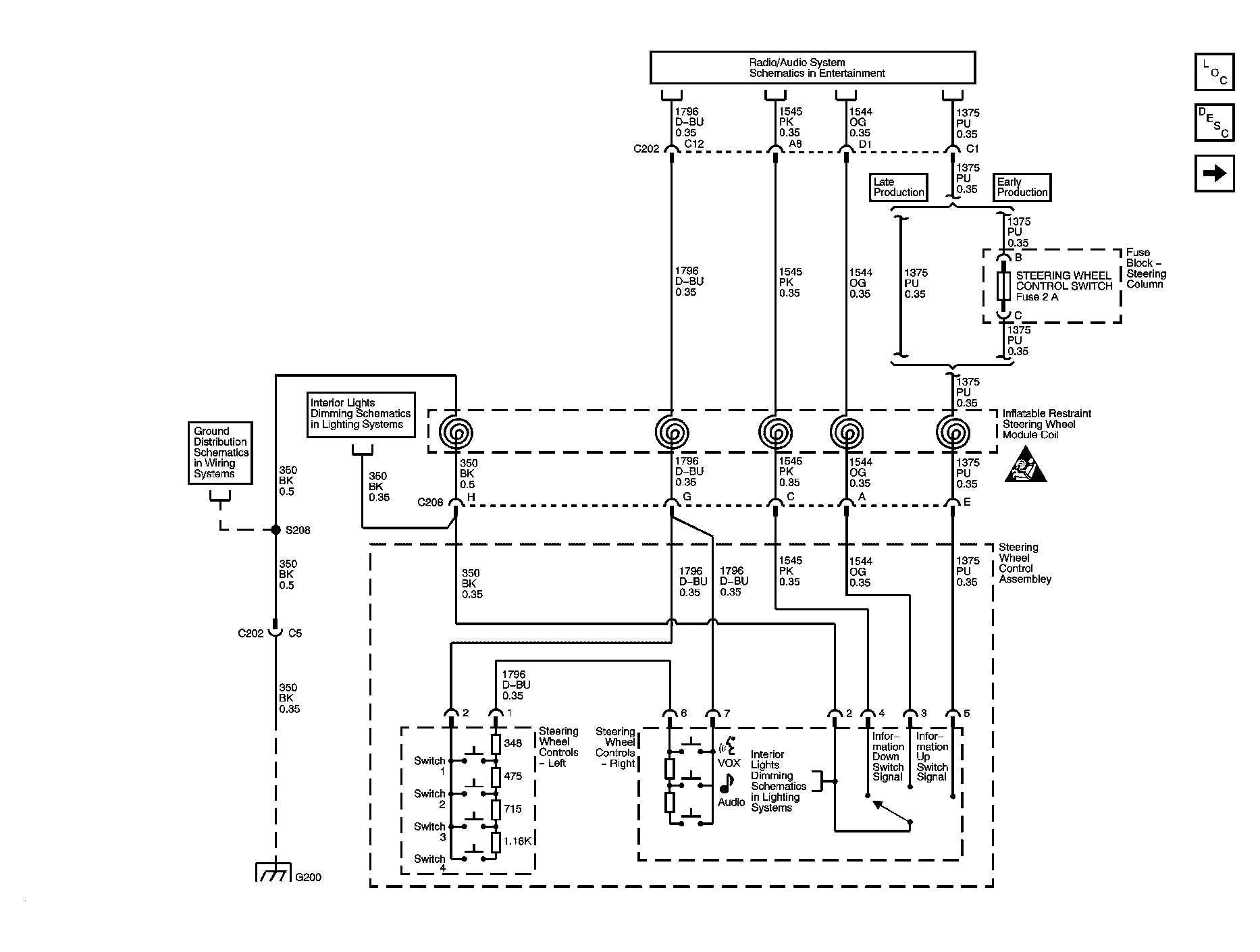

Fig 1: Steering Wheel Controls - 2.6L/3.2L/3.6L (LY9/LA3/LY7)

Courtesy of GENERAL MOTORS CORP.

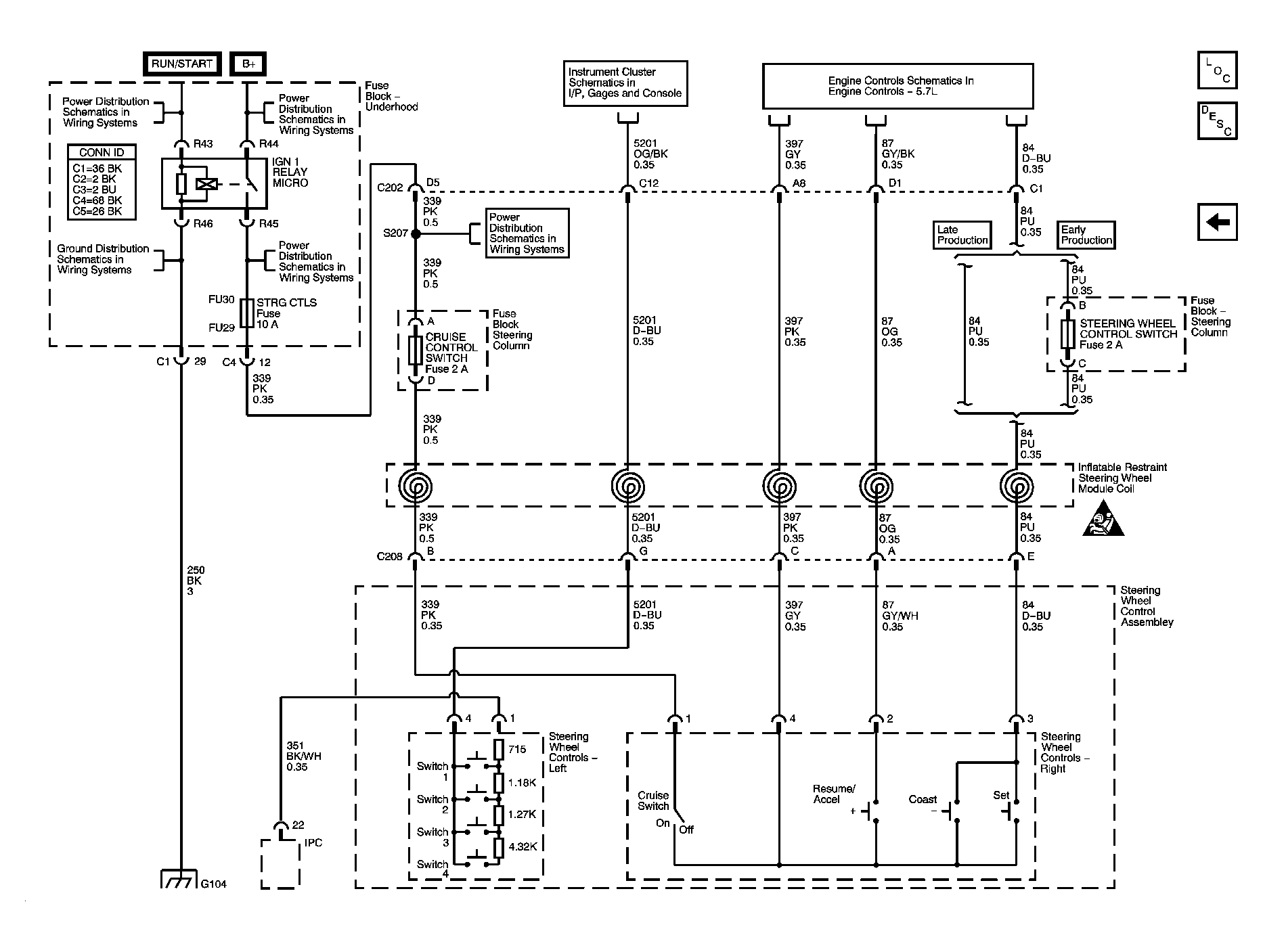

Fig 2: Steering Wheel Controls - 5.7L (LS6)

Courtesy of GENERAL MOTORS CORP.
