Removal Procedure
WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
- Turn OFF the ignition.
- Remove the center console. Refer to Console Replacement - Front Floor in Instrument Panel, Gages, and Console.
- Disconnect the yaw rate sensor/lateral accelerometer sensor electrical connector.

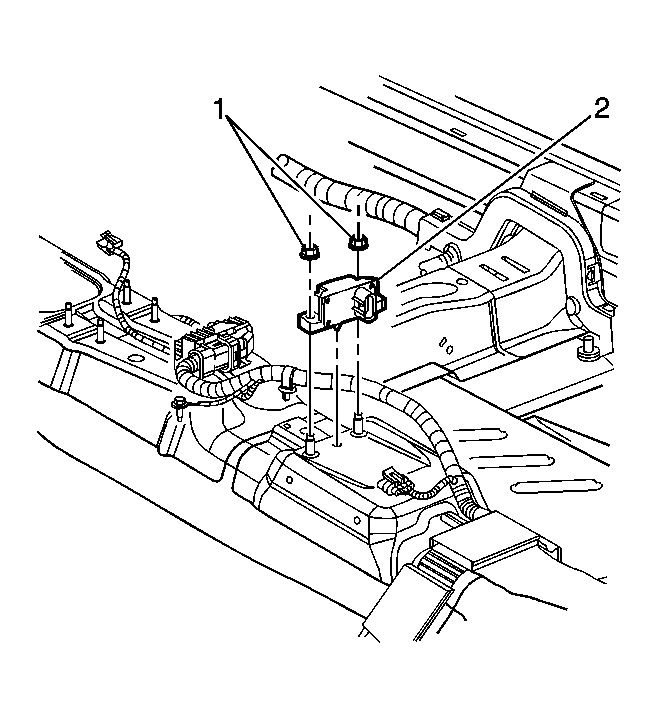

- Remove the yaw rate sensor/lateral accelerometer sensor mounting nuts (1) from the mounting studs.
- Remove the yaw rate sensor/lateral accelerometer sensor from the vehicle.
