SIR Component Views
WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

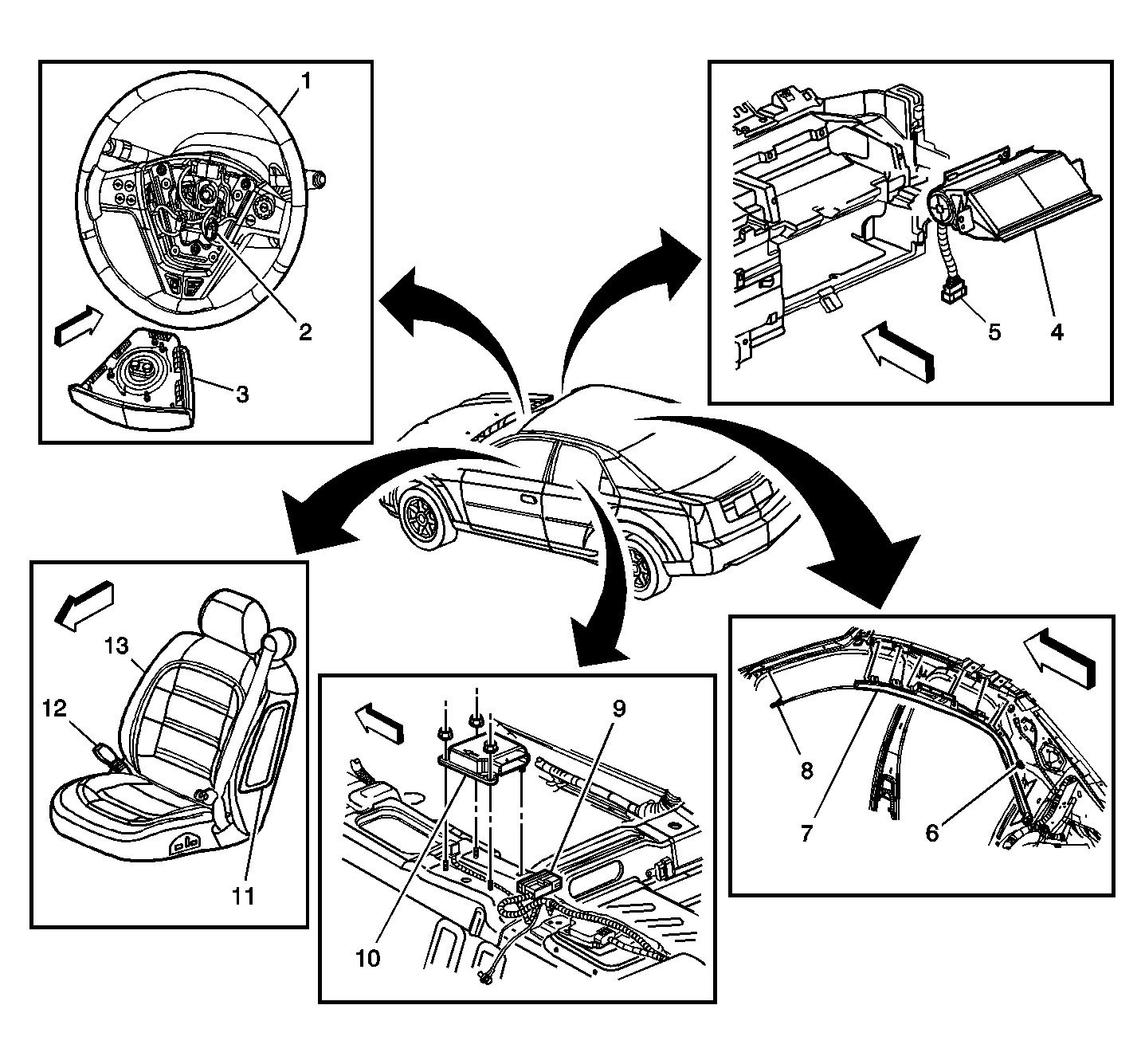

| Callout | Component Name |
|---|---|
| 1 | Steering Wheel |
| 2 | Inflatable Restraint Steering Wheel Module Connectors |
| 3 | Inflatable Restraint Steering Wheel Module |
| 4 | Inflatable Restraint I/P Module |
| 5 | Inflatable Restraint I/P Module Connector |
| 6 | Inflatable Restraint Roof Rail Module - Passenger Connector (Driver Similar) |
| 7 | Inflatable Restraint Roof Rail Module - Passenger (Driver Similar) |
| 8 | Inflatable Restraint Roof Rail Module Tether - Passenger (Driver Similar) |
| 9 | Inflatable Restraint Sensing and Diagnostic Module (SDM) Connector |
| 10 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 11 | Inflatable Restraint Side Impact Module - Driver (Passenger Similar) |
| 12 | Seat Belt Pretensioner - Driver (Passenger Similar) and Seat Belt Switch - Driver |
| 13 | Driver Seat (Passenger Similar) |

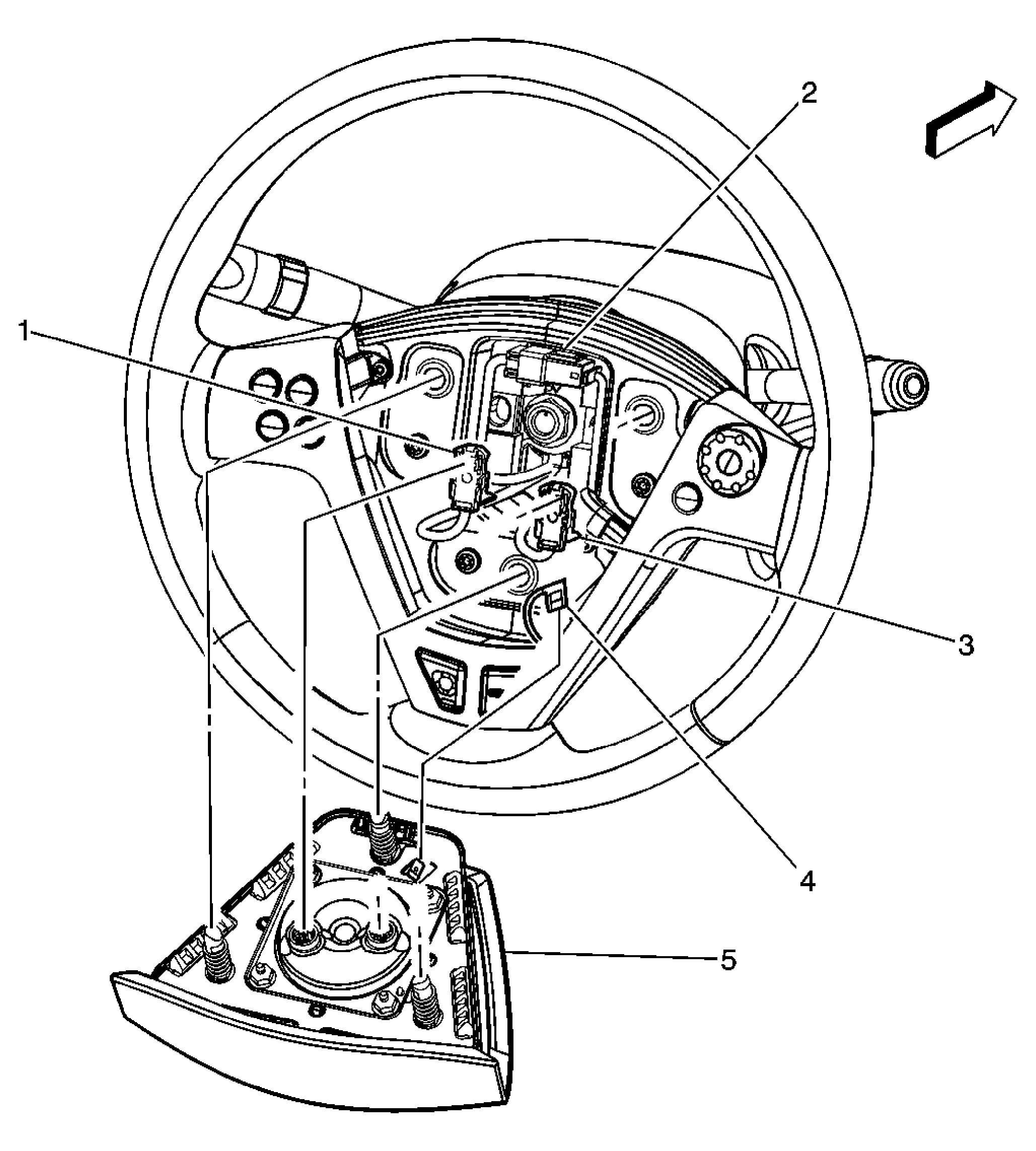

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Steering Wheel Module Connector C1 |
| 2 | C208 |
| 3 | Inflatable Restraint Steering Wheel Module Connector C2 |
| 4 | Horn Switch Ground Connection |
| 5 | Inflatable Restraint Steering Wheel Module |

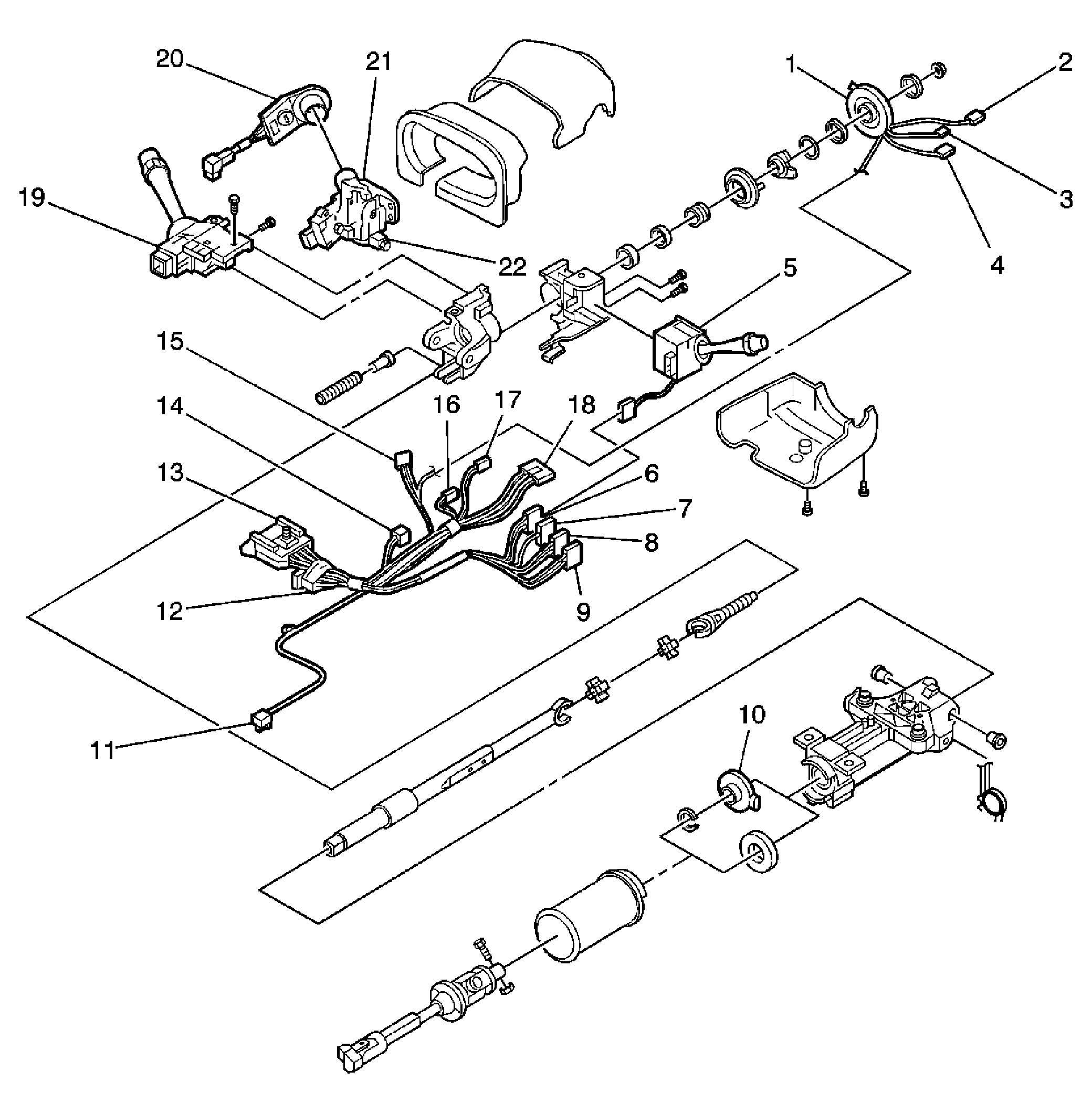

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Steering Wheel Module Coil |
| 2 | C208 |
| 3 | Inflatable Restraint Steering Wheel Module Connector C1 |
| 4 | Inflatable Restraint Steering Wheel Module Connector C2 |
| 5 | Turn Signal/Multifunction Switch |
| 6 | Turn Signal/Multifunction Switch Connector C4 (LY9/LA3/LY7) |
| 7 | Turn Signal/Multifunction Switch Connector C3 |
| 8 | Turn Signal/Multifunction Switch Connector C2 |
| 9 | Turn Signal/Multifunction Switch Connector C1 |
| 10 | Steering Wheel Position Sensor |
| 11 | C203 |
| 12 | Fuse Block - Steering Column |
| 13 | C202 |
| 14 | Theft Deterrent Control Module Connector |
| 15 | Ignition Lock Cylinder Control Actuator Connector |
| 16 | Ignition Switch Connector |
| 17 | Ignition Key Alarm Switch (Part of steering column harness) |
| 18 | Windshield Wiper/Washer Switch Connector |
| 19 | Windshield Wiper/Washer Switch |
| 20 | Theft Deterrent Control Module |
| 21 | Ignition Switch (Hidden) and Ignition Lock Cylinder Case |
| 22 | Ignition Lock Cylinder Control Actuator |

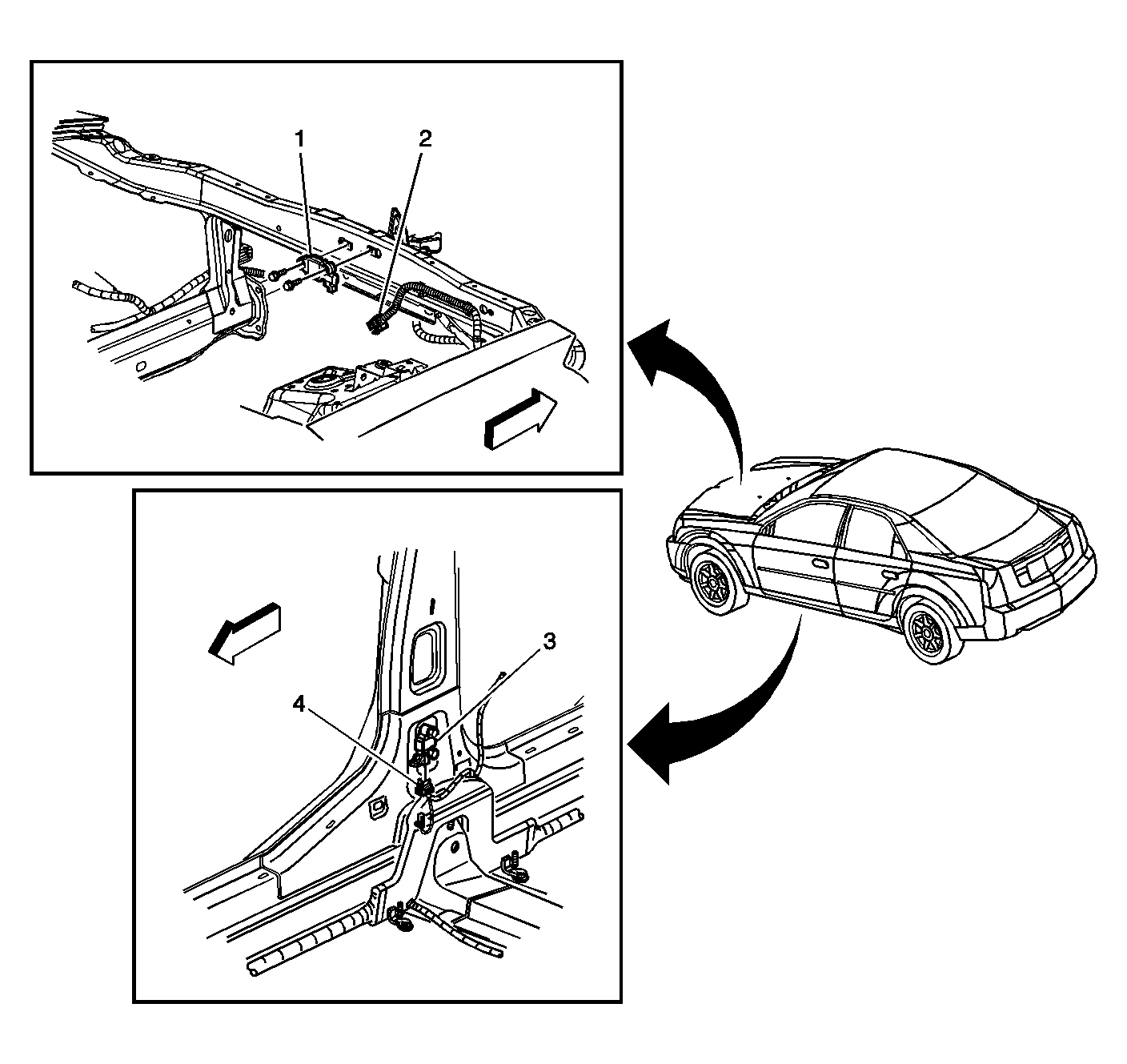

| Callout | Component Name |
|---|---|
| 1 | Inflatable Restraint Front End Discriminating Sensor |
| 2 | Inflatable Restraint Front End Discriminating Sensor Connector |
| 3 | Inflatable Restraint Side Impact Sensing Module (SISM) - Passenger (Driver Similar) |
| 4 | Inflatable Restraint Side Impact Sensing Module (SISM) - Passenger Connector (Driver Similar) |
