Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Position the front air deflector to the vehicle.
Install the push-in retainers to secure the air deflector to the engine cradle.

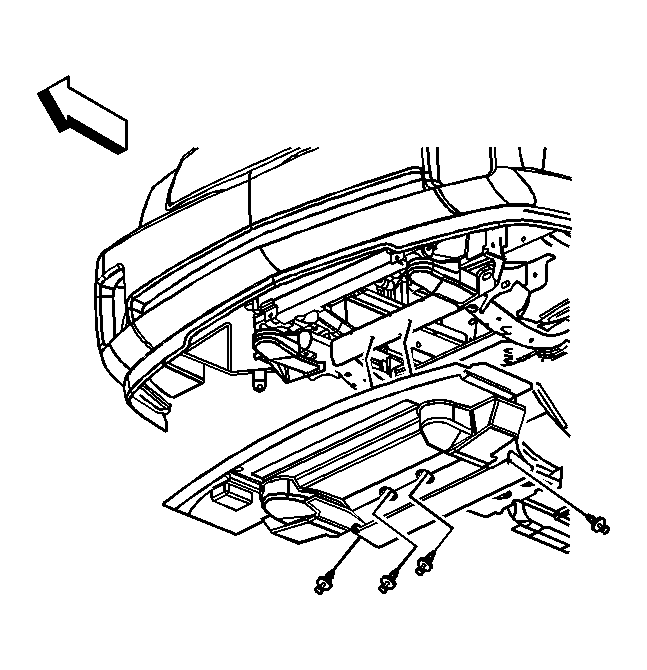

Fig 1: Removing & Installing Air Deflector-To-Engine Cradle Push-In Retainers
Courtesy of GENERAL MOTORS CORP.
Install the push-in retainers to secure the front of the air deflector to the fascia.

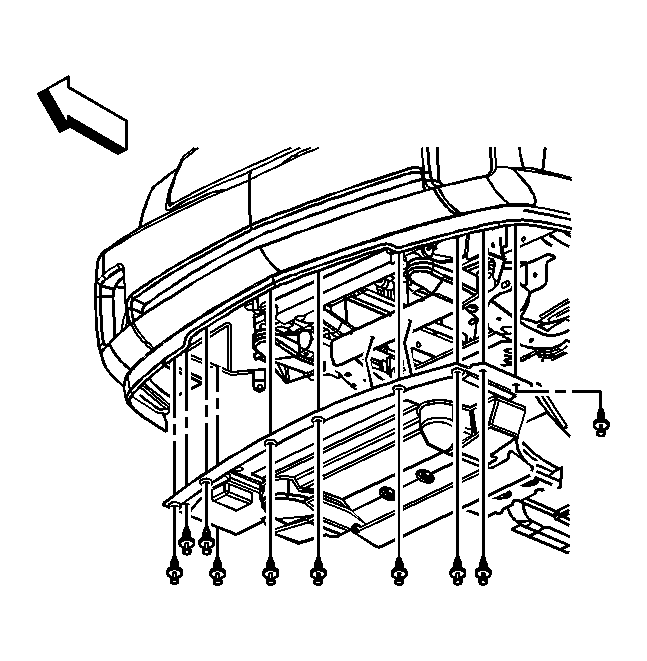

Fig 2: Removing & Installing Air Deflector-To-Fascia Push-In Retainers
Courtesy of GENERAL MOTORS CORP.
Lower the vehicle.
