Installation Procedure

WARNING: This page is about a different car, the 2004 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Installing Trailing Arm

Courtesy of GENERAL MOTORS CORP.

Install the trailing arm.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the trailing arm to the frame mounting bolt and nut.
Tighten: Tighten the nut to 90 N.m (66 lb ft).

Fig 2: Removing Support From Frame

Courtesy of GENERAL MOTORS CORP.

Remove the support from the frame and raise the frame into position.

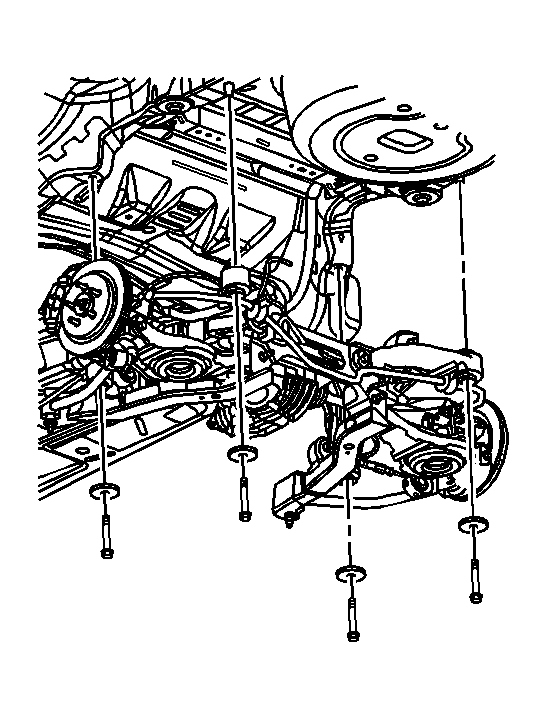

Fig 3: Installing Front Bolts In Rear Frame

Courtesy of GENERAL MOTORS CORP.

Install the front bolts in the rear frame.
Tighten: Tighten the bolts to 265 N.m (195 lb ft).

Fig 4: Installing Trailing Arm To Knuckle Mounting Bolt And Nut

Courtesy of GENERAL MOTORS CORP.

Install the trailing arm to the knuckle mounting bolt and nut.
Tighten: Tighten the bolt to 175 N.m (129 lb ft).

Fig 5: Installing Brake Pipe Bracket To Mounting Studs

Courtesy of GENERAL MOTORS CORP.

Install the brake pipe bracket (2) to the mounting studs (1).
Install the brake pipe bracket retaining nuts.
Tighten: Tighten the nuts to 10 N.m (89 lb in).

Fig 6: View Of Lower Control Arm-To-Knuckle Mounting Bolt

Courtesy of GENERAL MOTORS CORP.

Connect the lower control arm to the knuckle.
Install the lower control arm to the knuckle mounting bolt.
Tighten: Tighten the lower control arm to the knuckle mounting bolt to 175 N.m (129 lb ft).
Install the tire and wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle.
