Installation Procedure

WARNING: This page is about a different car, the 2003 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission support to the vehicle.

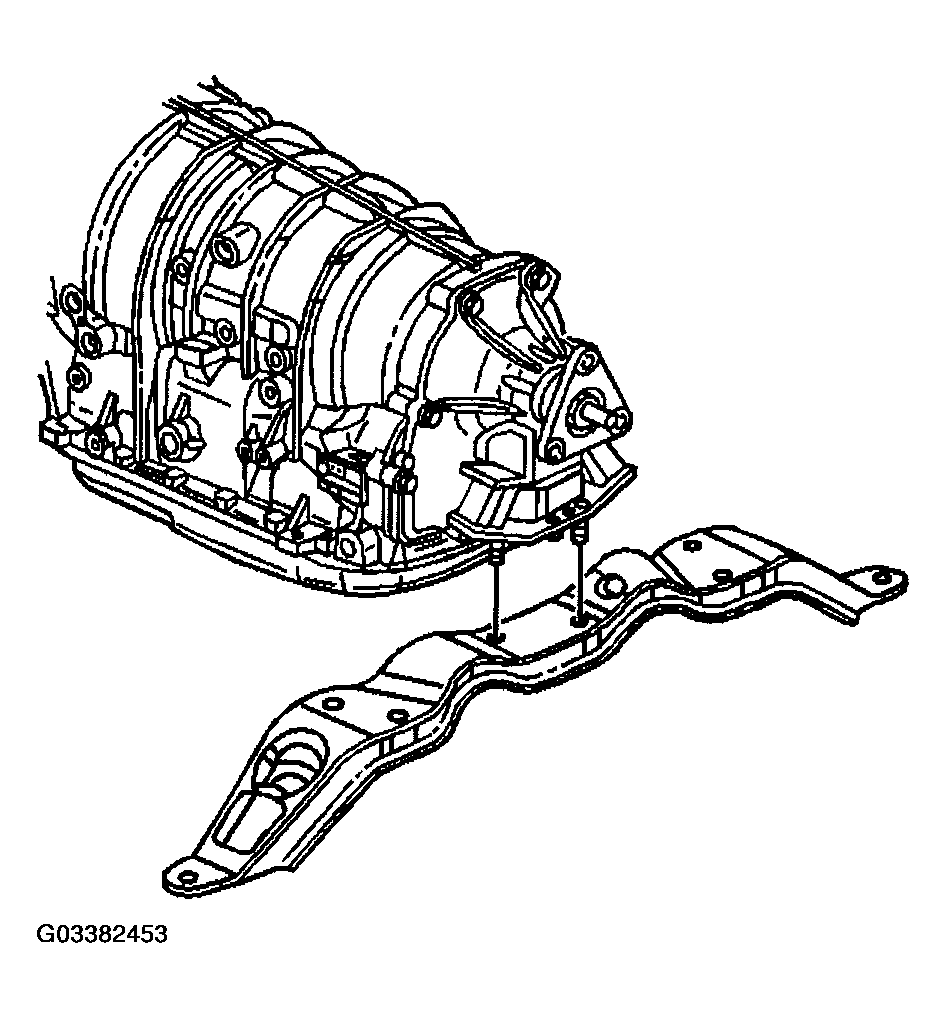

    Fig 1: Installing Transmission Support To Vehicle
    G03382453Courtesy of GENERAL MOTORS CORP.
  2. Install the inner transmission support mounting bolts. Do not tighten at this time.

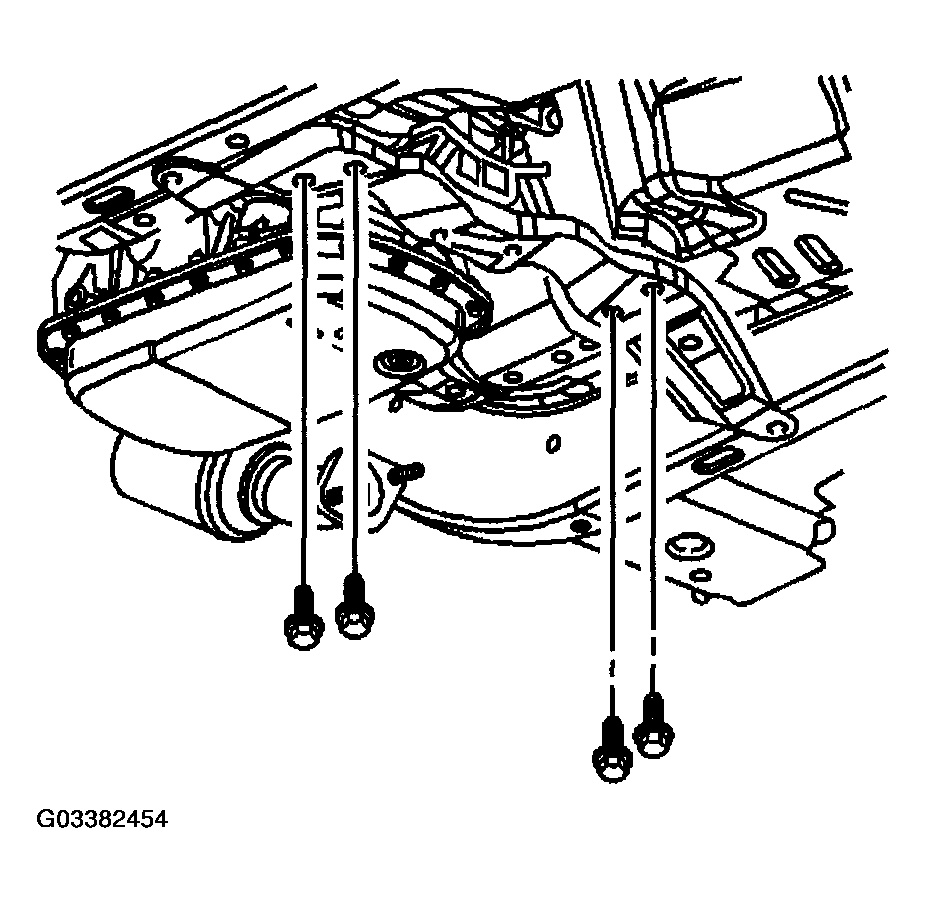

    Fig 2: Installing Inner Transmission Support Mounting Bolts
    G03382454Courtesy of GENERAL MOTORS CORP.
  3. Install the outer transmission mounting bolts.

    Tighten

    Tighten the support bolt to 60 N.m (44 lb ft).

  4. Remove the screw jack.

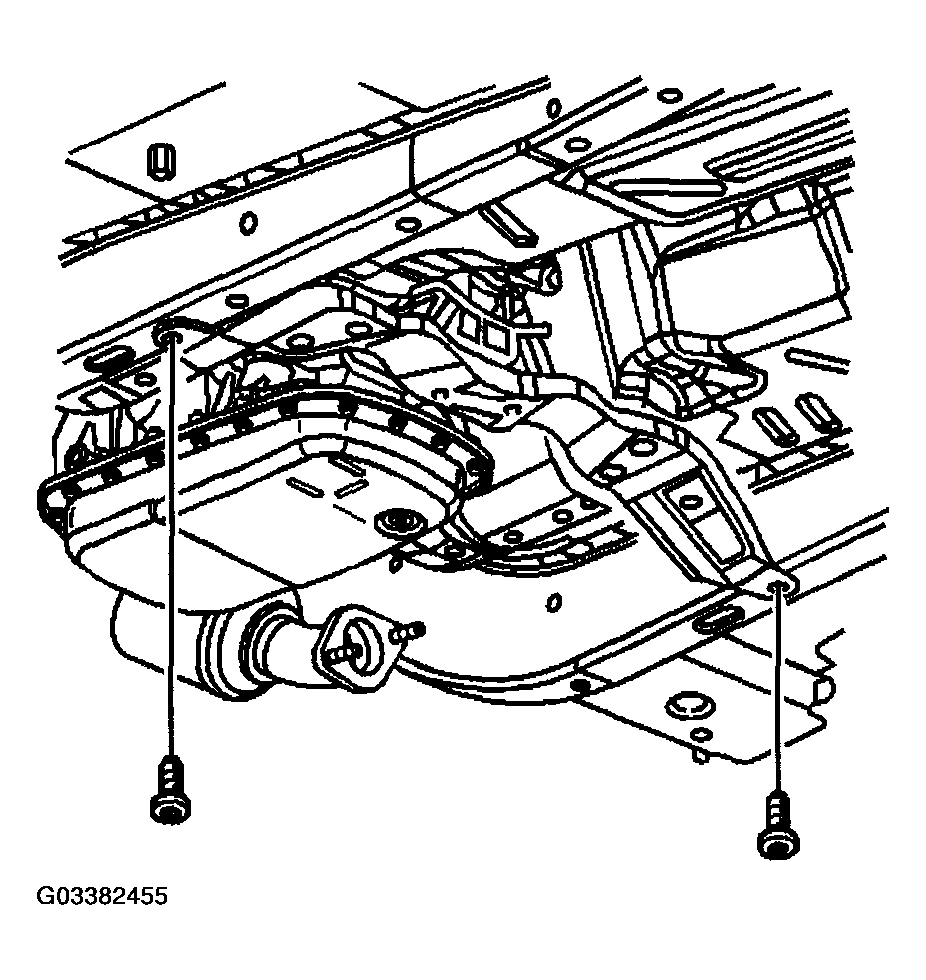

    Fig 3: Installing Outer Transmission Mounting Bolts
    G03382455Courtesy of GENERAL MOTORS CORP.
  5. Install the transmission mount lower mounting nuts.

    Tighten

    Tighten the nuts to 60 N.m (44 lb ft).

  6. Install the exhaust system to the catalytic converters. Refer to EXHAUST SYSTEM REPLACEMENT in Engine Exhaust.
  7. Remove the support from the exhaust system.
  8. Lower the vehicle.

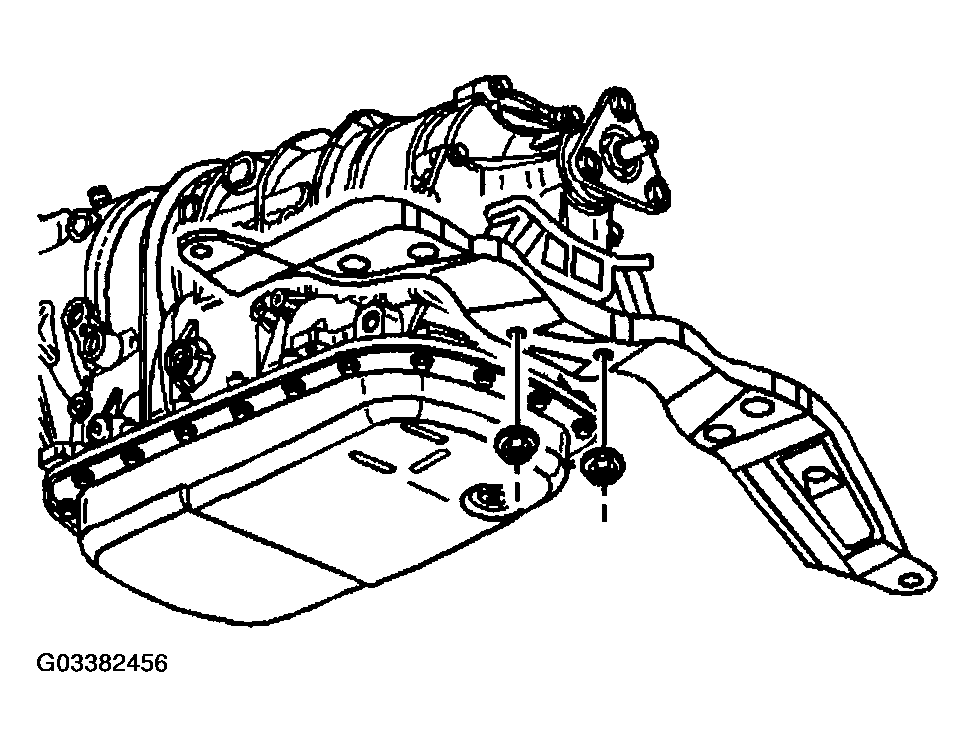

    Fig 4: Installing Transmission Mount Lower Mounting Nuts
    G03382456Courtesy of GENERAL MOTORS CORP.
