Removal Procedure

  1. Remove the rear wheel steering control module (2) from the bracket. Refer to Rear Wheel Steering Control Module Replacement .
  2. Remove the nuts retaining the bracket to the frame.
  3. Remove the bracket from the vehicle.

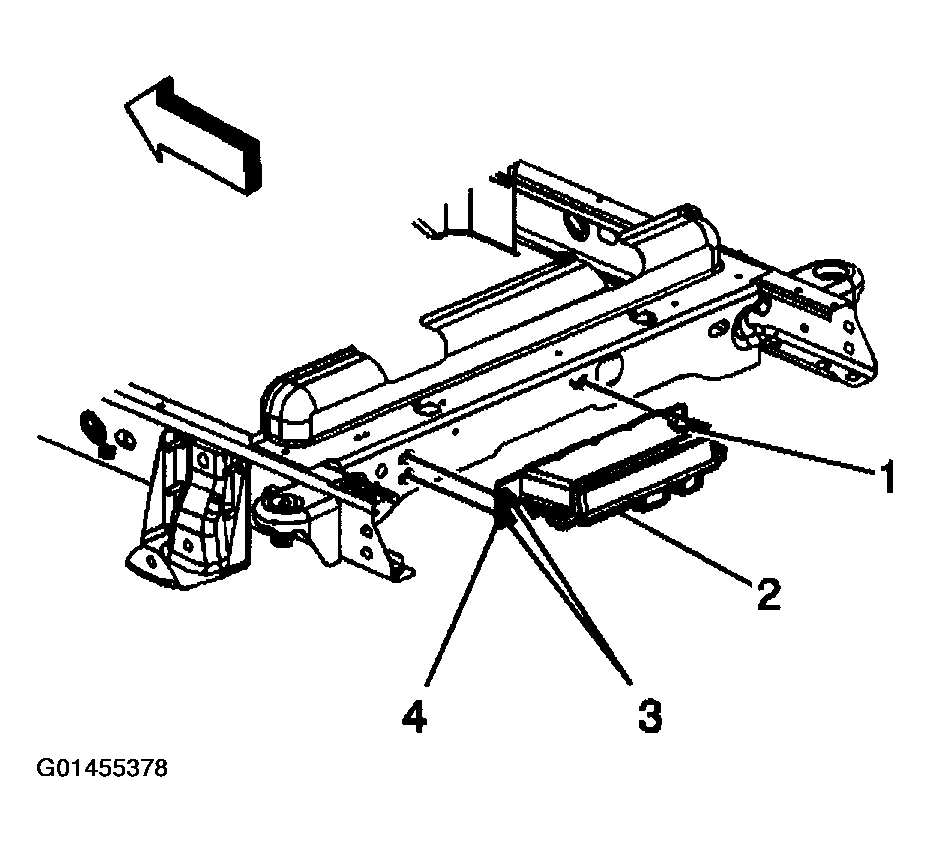

    Fig 1: Removing Rear Wheel Steering Control Module
    G01455378Courtesy of GENERAL MOTORS CORP.
