Power Steering Fluid Leaks

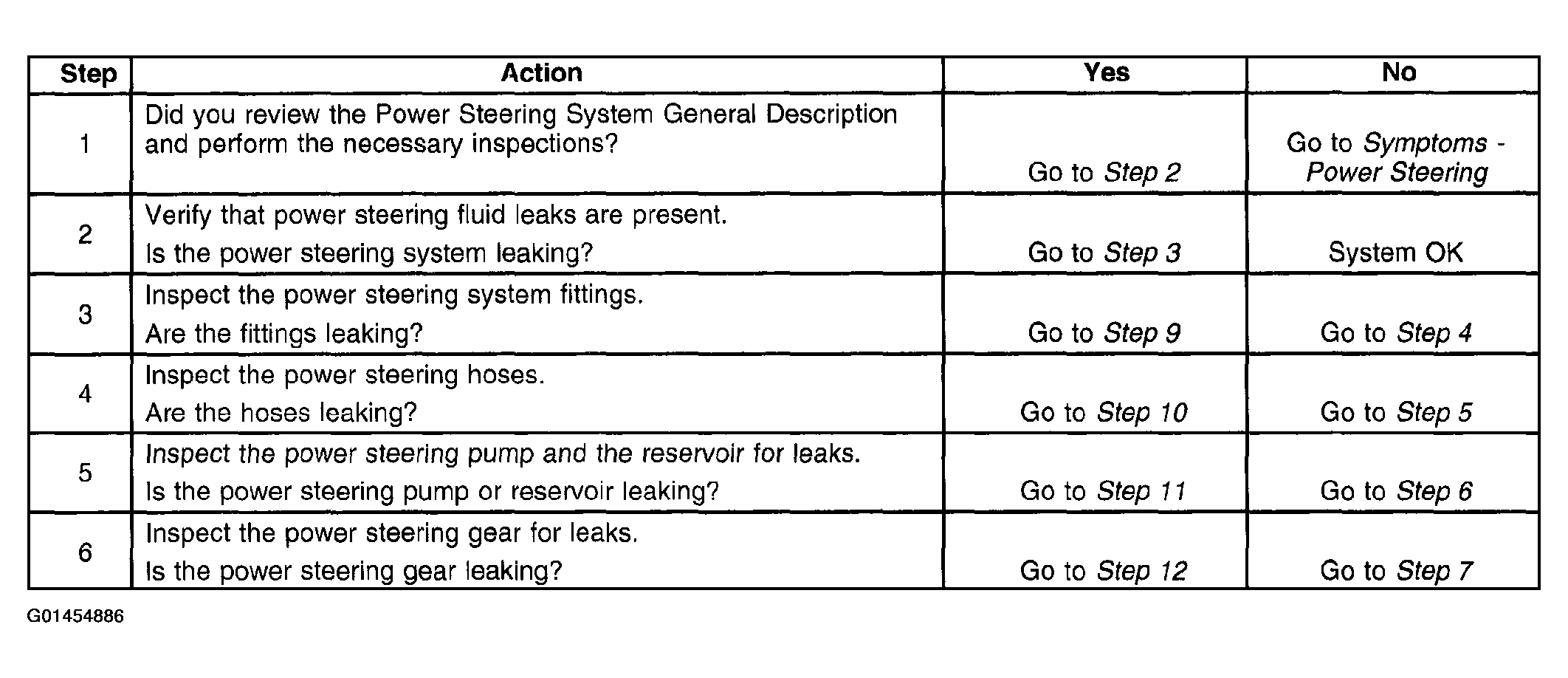

Fig 1: Power Steering Fluid Leaks Test Procedure (Step 1-6)

Courtesy of GENERAL MOTORS CORP.

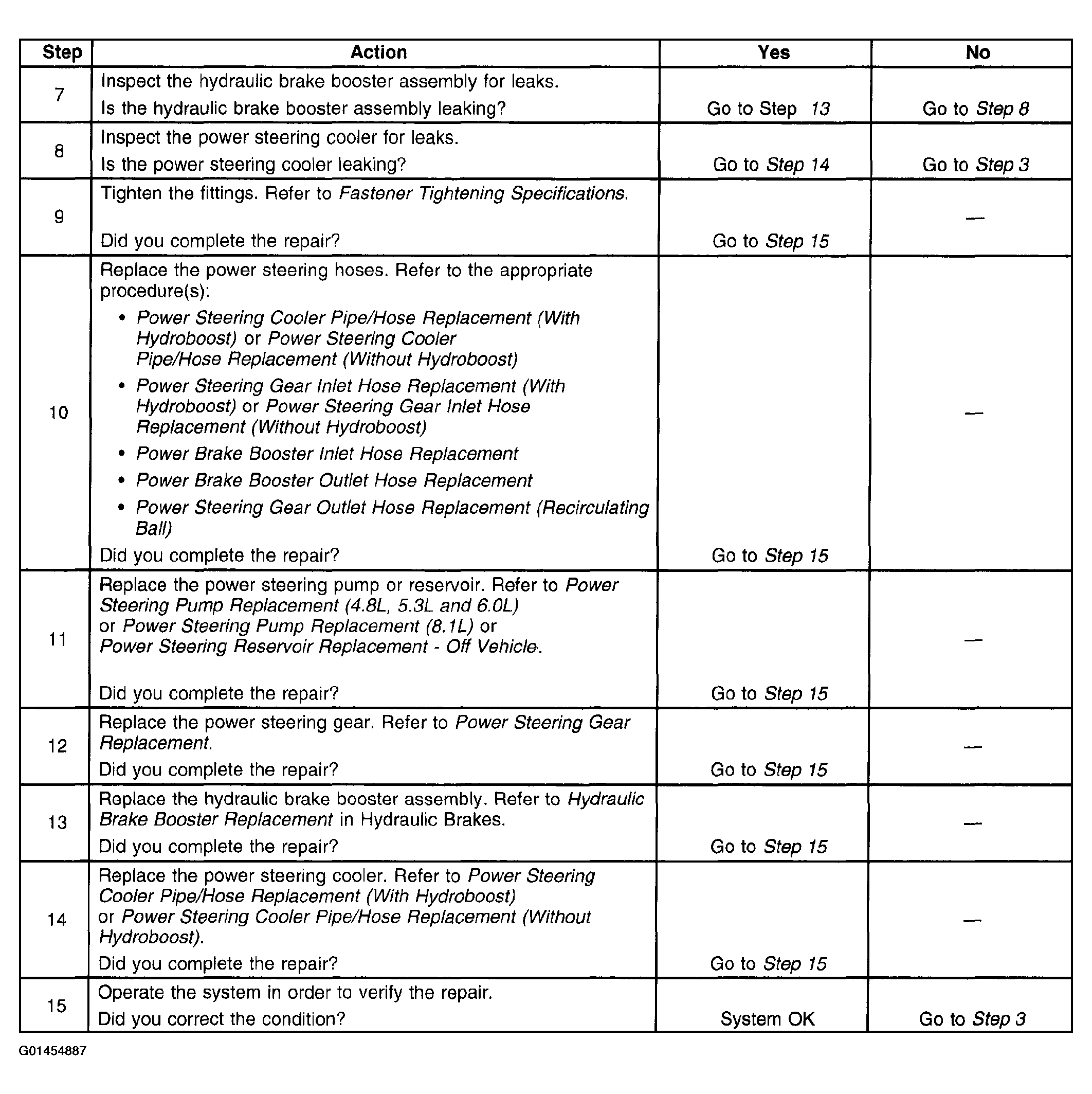

Fig 2: Power Steering Fluid Leaks Test Procedure (Step 7-15)

Courtesy of GENERAL MOTORS CORP.
