Installation Procedure
NOTE:
Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE
in Cautions and Notices.
- Route the hose in the same position the hose occupied prior to removal.

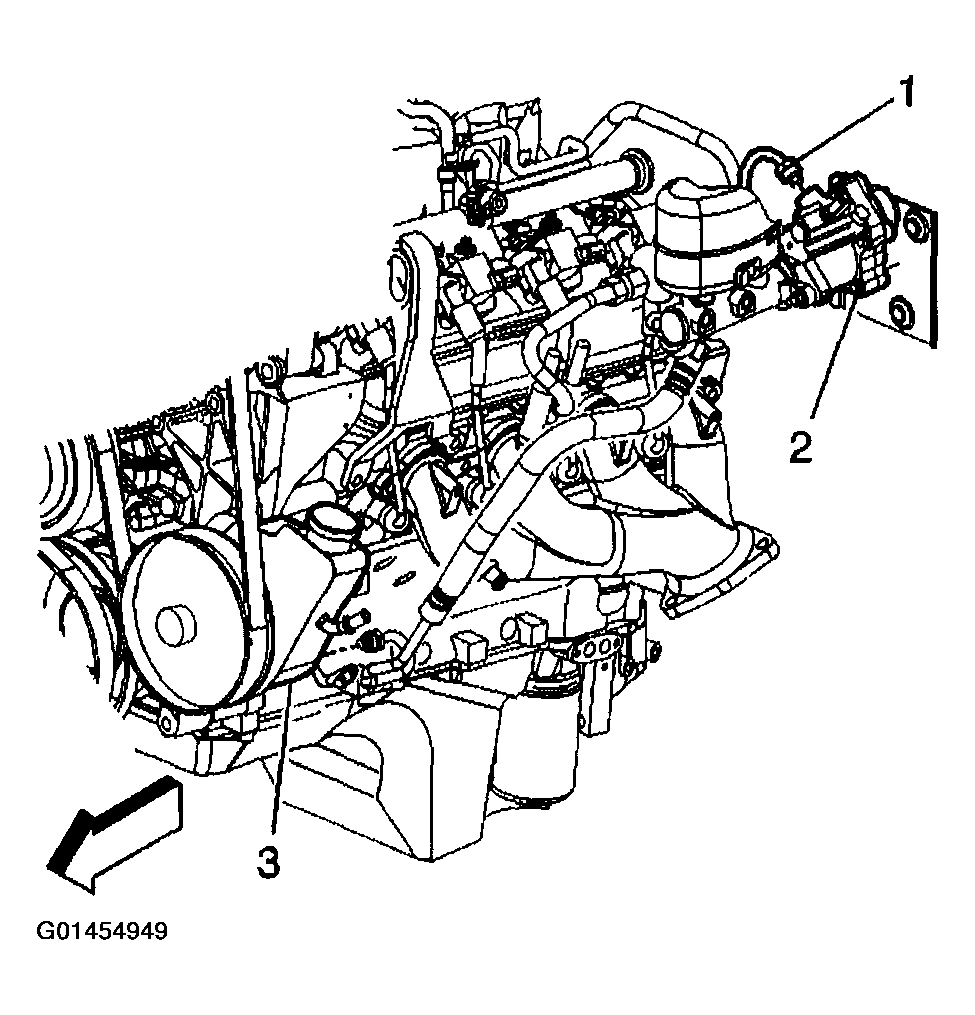

- Install the brake booster inlet hose (1) to the brake booster (2).NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the brake booster inlet hose to the power steering pump.
Tighten
Tighten the brake booster inlet hose fittings to 28 N.m (20 lb ft).
- Remove the drain pan from under the vehicle.
- Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .
