Removal Procedure

NOTE: Refer to POWER STEERING HOSE DISCONNECTED NOTICE in Cautions and Notices.
  1. Install a drain pan under the vehicle.
  2. Remove the brake booster outlet hose (1) from the brake booster (2).
  3. Remove the clamp retaining the brake booster outlet hose to the power steering pump.
  4. Remove the brake booster outlet hose from the vehicle.

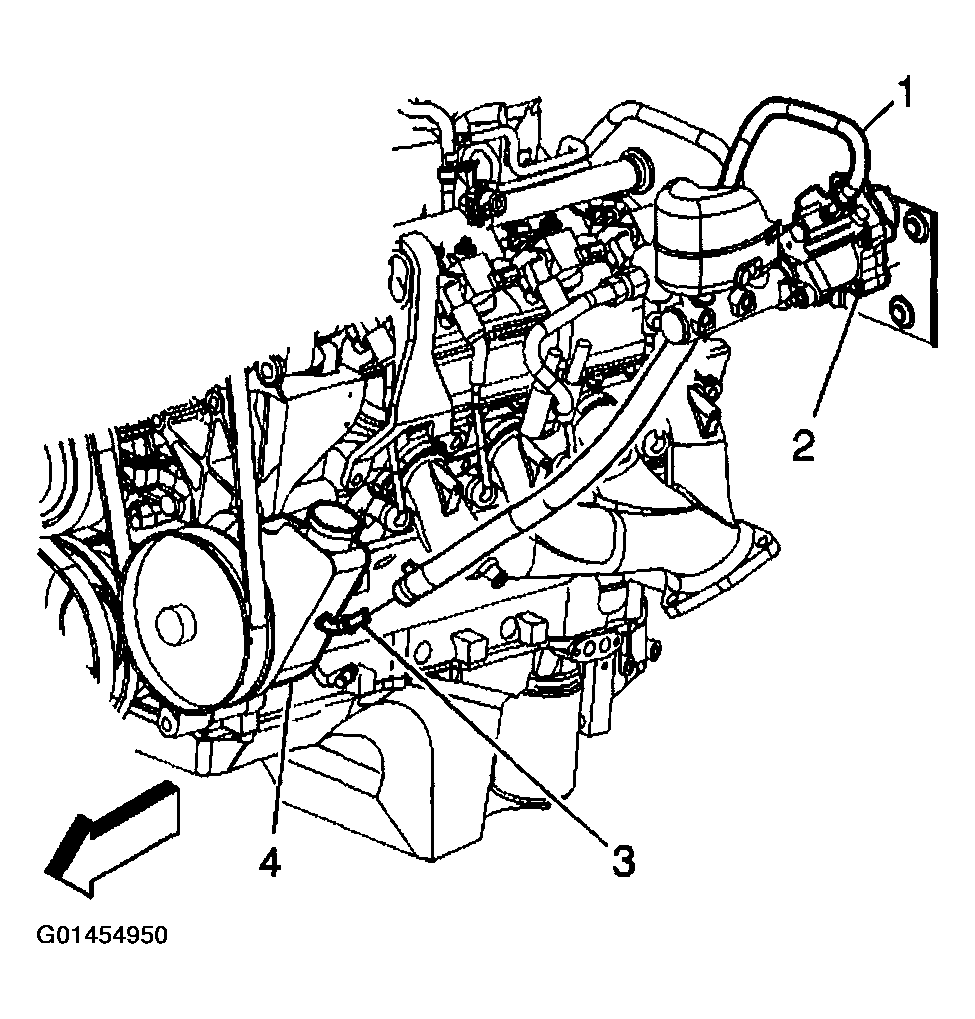

    Fig 1: Removing Brake Booster Outlet Hose
    G01454950Courtesy of GENERAL MOTORS CORP.
