Installation Procedure
NOTE:
Refer to INSTALLING HOSES WITHOUT TWISTS OR BENDS NOTICE
in Cautions and Notices.
- Route the hose in the same position the hose occupied prior to removal.

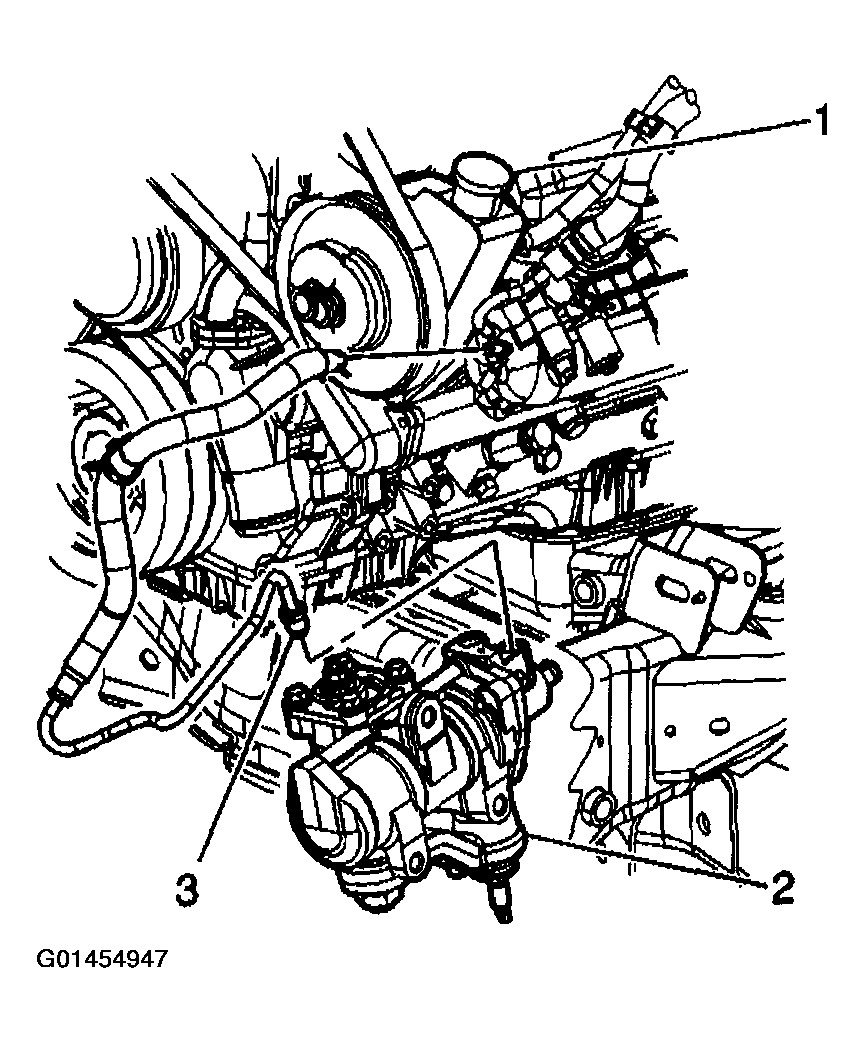

- Install the power steering gear outlet hose (3) to the power steering pump (1).
Position the clamp at the end of the hose.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices. - Install the power steering gear outlet hose to the power steering gear.
Tighten
Tighten the outlet hose fitting to 28 N.m (20 lb ft).
- Remove the drain pan from under the vehicle.
- Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM .
