Disassembly Procedure

Important:  Do not to damage the threads of the steering gear housing when removing the check valve.

Remove the check valve (1) from the steering gear housing (2) using a small screwdriver.

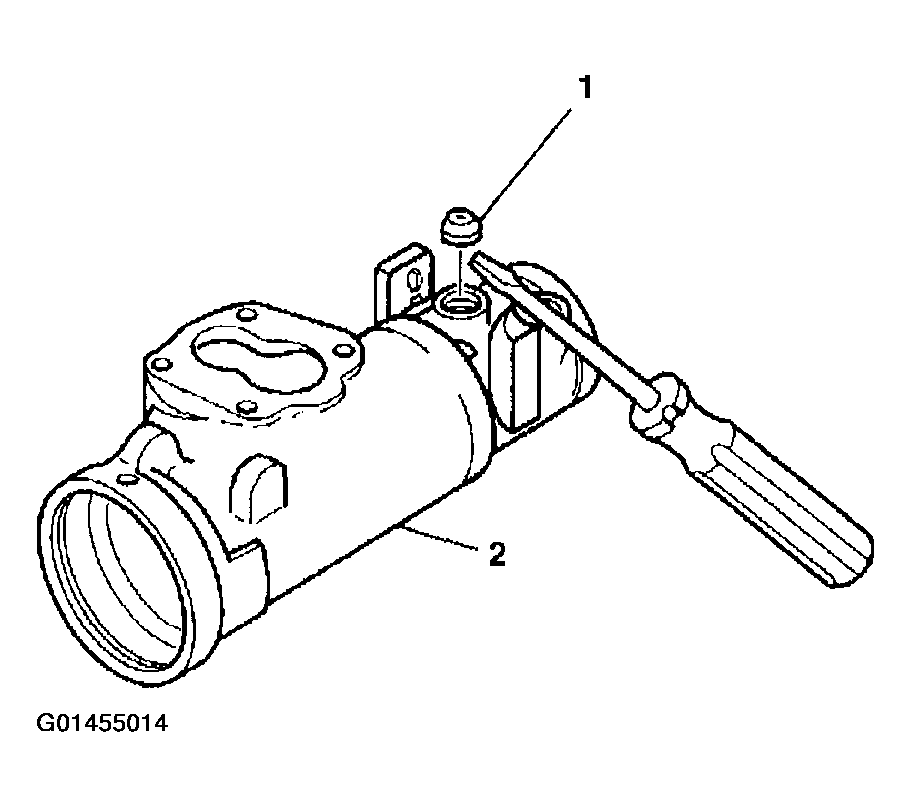

Fig 1: Removing Check Valve
G01455014Courtesy of GENERAL MOTORS CORP.
