Power Steering Pump Specifications
Power Steering Pump Specifications

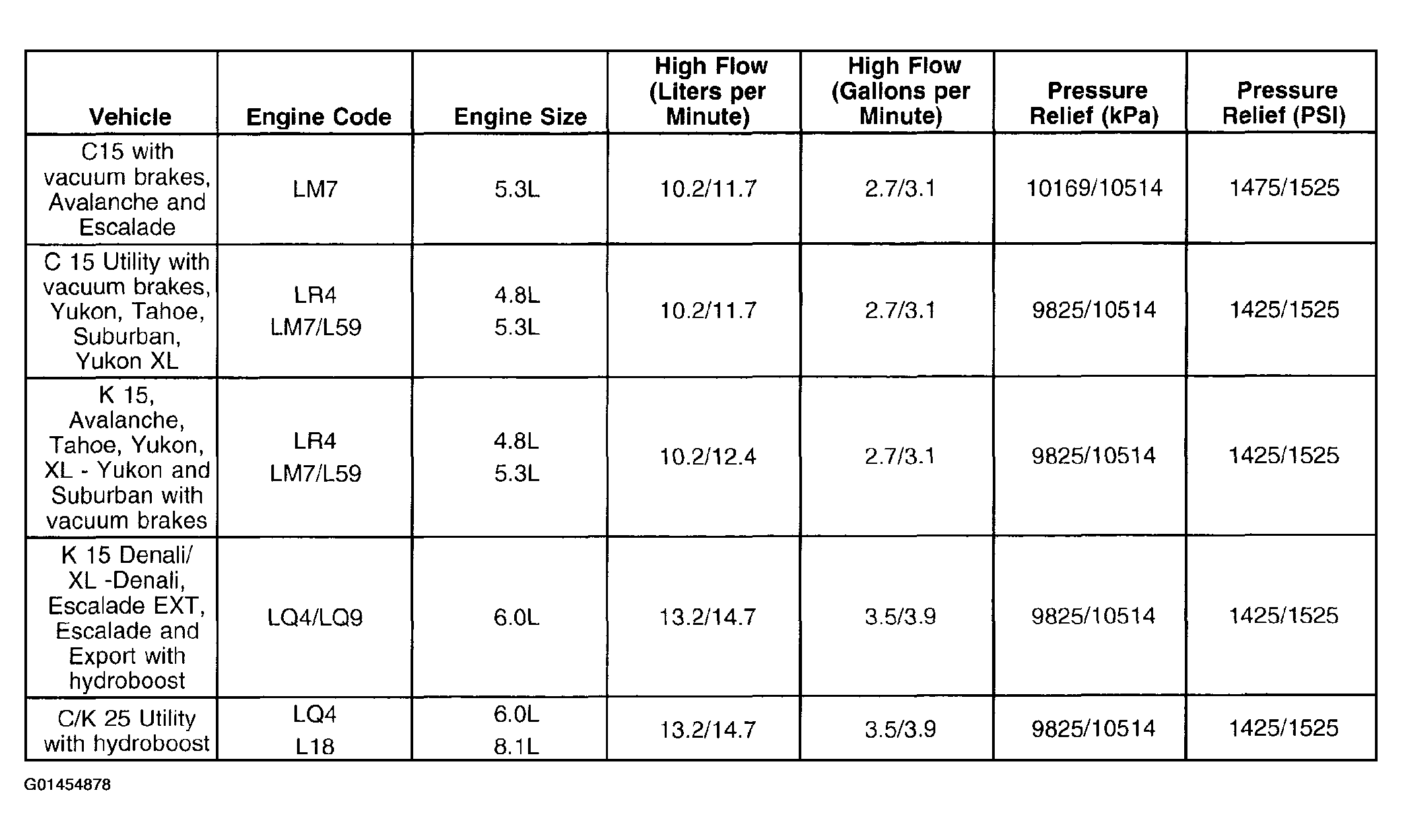

Fig 1: Power Steering Pump Specifications
Courtesy of GENERAL MOTORS CORP.
