Installation Procedure

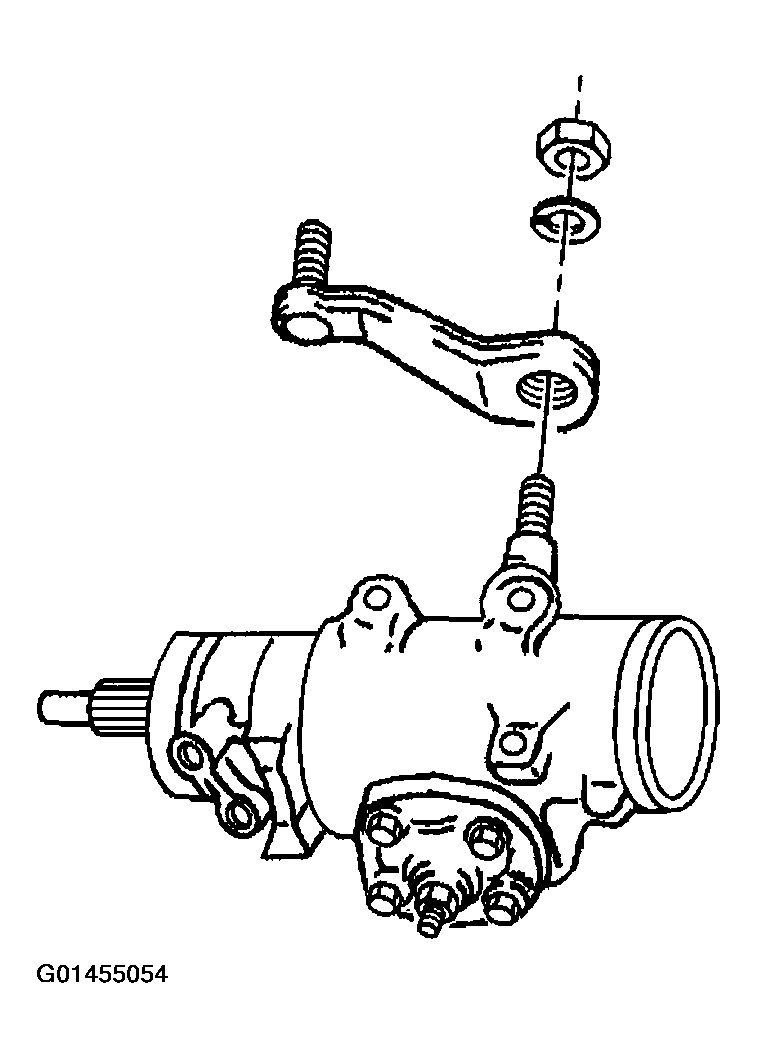

- Install the pitman arm to the power steering gear.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install a new pitman arm washer and nut.
Tighten
Tighten the nut to 250 N.m (184 lb ft).
- Remove the power steering gear from the vise.
- Install the power steering gear. Refer to POWER STEERING GEAR REPLACEMENT in Power Steering System.
- Lower the vehicle.
- Check the wheel alignment. Refer to MEASURING WHEEL ALIGNMENT (WITH REAR WHEEL STEERING) or MEASURING WHEEL ALIGNMENT (WITHOUT REAR WHEEL STEERING) in Wheel Alignment.
