Wheel Alignment Specifications

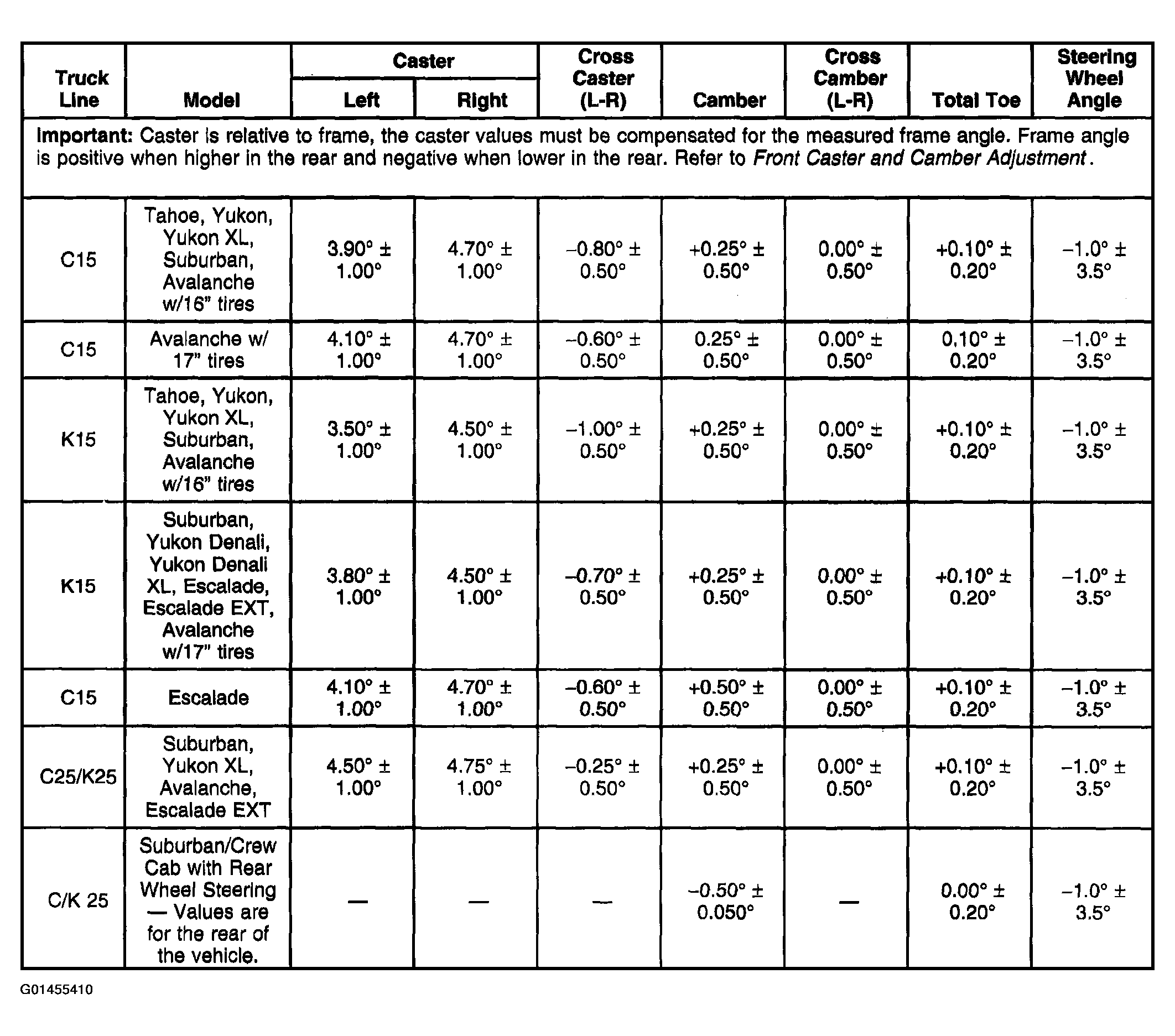

Fig 1: Wheel Alignment Specifications Table
G01455410Courtesy of GENERAL MOTORS CORP.
