Transfer Case - NVG 149-NP (Unit Repair)
›
Visual Identification
›
Transfer Case Disassembled View
Transfer Case Disassembled View

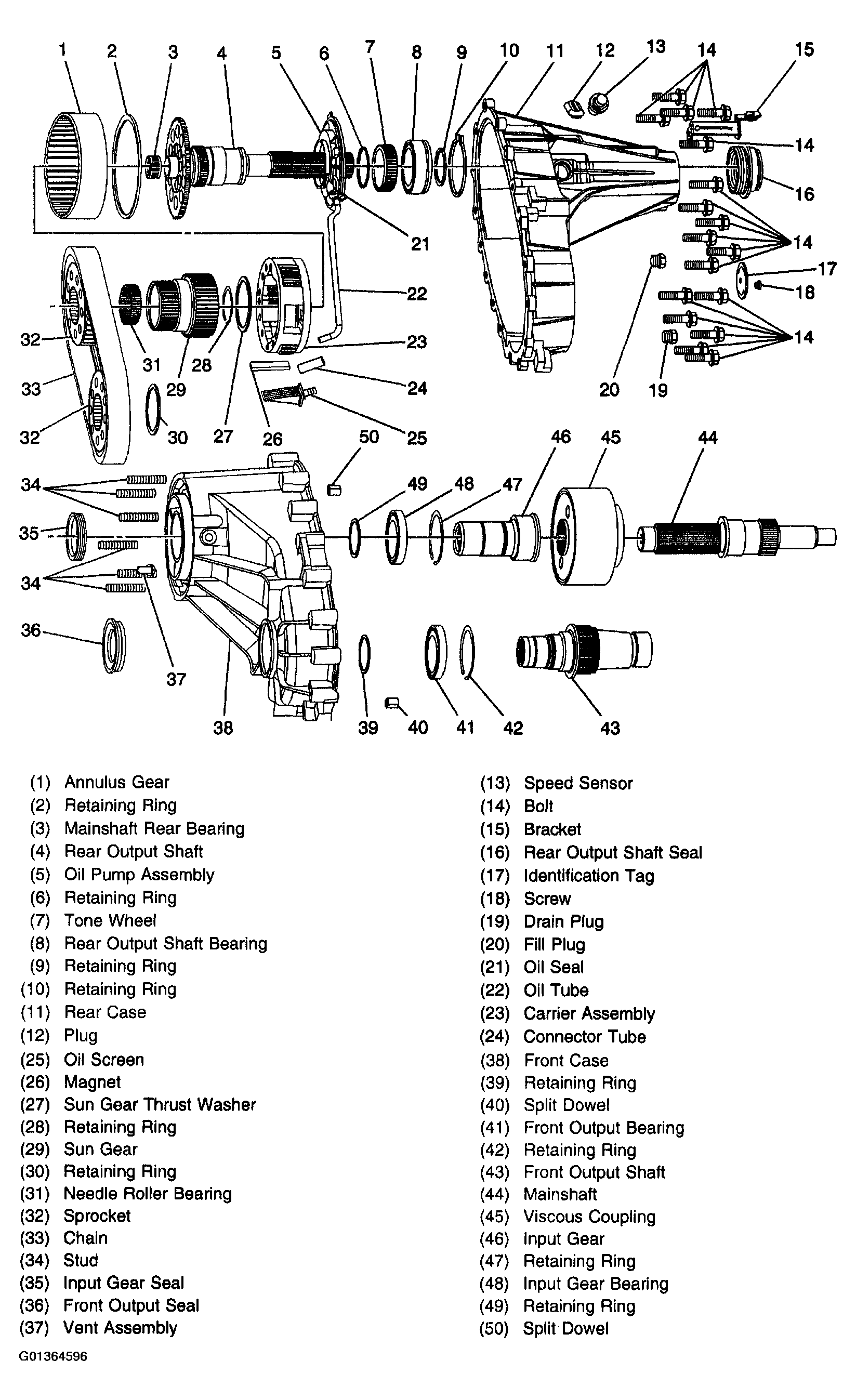

Fig 1: Exploded View Of Transfer Case Assembly
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
