Transfer Case Control Component Views

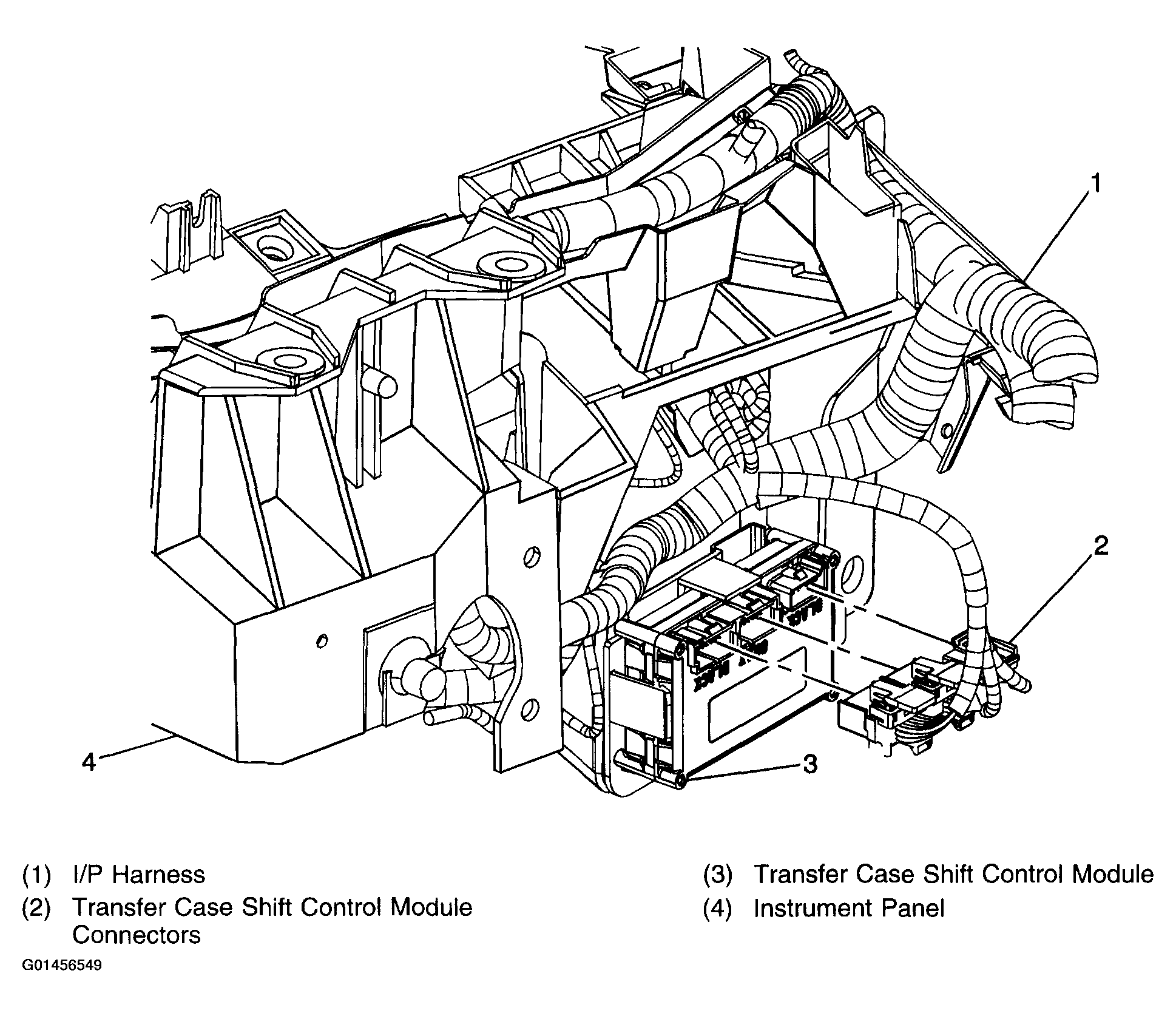

Fig 1: Transfer Case Control Component Views - Transfer Case Shift Control Module

Courtesy of GENERAL MOTORS CORP.

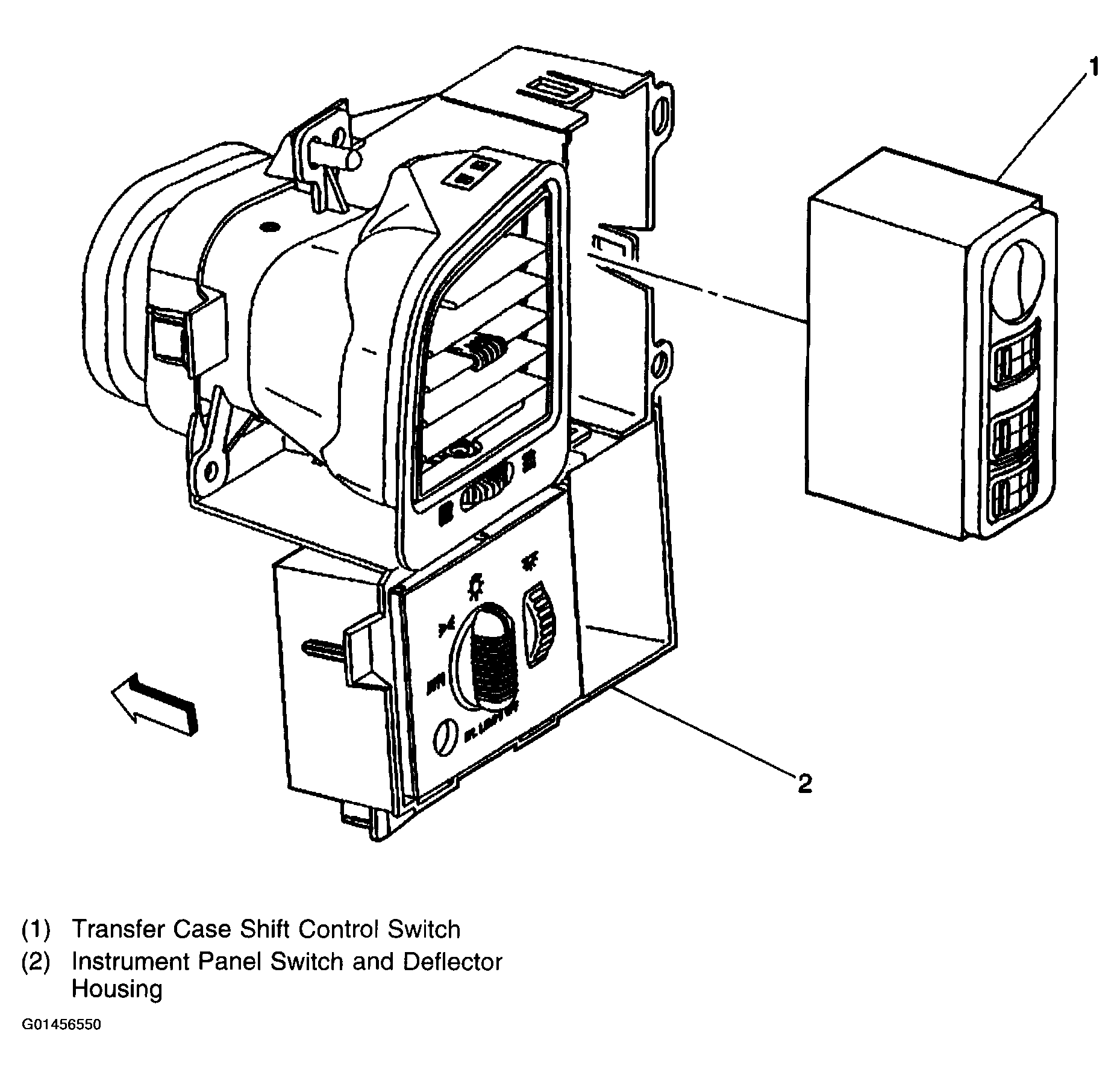

Fig 2: Transfer Case Control Component Views - Transfer Case Shift Control Switch

Courtesy of GENERAL MOTORS CORP.

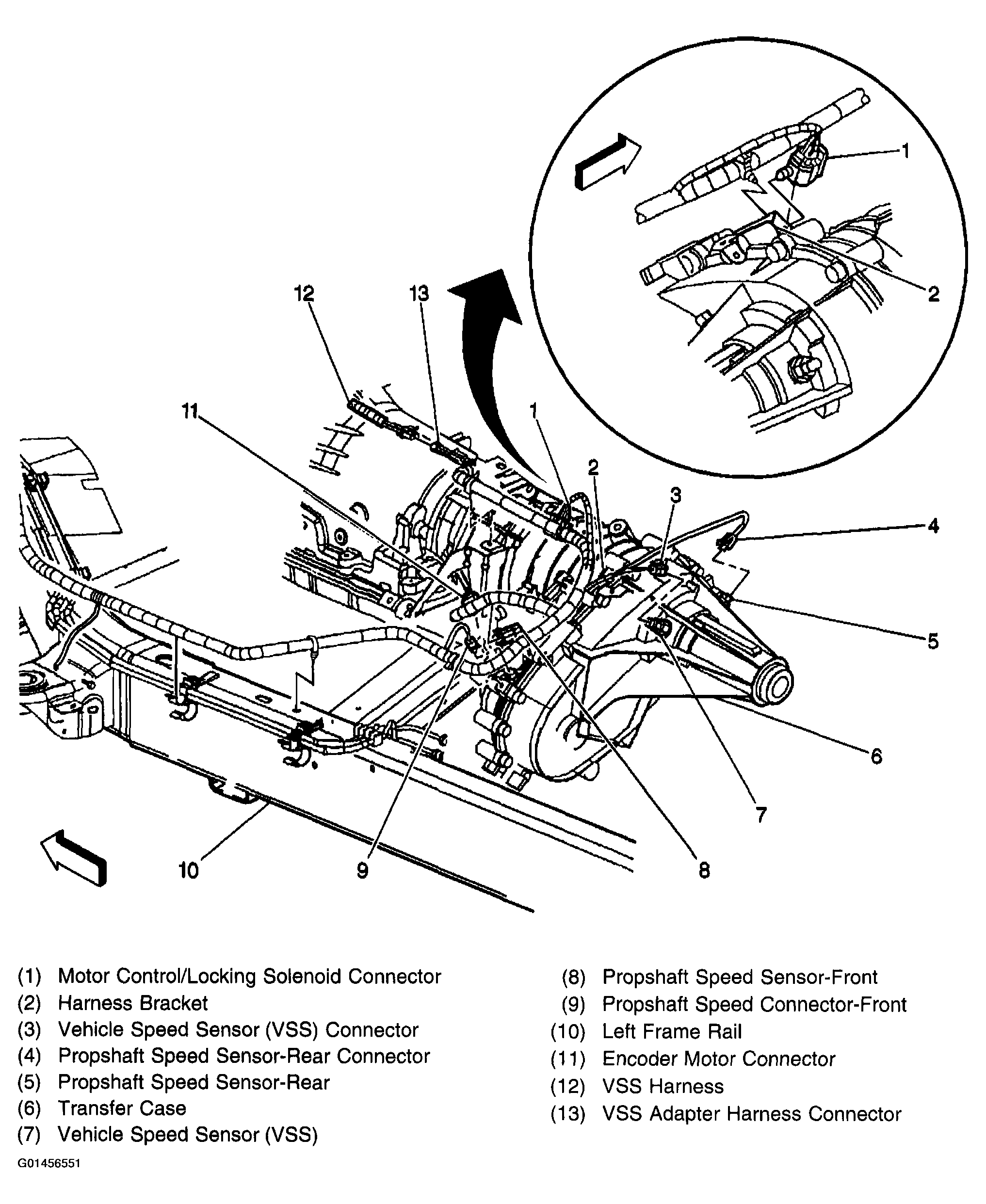

Fig 3: Transfer Case Control Component Views - Transfer Case (NVG 236/246 NP8)

Courtesy of GENERAL MOTORS CORP.

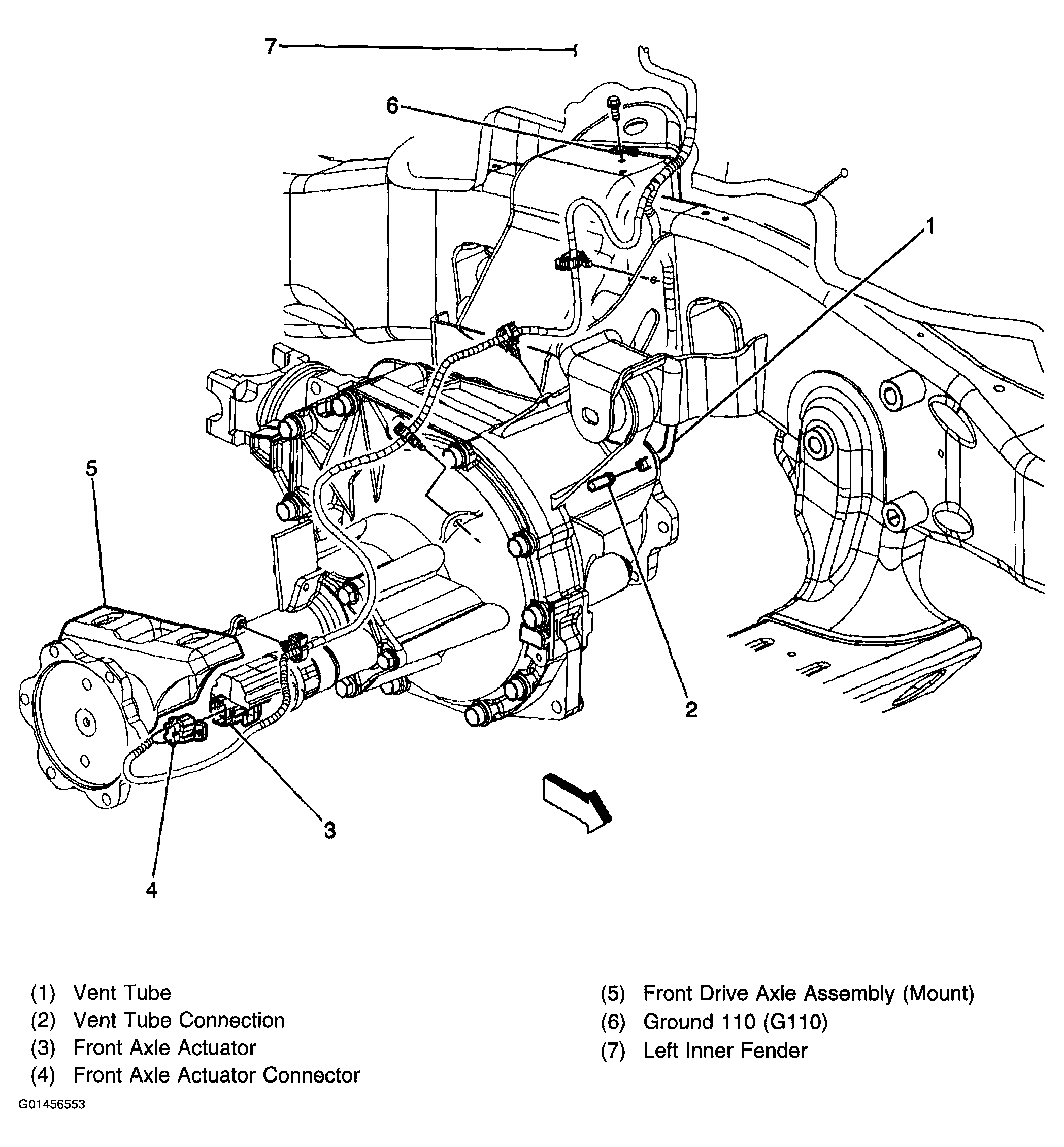

Fig 4: Transfer Case Control Component Views - Front Drive Axle Harness Routing (K25 Series)

Courtesy of GENERAL MOTORS CORP.

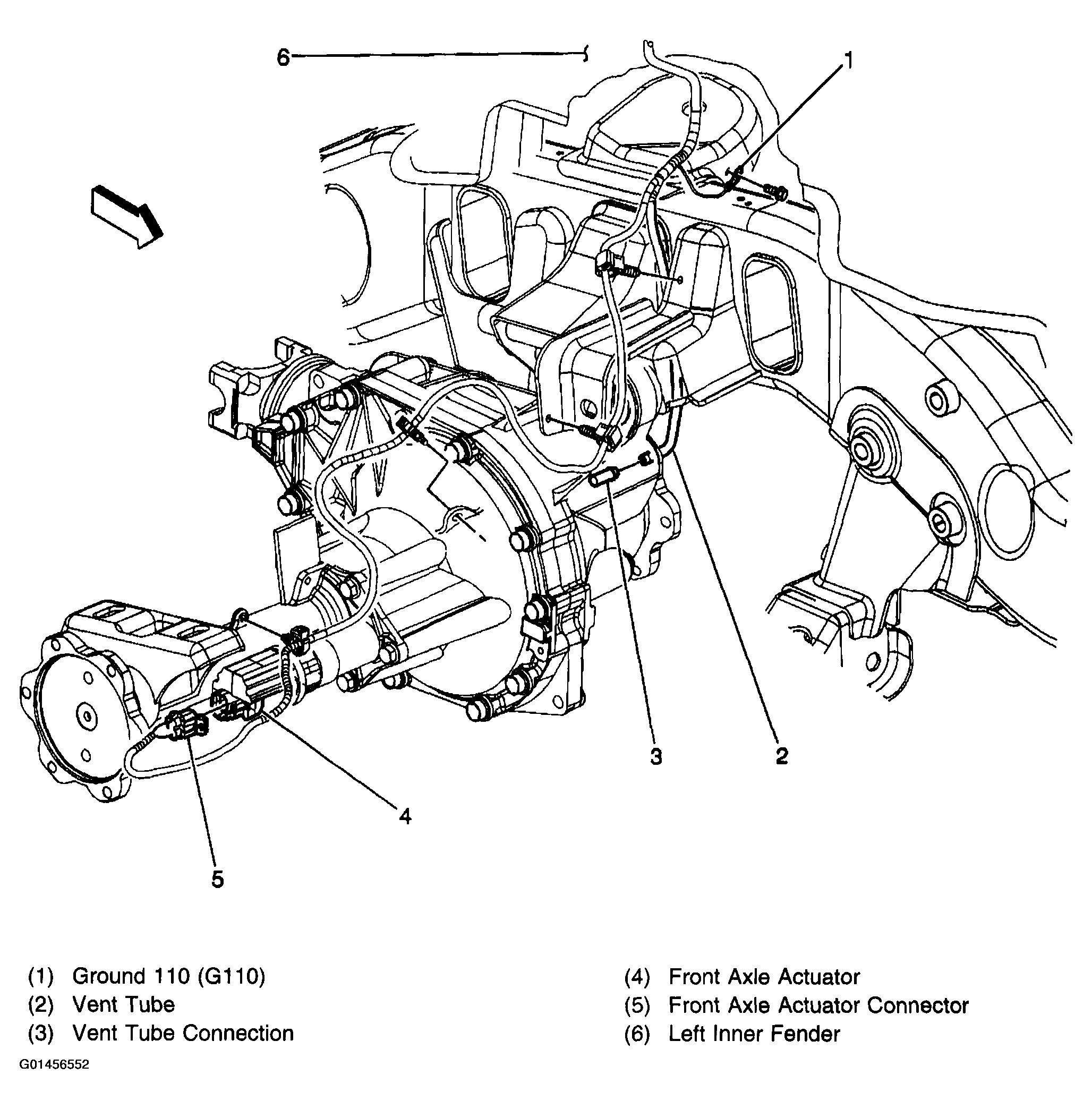

Fig 5: Transfer Case Control Component Views - Front Drive Axle Harness Routing (K15 Series)

Courtesy of GENERAL MOTORS CORP.
