Installation Procedure

  1. Position the selector switch close to the housing so the electrical connectors can be connected.

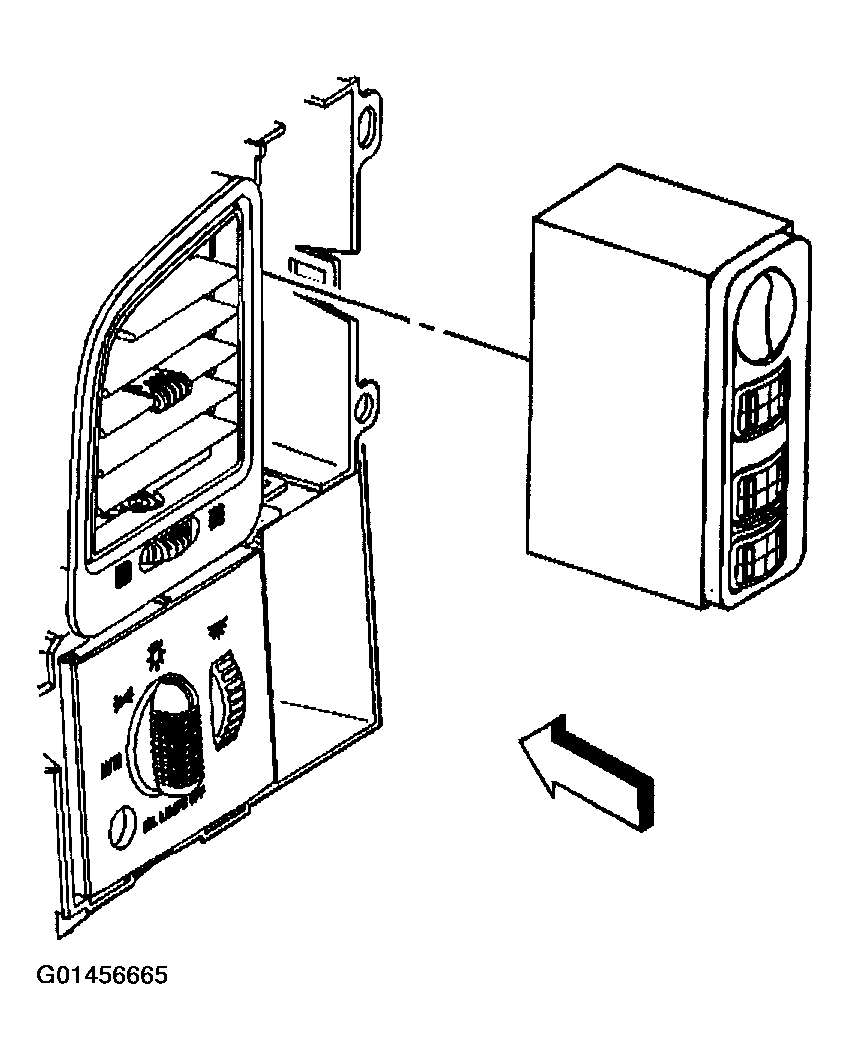

    Fig 1: Installing Selector Switch To Housing
    G01456665Courtesy of GENERAL MOTORS CORP.
  2. Connect the selector switch electrical connectors (2, 3).
  3. Slide the selector switch into the housing until the switch snaps into place.

    Important:  Make sure that the selector switch is seated properly in the housing before installing the IP cluster bezel.

  4. Install the I/P cluster bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages, and Console.

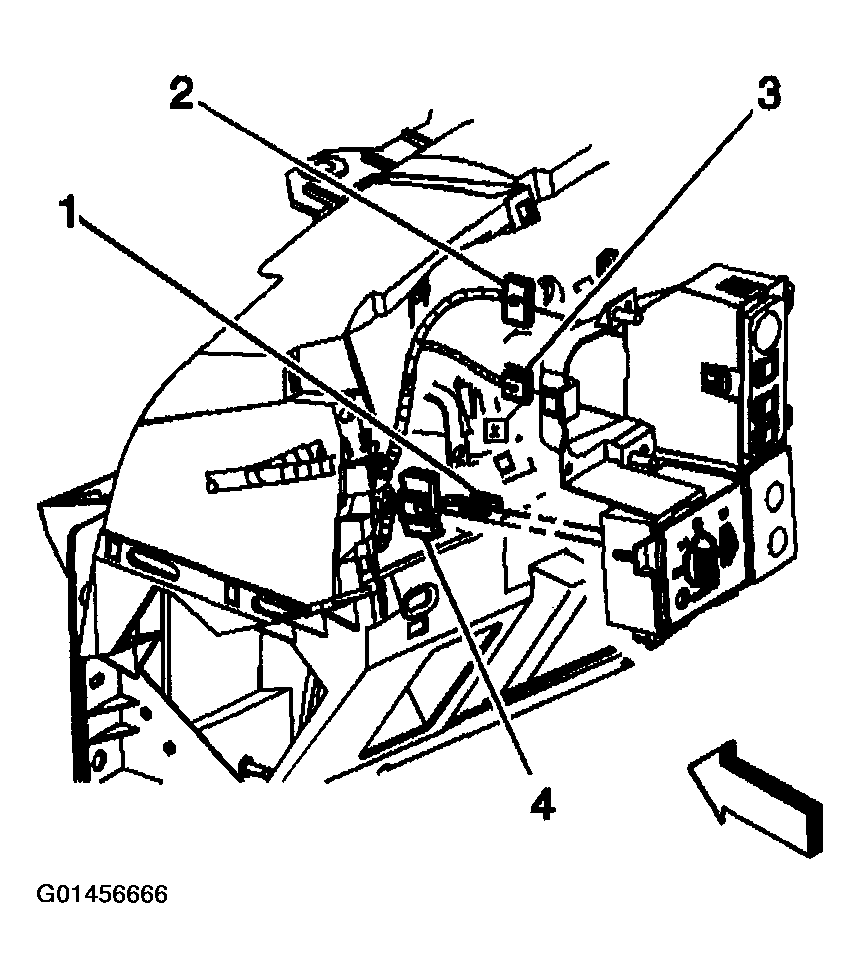

    Fig 2: Connecting Selector Switch Electrical Connectors
    G01456666Courtesy of GENERAL MOTORS CORP.
