Fastener Tightening Specifications

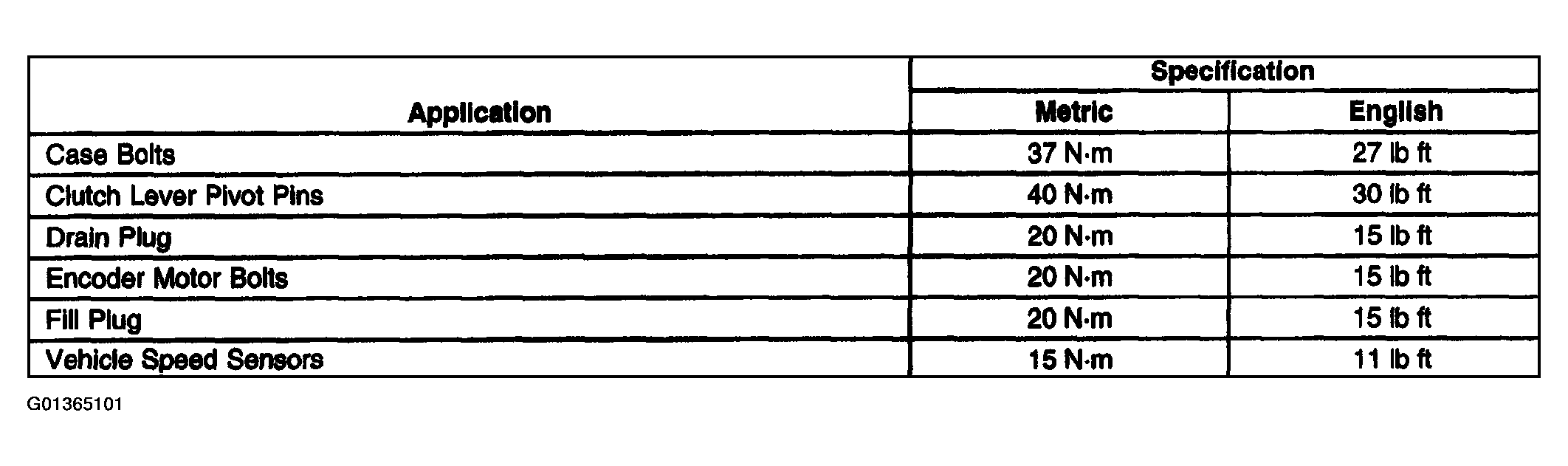

Fig 1: Fastener Torque Specifications
G01365101Courtesy of GENERAL MOTORS CORP.
