Transfer Case Disassembled View

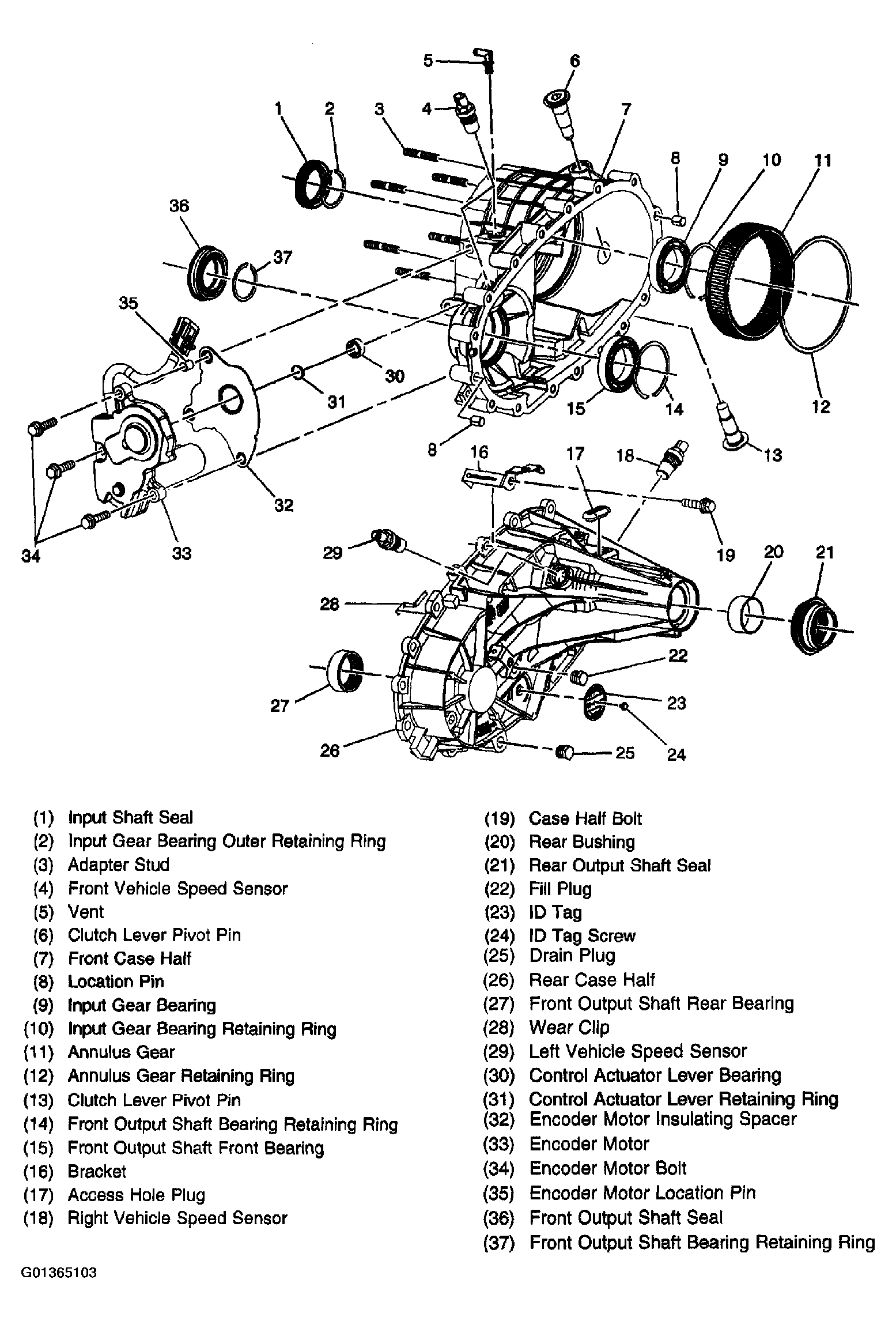

Fig 1: Case Half Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

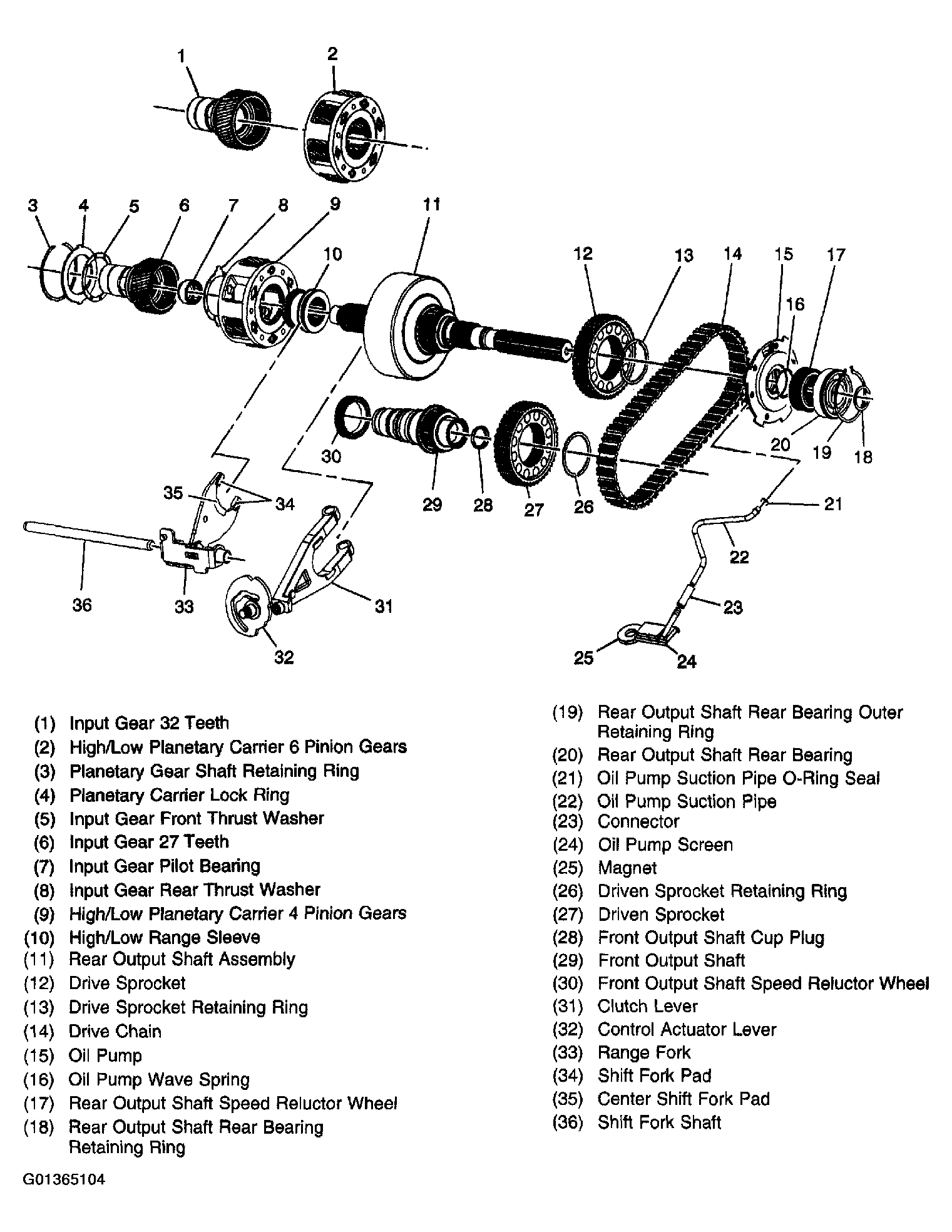

Fig 2: Internal Transfer Case Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

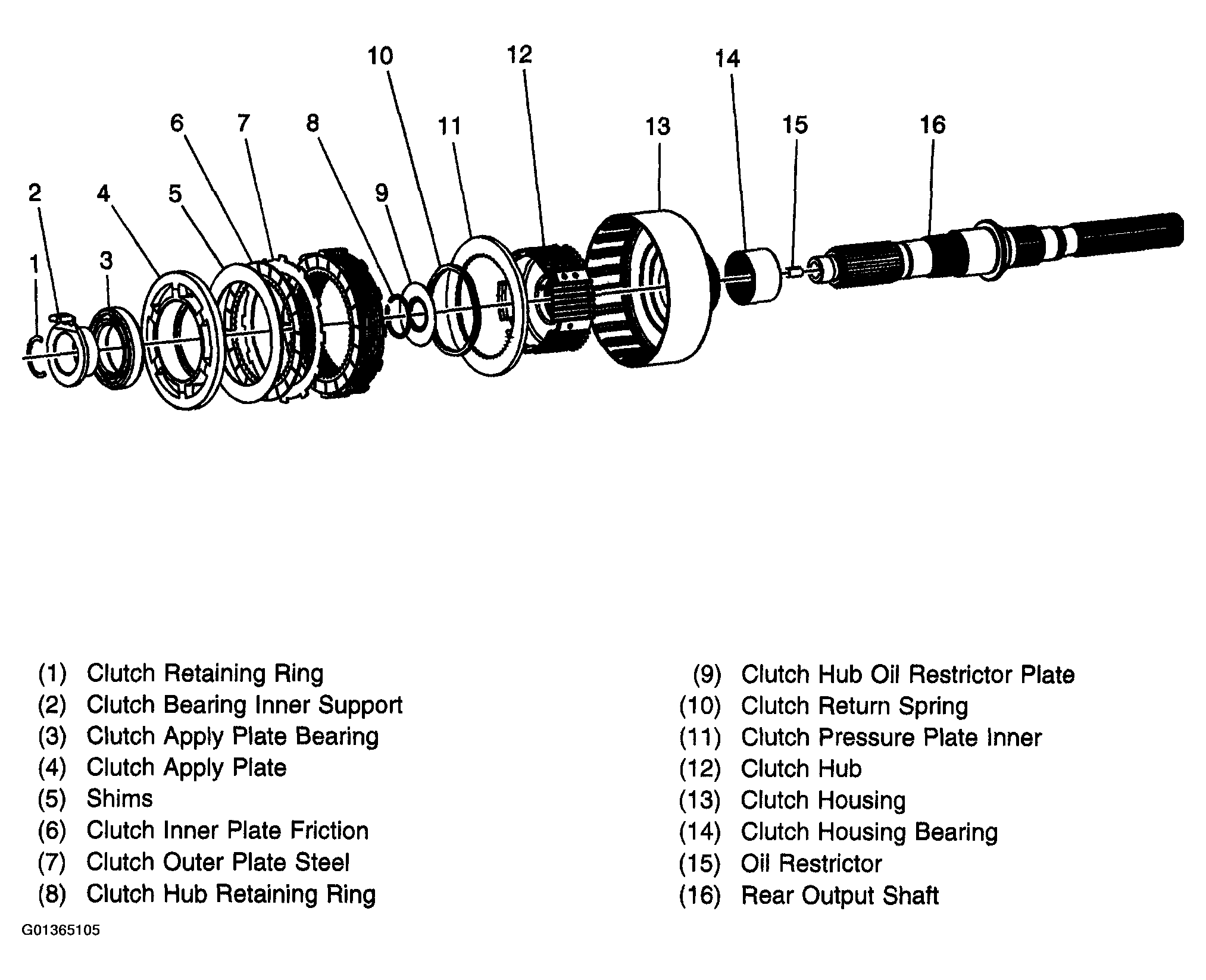

Fig 3: Clutch Components Disassembled View

Courtesy of GENERAL MOTORS CORP.
