Body Control System Component Views
›
Body Control Module Sub-System
Body Control Module Sub-System

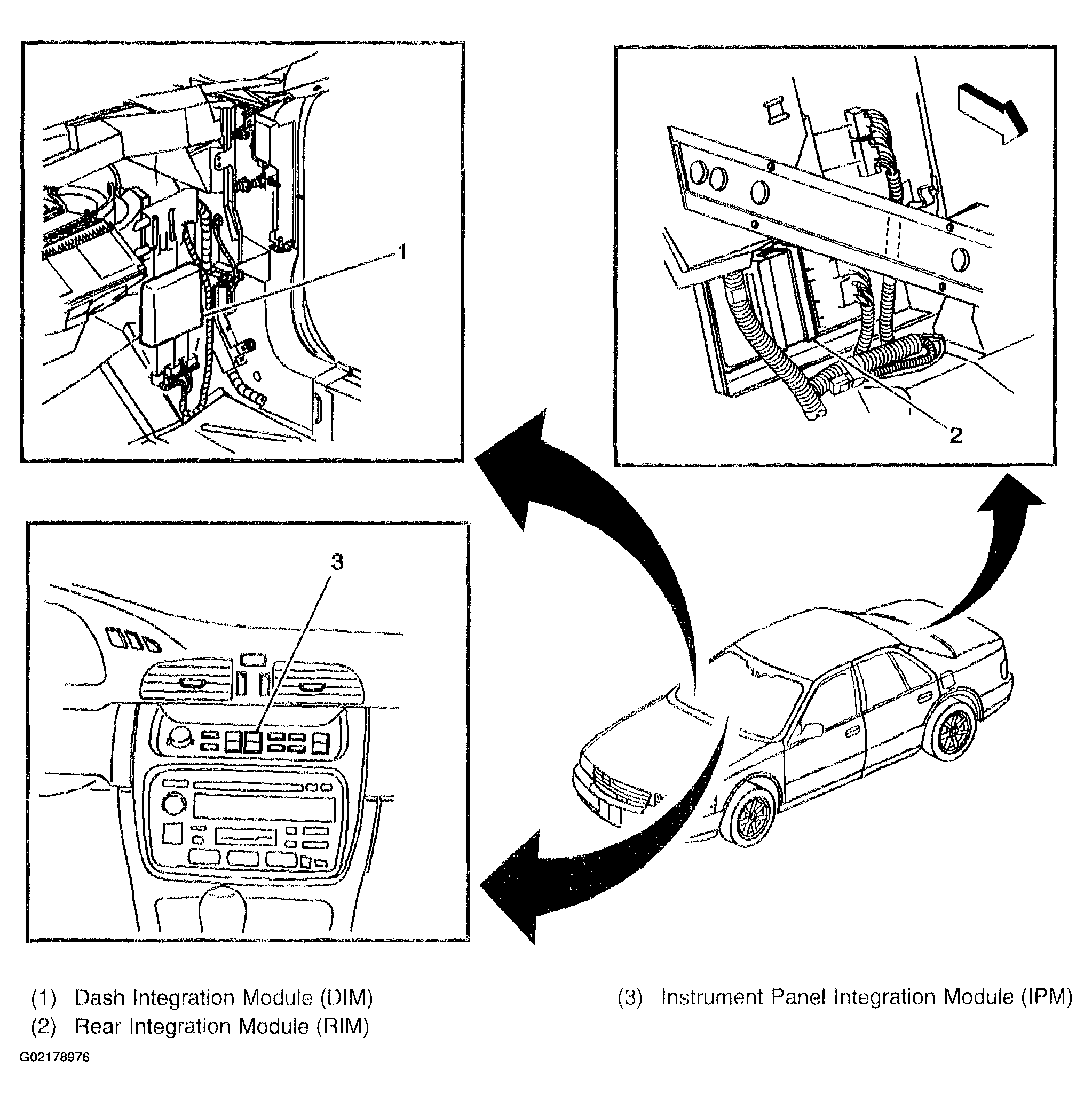

Fig 1: Body Control Module Sub-System Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
