Instrument Panel Integration Module (IPM) C2

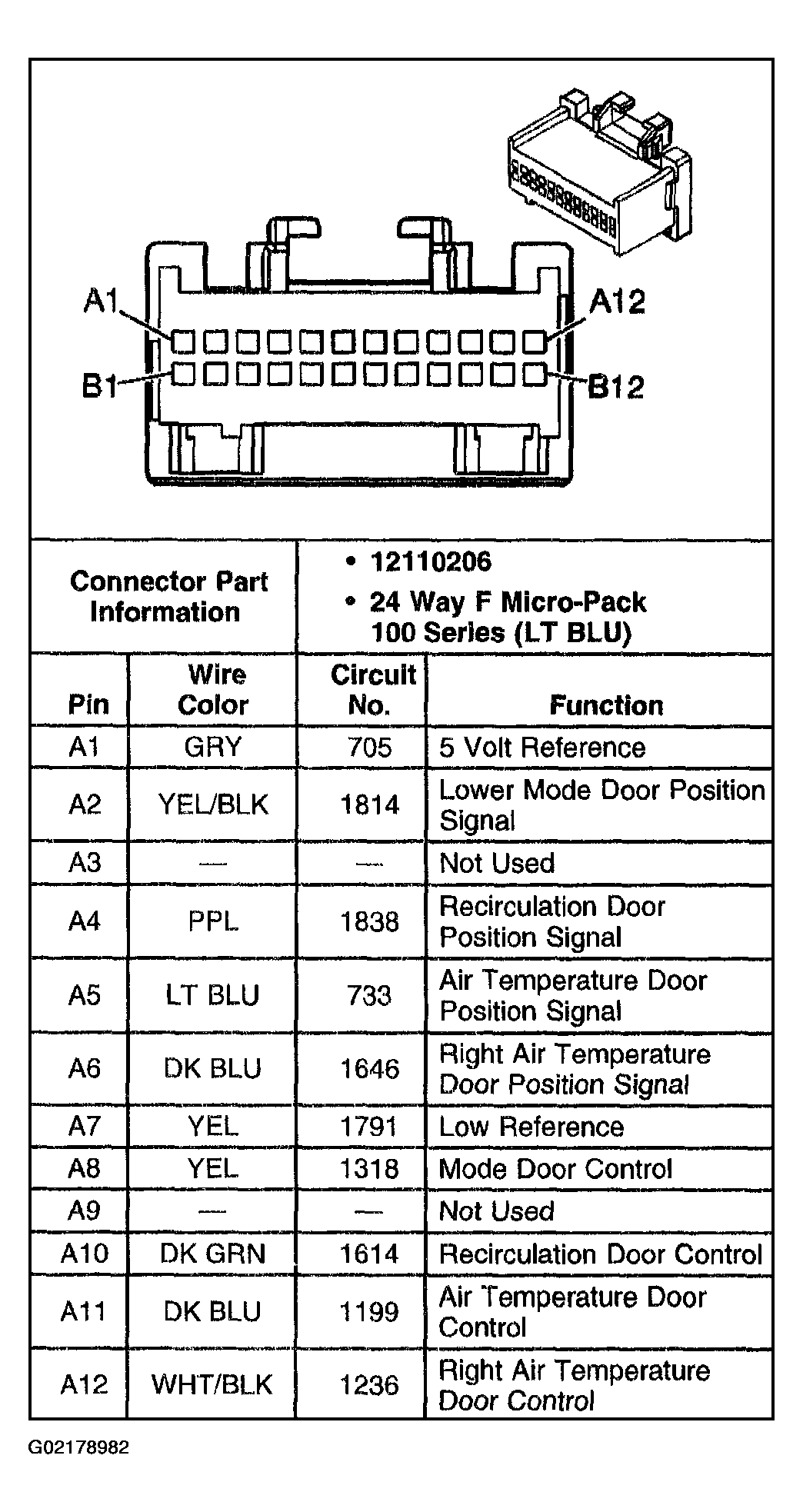

Fig 1: Instrument Panel Integration Module Connector End View (IPM) C2 (1 Of 2)
G02178982Courtesy of GENERAL MOTORS CORP.

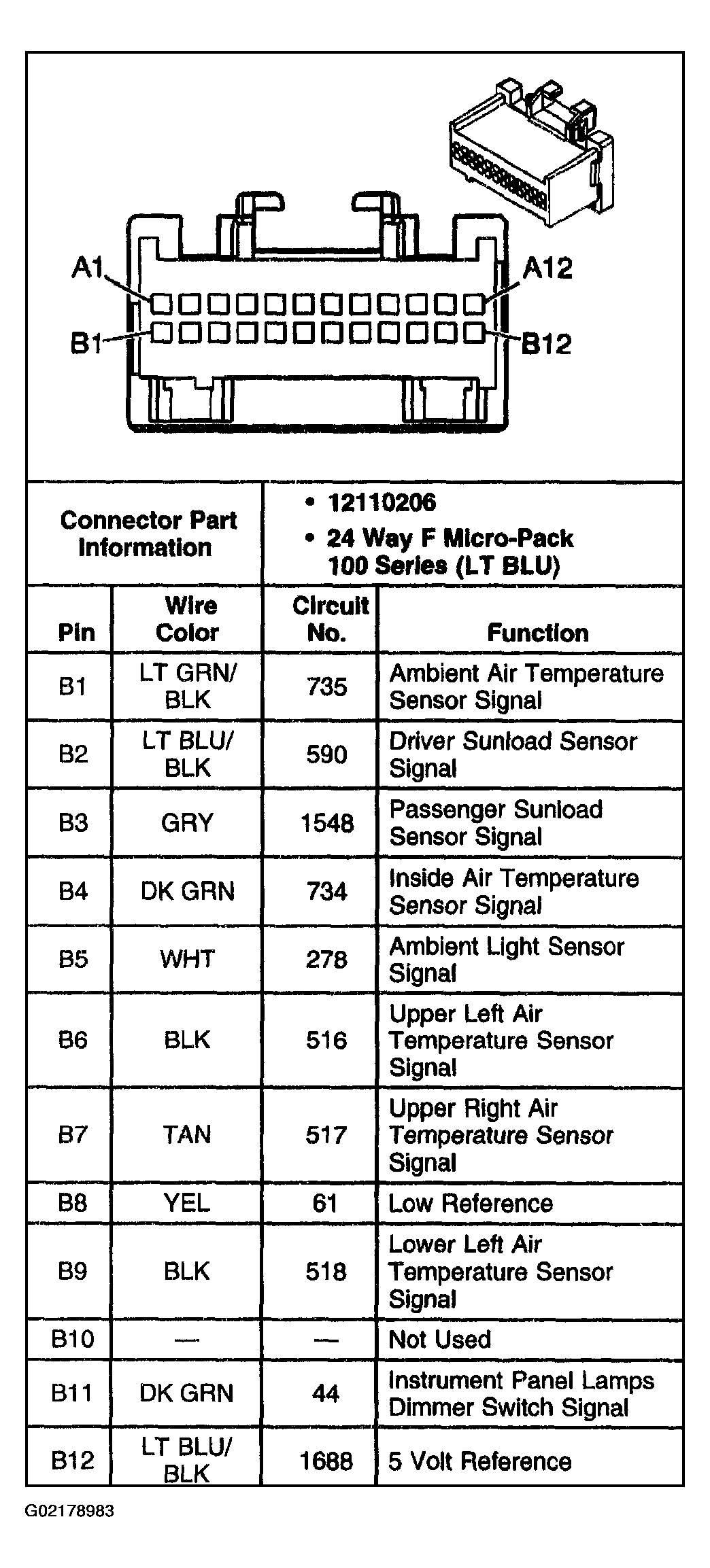

Fig 2: Instrument Panel Integration Module Connector End View (IPM) C2 (2 Of 2)
G02178983Courtesy of GENERAL MOTORS CORP.
